NSN 4730-00-159-8476 MS208195C, MS20819-5C, MS208195J
Product Details | TUBE FITTING FLARED SLEEVE

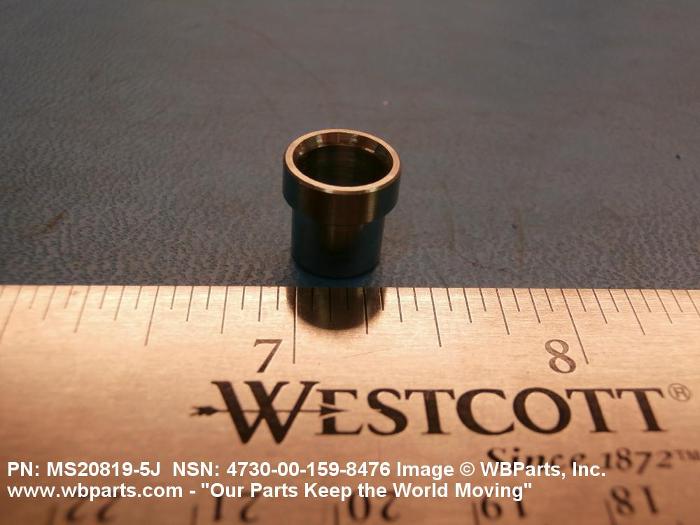

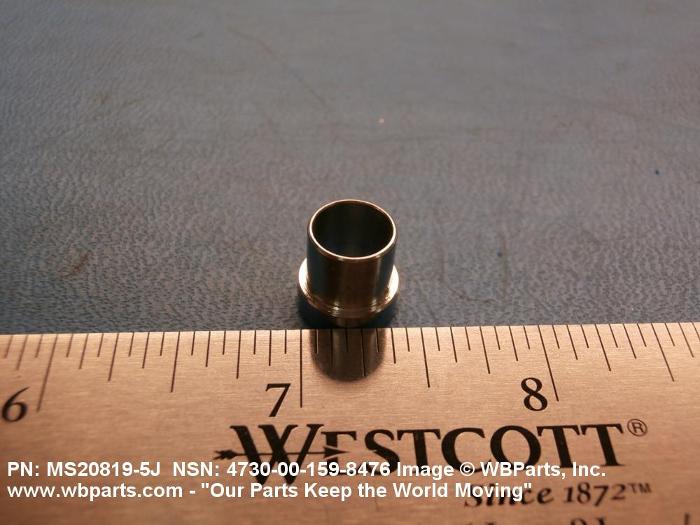

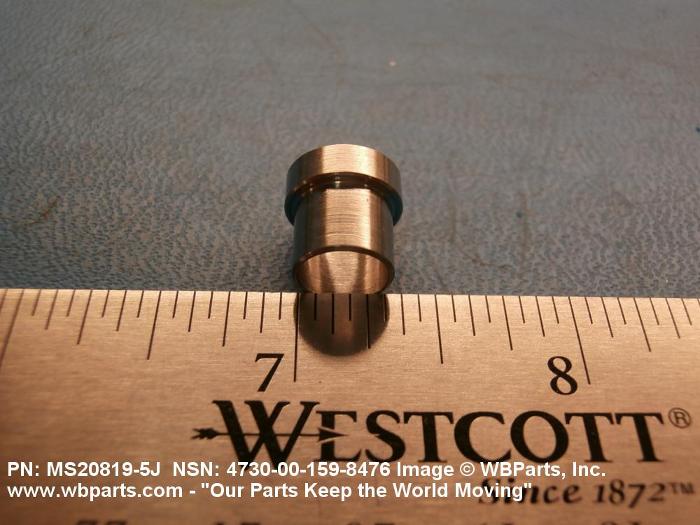

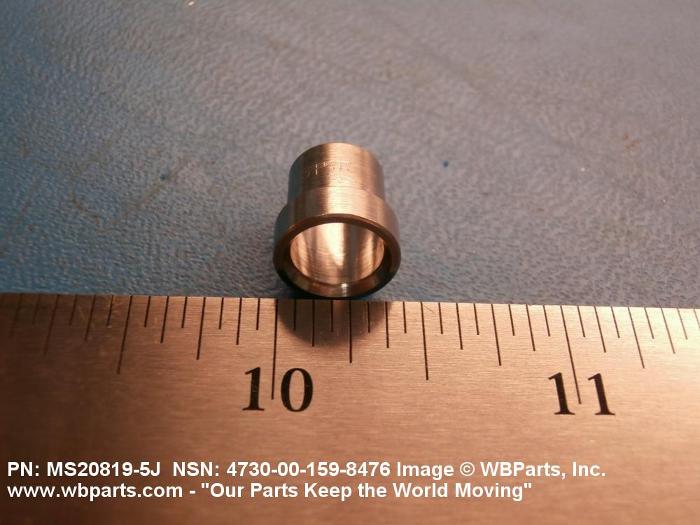

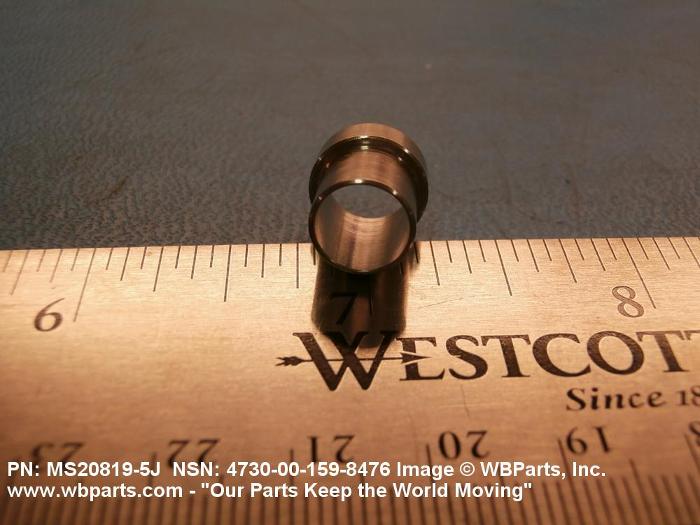

4730-00-159-8476 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS208195C, MS20819-5C, MS208195J, MS20819-5J, AN8195C, AN819-5C, AS5176J05, 4730-00-159-8476, 00-159-8476, 4730001598476, 001598476
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 OCT 1971 | 00-159-8476 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |
Drawings & Photos | NSN 4730-00-159-8476
Demand History | NSN 4730-00-159-8476
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS5176J05 | 2025-11-314 | 50 | United States |
| MS208195J | 2025-11-314 | 50 | United States |
| 4730-00-159-8476 | 2025-06-171 | 1717 | DIBBS |
| 4730-00-159-8476 | 2025-06-160 | 1717 | DIBBS |
| 4730-00-159-8476 | 2021-05-133 | 2 | Taiwan |
| 4730-00-159-8476 | 2021-04-102 | 1515 | DIBBS |
| 4730-00-159-8476 | 2021-03-63 | 1236 | DIBBS |
| MS208195J | 2019-07-200 | 20 | Turkey |
| AS5176J05 | 2018-07-204 | 1 | US |
| 4730-00-159-8476 | 2018-07-201 | 2 | US |
| MS208195J | 2018-02-53 | 130 | US |
| 4730-00-159-8476 | 2016-04-113 | 2 | United States |
| AS5176J05 | 2015-12-351 | 4 | Spain |
| MS20819-5J | 2014-01-29 | 100 | United States |
| MS208195J | 2012-12-354 | 100 | United States |
| MS208195J | 2012-10-293 | 84 | CN |
| AS5176J05 | 2012-06-160 | 105 | IN |
| 4730-00-159-8476 | 2011-12-340 | 160 | US |
| AN8195C | 2011-10-291 | 8 | United States |
| 4730-00-159-8476 | 2011-09-250 | 1100 | us |
| MS208195J | 2010-06-176 | 1 | Italy |
| 4730-00-159-8476 | 2009-10-293 | 2283 | DIBBS |
| MS208195J | 2009-04-110 | 200 | Italy |
Cross Reference | NSN 4730-00-159-8476
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN819-5C | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS5176J05 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20819-5C | 14397 | FABER ENTERPRISES, INC. |
| MS20819-5C | 22995 | CROWN FITTING CO INC |
| MS20819-5C | 71563 | COLLINS ENGINEERING CORP |
| MS20819-5J | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
