NSN 4730-00-196-9580 AN81660, AN816-60, AN8166D
Product Details | PIPE TO BOSS STRAIGHT ADAPTER
4730-00-196-9580 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a pipe or pipe fitting to a boss or boss fitting in a straight line on items such as tanks, housing, valve fittings, or the like. See also ADAPTER BUSHING and COUPLING, PIPE.
Part Alternates: AN81660, AN816-60, AN8166D, AN816-6D, AS4842/1, AS48421, AS5194 D 06 04, AS5194D0604, F21816D6, MILF5509, MIL-F-5509, Z00.N7730061334, Z00N7730061334, 016410, 0164-10, 1016410, 10164-10, 105P8, 2136926D, 213692-6D, 4730-00-196-9580, 00-196-9580, 4730001969580, 001969580
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-196-9580 | 22674 ( ADAPTER, STRAIGHT, PIPE TO BOSS ) |

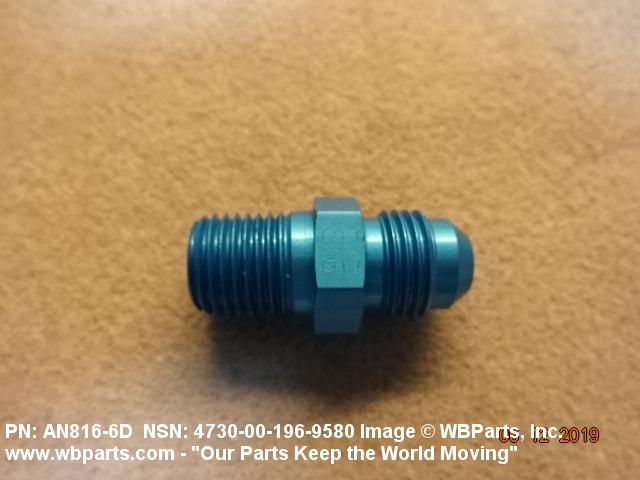

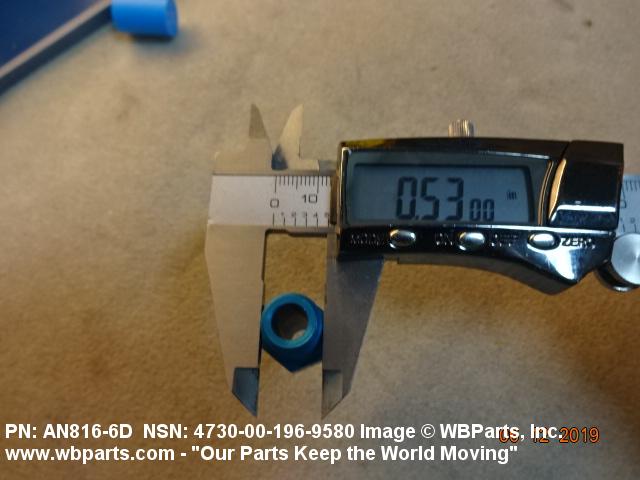

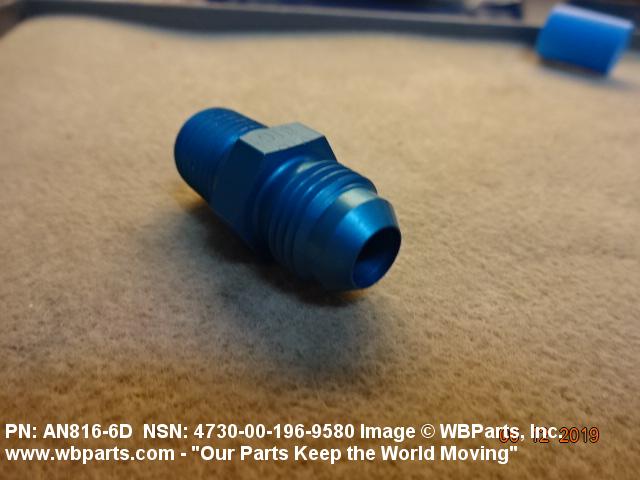

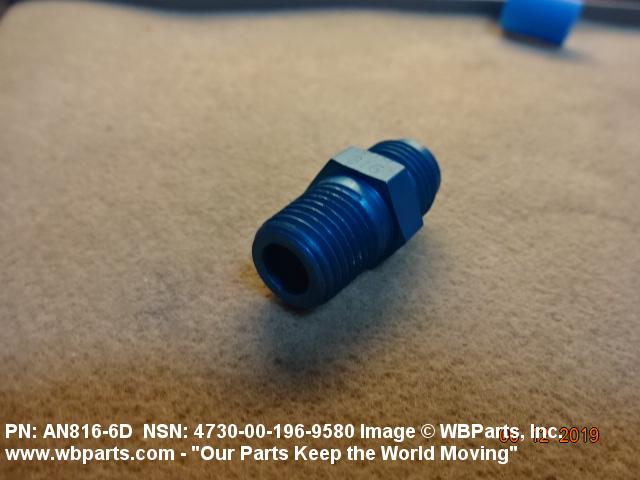

Drawings & Photos | NSN 4730-00-196-9580
Demand History | NSN 4730-00-196-9580
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8166D | 2025-10-304 | 250 | United States |
| AS48421 | 2025-04-106 | 1 | France |
| AN8166D | 2025-01-31 | 300 | United States |
| AN8166D | 2025-01-02 | 10 | HK |
| AN8166D | 2024-08-222 | 200 | United States |
| AN8166D | 2024-01-25 | 150 | United States |
| AN8166D | 2023-12-348 | 123 | United States |
| AN8166D | 2023-12-348 | 123 | United States |
| AN8166D | 2023-09-249 | 200 | United States |
| AN8166D | 2023-08-226 | 1 | United States |
| AN8166D | 2022-04-108 | 20 | United States |
| 4730-00-196-9580 | 2022-03-76 | 50 | Philippines |
| AN8166D | 2021-01-11 | 11 | United States |
| AN8166D | 2020-08-225 | 133 | United States |
| AN8166D | 2020-07-183 | 5 | Netherlands |
| AN8166D | 2018-11-331 | 130 | United States |
| AN8166D | 2018-11-331 | 175 | United States |
| MILF5509 | 2018-07-201 | 6 | United States |
| 4730-00-196-9580 | 2018-06-170 | 2681 | DIBBS |
| 4730-00-196-9580 | 2017-07-191 | 1111 | DIBBS |
| 4730-00-196-9580 | 2017-06-180 | 1111 | DIBBS |
| 4730-00-196-9580 | 2017-04-93 | 593 | DIBBS |
| 4730-00-196-9580 | 2017-03-82 | 593 | DIBBS |
| AN8166D | 2016-10-302 | 30 | United States |
| AN8166D | 2016-08-243 | 10 | United States |
| AS48421 | 2015-05-132 | 1 | CA |
| AN8166D | 2011-09-269 | 1344 | United States |
| AN8166D | 2011-09-269 | 1344 | United States |
| AN8166D | 2011-08-227 | 8400 | US |
| AN8166D | 2010-09-272 | 36 | US |
| MILF5509 | 2009-10-301 | 1 | PK |
| AS5194D0604 | 2009-05-149 | 6 | United States |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-196-9580
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0164-10 | 0LX27 | WATTS AUTOMATIC CONTROL VALVE INC |
| 10164-10 | 0LX27 | WATTS AUTOMATIC CONTROL VALVE INC |
| 10164-10 | 59273 | MUESCO INC DBA MUESCO MALLAY INC |
| 105P8 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| 213692-6D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| AN816-60 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN816-6D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN816-6D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN816-6D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN816-6D | 14397 | FABER ENTERPRISES, INC. |
| AN816-6D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN816-6D | 22995 | CROWN FITTING CO INC |
| AN816-6D | 30974 | AEROFIT, LLC |
| AN816-6D | 59680 | B. & E. MANUFACTURING CO., INC. |
| AN816-6D | 64879 | CAL FITTINGS INC |
| AN816-6D | 66774 | PRECISION AIRCRAFT MACHINING COMPANY, INC. |
| AN816-6D | 71563 | COLLINS ENGINEERING CORP |
| AN816-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN816-6D | R1120 | SATAIR A/S |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5194 D 06 04 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5194D0604 | 59680 | B. & E. MANUFACTURING CO., INC. |
| F21816D6 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| Z00.N7730061334 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-196-9580
Technical Data | NSN 4730-00-196-9580
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B67B PLAIN 1ST END B81 FLARED W/GASKET SEAL 2ND END |
| THREAD SERIES DESIGNATOR | ANPT 1ST END UNJF 2ND END |

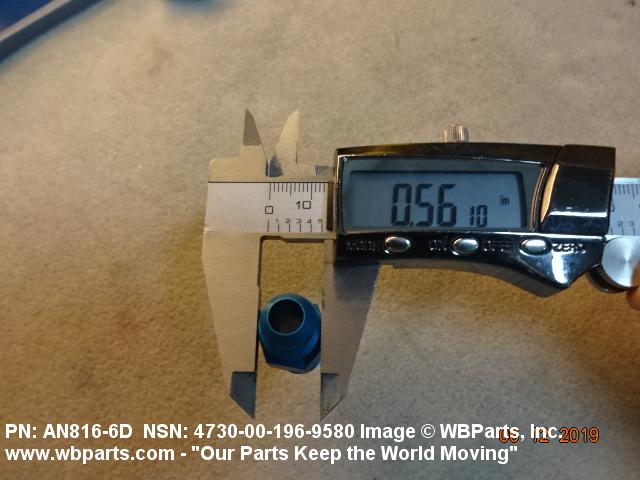

| NOMINAL THREAD SIZE | 0.250 INCHES 1ST END 0.562 INCHES 2ND END |
| THREAD CLASS | 3A 2ND END |

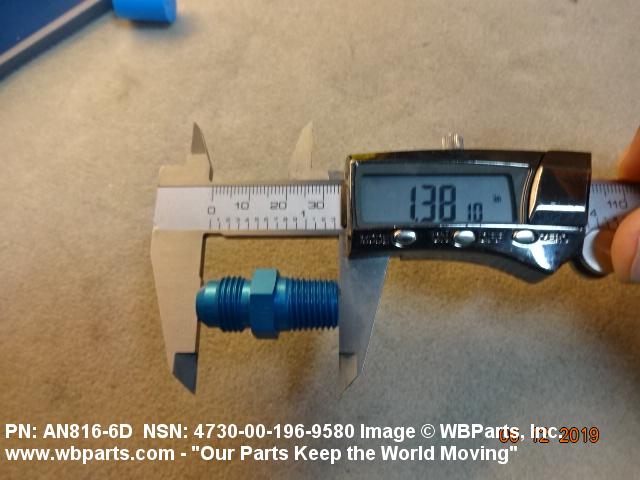

| NOMINAL OVERALL LENGTH | 1.375 INCHES |
| SPECIAL FEATURES | CENTER WRENCHING FACILITY |
| SPECIFICATION/STANDARD DATA | 88044-AN816 GOVERNMENT STANDARD AND 81343-AS4842/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | GRUMMAN A-10 ACFT |
Restrictions/Controls & Freight Information | NSN 4730-00-196-9580
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
