NSN 4730-00-202-8050 45C9272835, 45C9272-835, 00-202-8050
Product Details | LUBRICATING OIL CUP
4730-00-202-8050 An item designed to be driven or threaded into a machine part for the purpose of dispensing oil to a lubricating passage or duct, and to seal the passage or duct against dirt and moisture. The item does not have a transparent body, or contain a wick or needle to restrict or filter the flow.
Part Alternates: 45C9272835, 45C9272-835, 4730-00-202-8050, 00-202-8050, 4730002028050, 002028050
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-202-8050 | 03179 ( CUP, OIL, LUBRICATING ) |

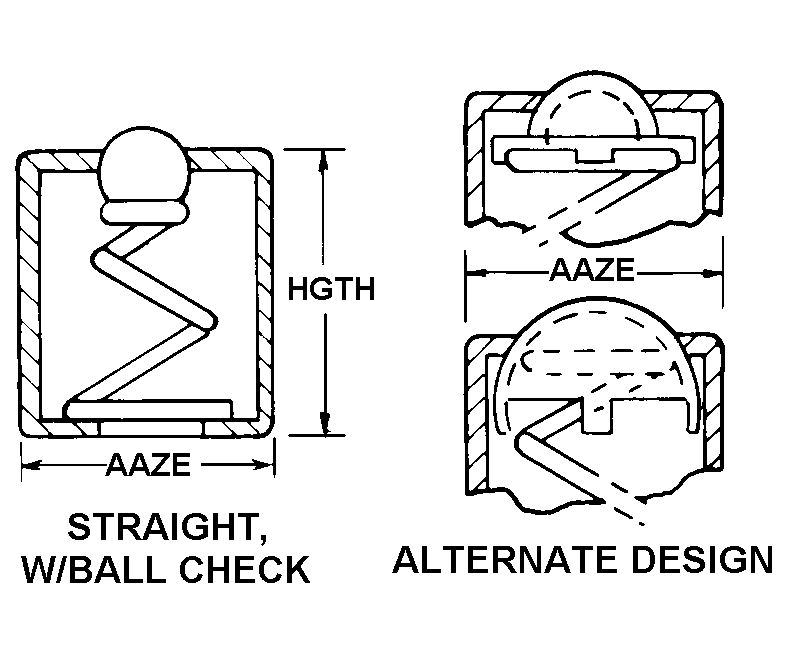

Drawings & Photos | NSN 4730-00-202-8050
Cross Reference | NSN 4730-00-202-8050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 45C9272-835 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-202-8050
Technical Data | NSN 4730-00-202-8050
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| STYLE DESIGNATOR | H16 STRAIGHT, W/BALL CHECK |
| SHANK DIAMETER | 0.375 INCHES NOMINAL |
| HEIGHT | 0.480 INCHES NOMINAL |
| OIL CAPACITY | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4730-00-202-8050
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 124520 | LUBRICATORS/GREASE CUPS NOI AUT |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-202-8050
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
