NSN 4730-00-202-9974 N92461A38, N92461A3-8, 5029-3/8
Product Details | SEDIMENT STRAINER
4730-00-202-9974 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: N92461A38, N92461A3-8, 5029-3/8, 502938, 4730-00-202-9974, 00-202-9974, 4730002029974, 002029974
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-202-9974 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-00-202-9974
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-202-9974
Related Products | NSN 4730-00-202-9974
Technical Data | NSN 4730-00-202-9974
| Characteristic | Specifications |
|---|---|

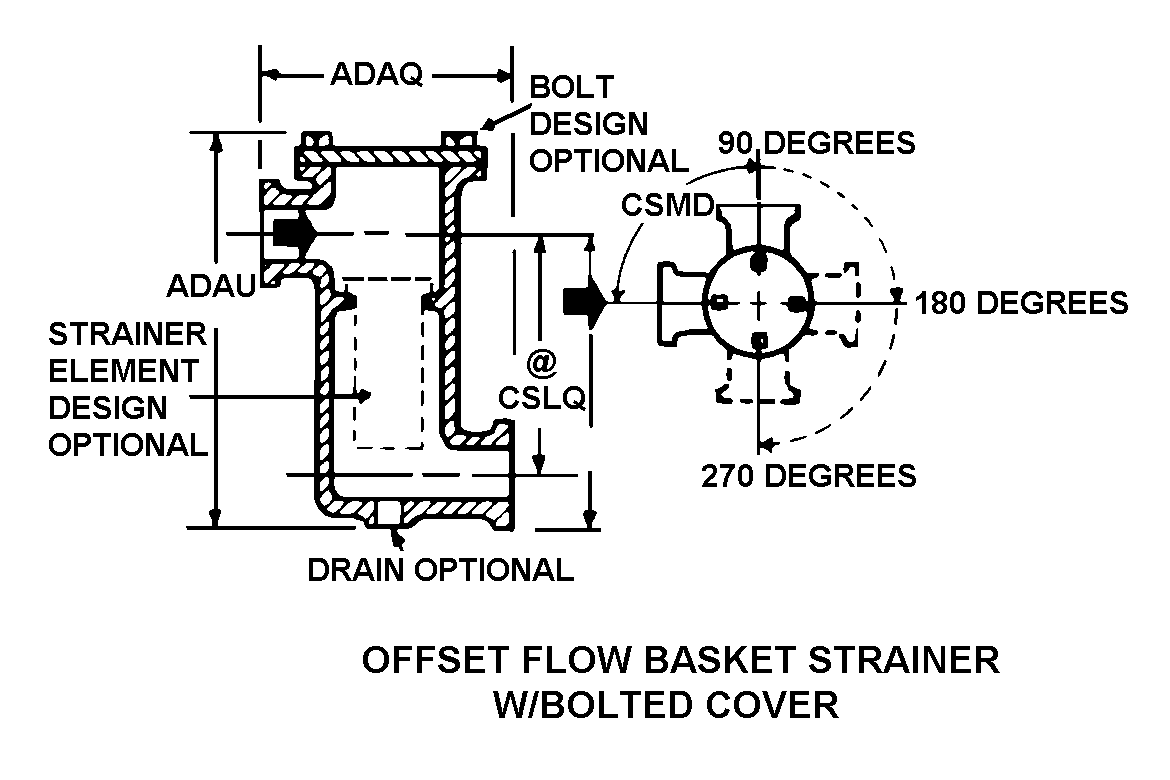

| STYLE DESIGNATOR | C14 OFFSET FLOW BASKET STRAINER W/BOLTED COVER |
| BODY LENGTH | 6.500 INCHES NOMINAL |
| BODY HEIGHT | 9.500 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET | 5.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CONNECTIONS | 5.000 INCHES NOMINAL |
| ANGLE BETWEEN CONNECTIONS | 180.0 DEGREES NOMINAL |
| MATERIAL | COPPER ALLOY BODY NICKEL ALLOY FILTERING MEDIUM |
| FILTERING MEDIA DESIGN | MESH SINGLE FILTERING MEDIA RESPONSE |
| MESH SIZE | 50.0 |
| WIRE DIAMETER | 0.010 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON AND GAS AND WATER |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
| TEMP RATING | NOT RATED |
| FIRST INTAKE CONNECTION TYPE | INTERNAL SOLDER LINE |
| FIRST INTAKE NOMINAL INSIDE DIAMETER | 0.375 INCHES |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | INLET CONNECTION AND OUTLET CONNECTION LINE |
| SPECIAL FEATURES | STEEL NUTT |
| III END ITEM IDENTIFICATION | 3000 PSI AIR STRAINER |
Restrictions/Controls & Freight Information | NSN 4730-00-202-9974
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052430 | STRAINERS PIPE LINE BBC BODY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-202-9974
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
