NSN 4730-00-203-8136 AN8334D, AN833-4D, B52762
Product Details | TUBE ELBOW
4730-00-203-8136 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AN8334D, AN833-4D, B52762, B5-2-762 , S8744D, S874-4D, S874, 4730-00-203-8136, 00-203-8136, 4730002038136, 002038136
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-203-8136 | 03771 ( ELBOW, TUBE ) |

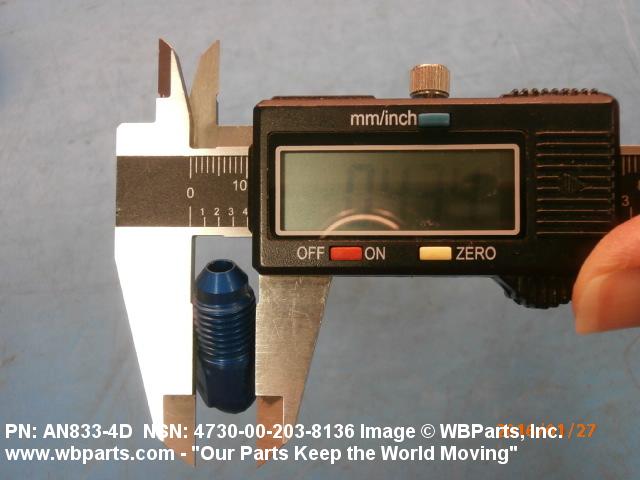

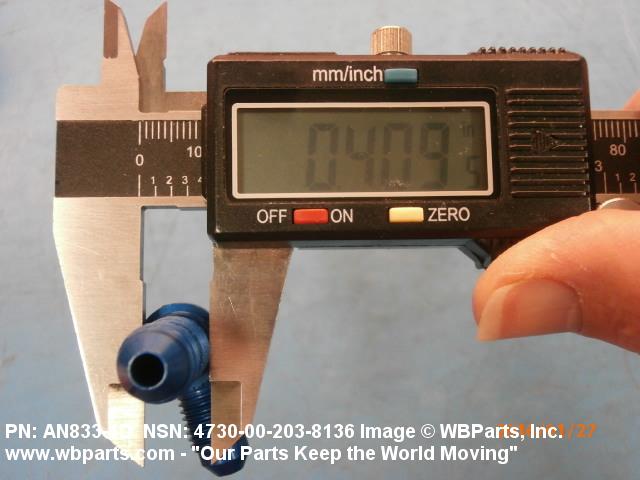

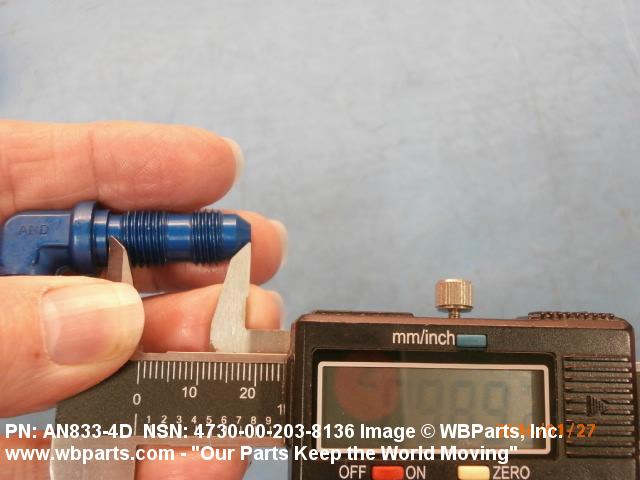

Drawings & Photos | NSN 4730-00-203-8136
Demand History | NSN 4730-00-203-8136
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-203-8136 | 2025-12-336 | 398 | DIBBS |
| 4730-00-203-8136 | 2025-11-313 | 398 | DIBBS |
| AN8334D | 2025-10-304 | 50 | United States |
| AN8334D | 2025-10-280 | 150 | Japan |
| AN8334D | 2025-01-31 | 40 | United States |
| AN8334D | 2024-12-348 | 100 | Japan |
| AN8334D | 2024-11-327 | 20 | United States |
| AN8334D | 2024-09-263 | 30 | United States |
| AN8334D | 2024-09-263 | 30 | United States |
| AN8334D | 2024-09-254 | 50 | United States |
| AN8334D | 2024-07-194 | 30 | United States |
| 4730-00-203-8136 | 2024-05-123 | 432 | DIBBS |
| AN8334D | 2024-04-110 | 40 | United States |
| AN8334D | 2024-04-110 | 40 | United States |
| AN8334D | 2023-12-352 | 30 | United States |
| AN8334D | 2023-12-348 | 317 | United States |
| AN8334D | 2023-12-348 | 317 | United States |
| 4730-00-203-8136 | 2023-12-339 | 259 | United States |
| AN8334D | 2023-09-254 | 260 | US |
| 4730-00-203-8136 | 2023-09-248 | 259 | DIBBS |
| AN8334D | 2023-08-222 | 40 | United States |
| 4730-00-203-8136 | 2023-04-110 | 74 | DIBBS |
| AN8334D | 2023-03-61 | 3 | us |
| AN8334D | 2023-02-39 | 25 | South Africa |
| AN8334D | 2022-04-109 | 116 | United States |
| AN8334D | 2022-04-109 | 250 | United States |
| AN8334D | 2022-04-109 | 500 | United States |
| AN8334D | 2021-07-190 | 50 | Hong Kong |
| AN8334D | 2021-02-32 | 10 | BD |
| AN8334D | 2020-11-306 | 90 | United States |
| AN8334D | 2020-11-306 | 100 | United States |
| AN833-4D | 2019-02-42 | 5 | Lebanon |
| AN8334D | 2019-01-11 | 40 | US |
| 4730-00-203-8136 | 2018-11-333 | 151 | DIBBS |
| 4730-00-203-8136 | 2018-05-127 | 323 | DIBBS |
| 4730-00-203-8136 | 2018-04-116 | 323 | DIBBS |
| AN8334D | 2018-04-94 | 50 | UAE |
| AN8334D | 2018-02-40 | 5 | United States |
| AN8334D | 2018-02-38 | 10 | United States |
| AN8334D | 2017-06-171 | 3 | United States |
| 4730-00-203-8136 | 2017-01-17 | 142 | DIBBS |
| 4730-00-203-8136 | 2016-11-320 | 283 | DIBBS |
| AN8334D | 2016-11-309 | 2 | US |
| 4730-00-203-8136 | 2016-07-213 | 153 | DIBBS |
| AN8334D | 2016-06-168 | 2 | China |
| AN8334D | 2015-08-229 | 25 | US |
| AN833-4D | 2015-03-85 | 2 | US |
| AN833-4D | 2015-03-69 | 500 | US |
| 4730-00-203-8136 | 2013-06-175 | 197 | DIBBS |
| 4730-00-203-8136 | 2013-05-143 | 146 | DIBBS |
| 4730-00-203-8136 | 2013-05-128 | 146 | DIBBS |
| 4730-00-203-8136 | 2012-12-338 | 146 | DIBBS |
| AN8334D | 2012-02-38 | 30 | AR |
| AN833-4D | 2012-02-38 | 30 | US |
| AN8334D | 2009-11-329 | 1 | United States |
| AN8334D | 2009-11-329 | 1 | United States |
| 4730-00-203-8136 | 2009-06-175 | 200 | United States |
| 4730-00-203-8136 | 2008-05-129 | 10 | IQ |
| AN8334D | 2007-10-302 | 40 | US |
Cross Reference | NSN 4730-00-203-8136
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8-23014 | 96046 | CRANE PUMPS & SYSTEMS, INC. |
| AN833-4D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| S874 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| S874-4D | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-203-8136
Related Products | NSN 4730-00-203-8136
Technical Data | NSN 4730-00-203-8136
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE INSIDE ANODIZE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.438 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| LEG LENGTH | 0.984 INCHES NOMINAL 1ST END 0.976 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | S874-4D |
Restrictions/Controls & Freight Information | NSN 4730-00-203-8136
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
