NSN 4730-00-211-6380 MH800E2607, 800E2607, 00-211-6380
Product Details | FILLER OPENING CAP
4730-00-211-6380 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: MH800E2607, 800E2607, 4730-00-211-6380, 00-211-6380, 4730002116380, 002116380
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-211-6380 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 4730-00-211-6380
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-211-6380
Technical Data | NSN 4730-00-211-6380
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |

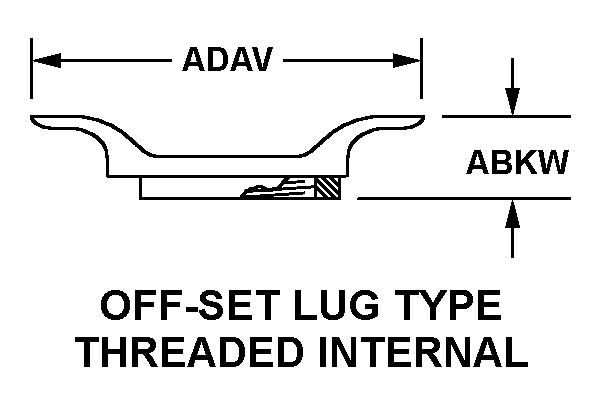

| STYLE DESIGNATOR | C7 OFF-SET LUG TYPE THREADED INTERNAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| OVERALL DIAMETER | 5.000 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | NONPRESSURIZED |
| THREAD SERIES DESIGNATOR | NPT |
| THREAD DIAMETER | 3.125 INCHES NOMINAL |
| THREAD LENGTH | 0.625 INCHES NOMINAL |
| GRIPPING ACCOMMODATION TYPE | LUGS |
Restrictions/Controls & Freight Information | NSN 4730-00-211-6380
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
