NSN 4730-00-221-2130 AN929, AN92920, AN929-20
Product Details | TUBE CAP
4730-00-221-2130 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: AN929, AN92920, AN929-20, AS4841, MILF5509, MIL-F-5509, 4730-00-221-2130, 00-221-2130, 4730002212130, 002212130
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-221-2130 | 06074 ( CAP, TUBE ) |

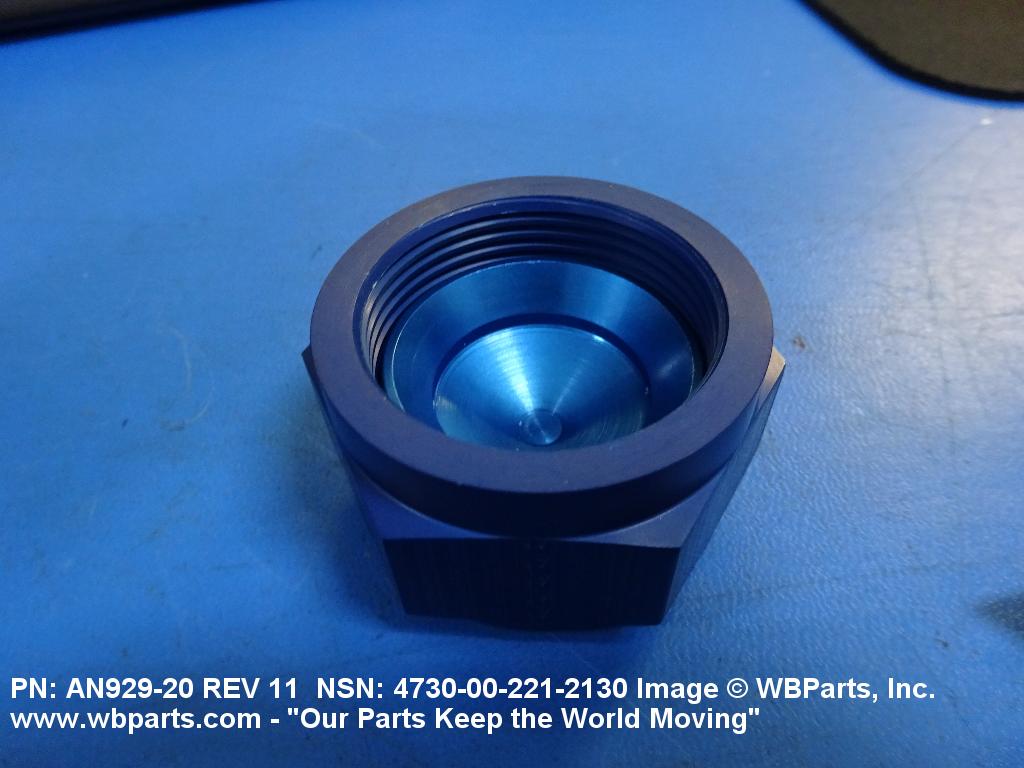

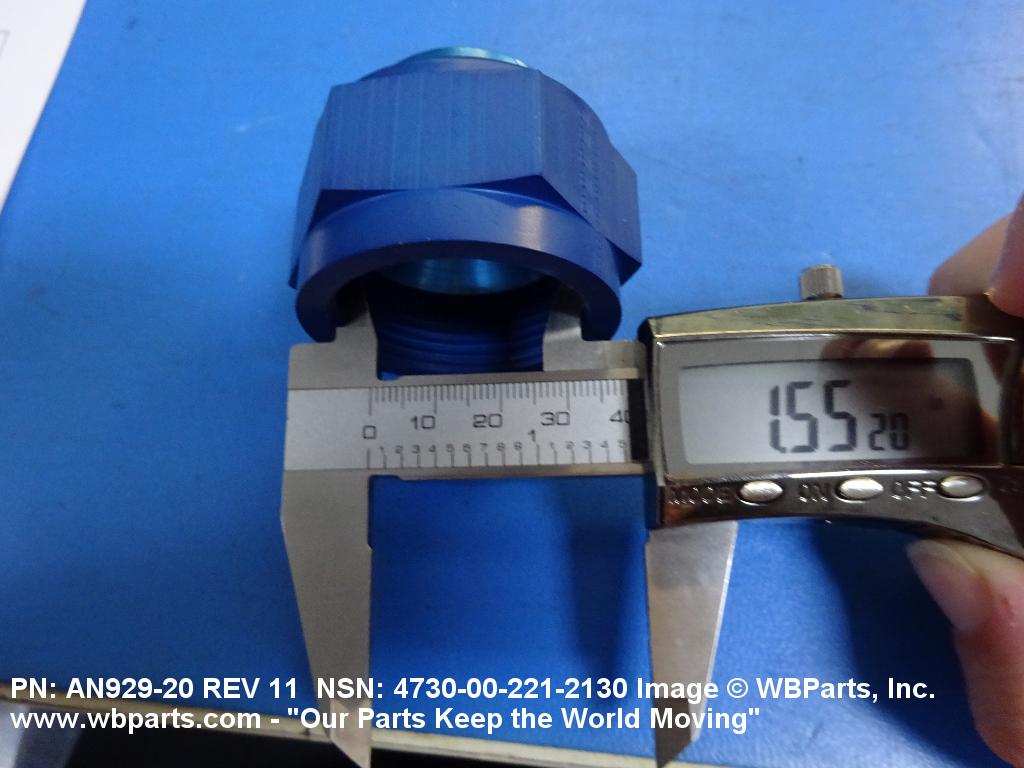

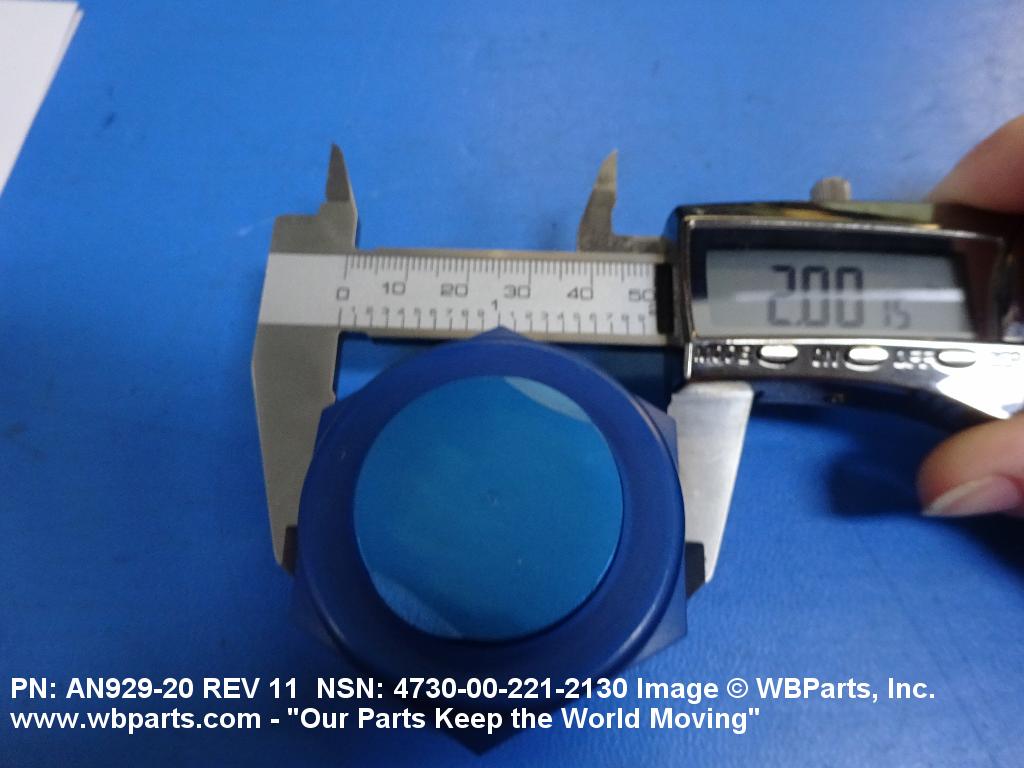

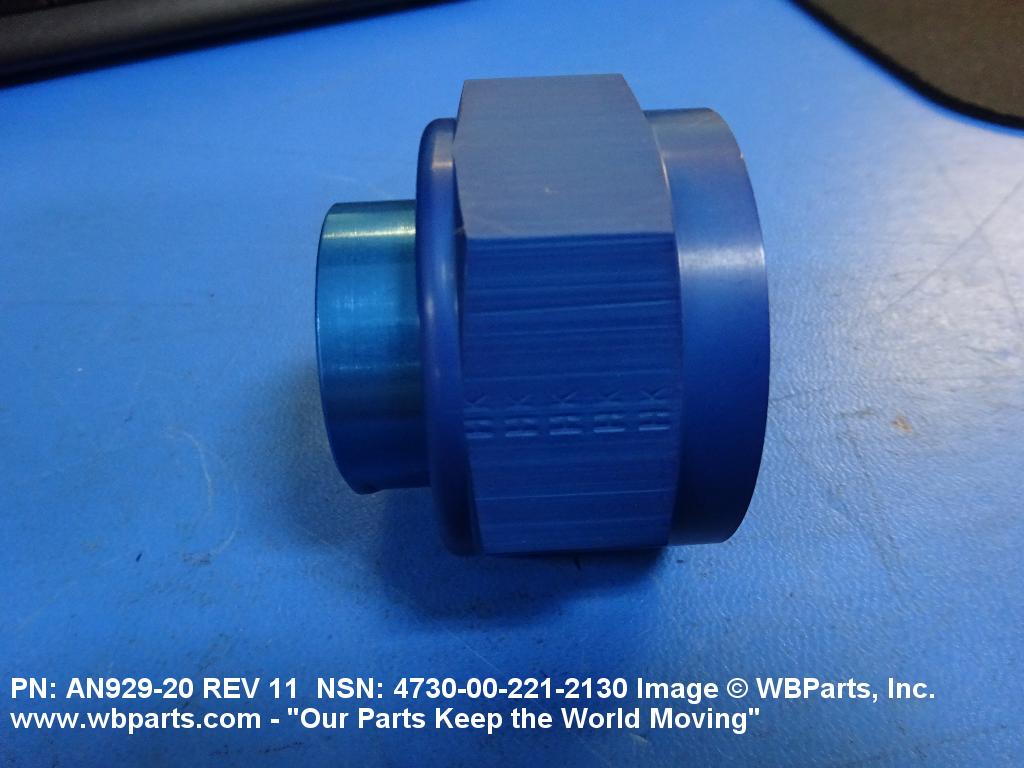

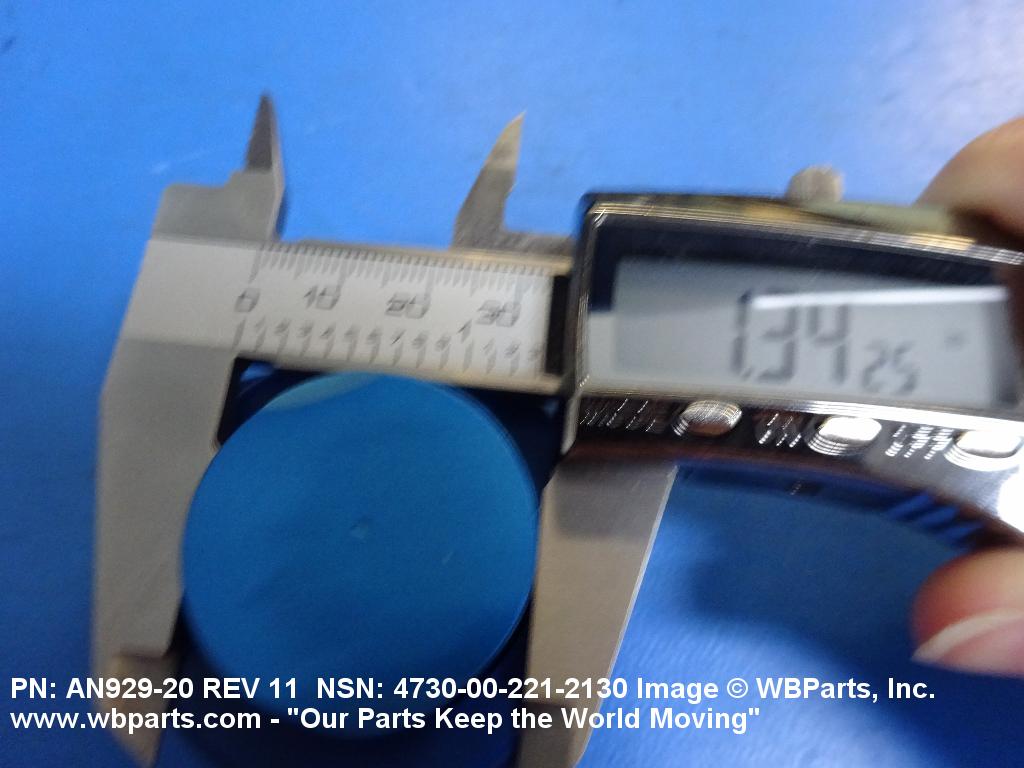

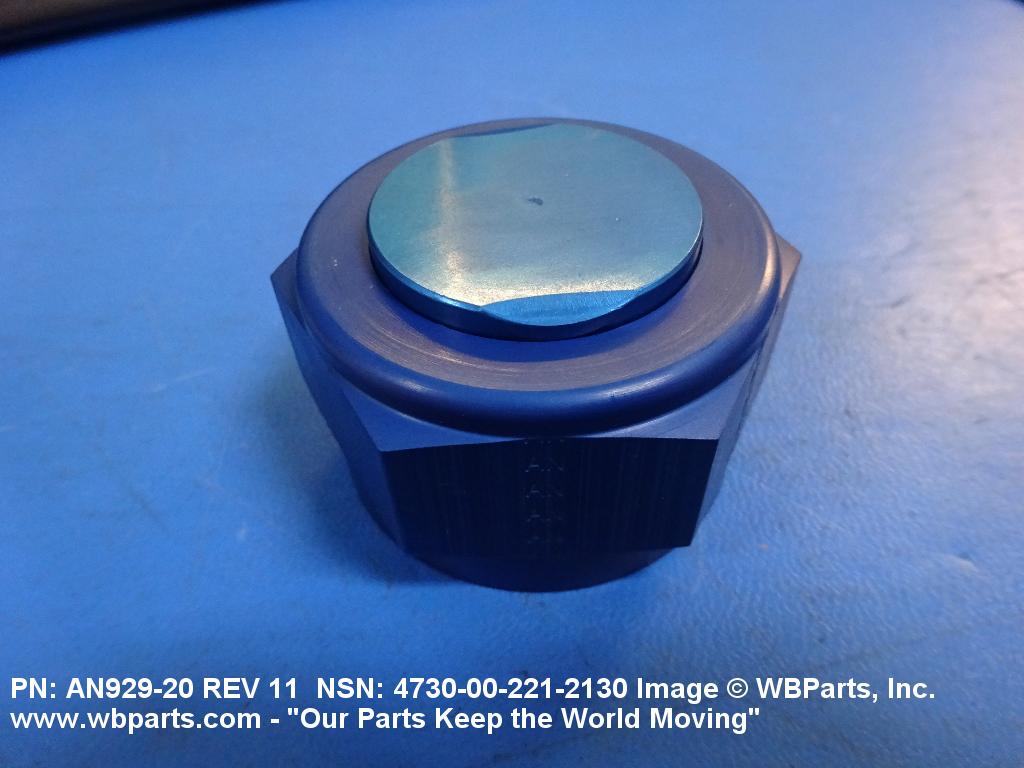

Drawings & Photos | NSN 4730-00-221-2130
Demand History | NSN 4730-00-221-2130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-221-2130 | 2025-06-156 | 639 | DIBBS |
| AS4841 | 2025-04-106 | 1 | France |
| 4730-00-221-2130 | 2024-12-347 | 531 | DIBBS |
| 4730-00-221-2130 | 2024-06-179 | 615 | DIBBS |
| 4730-00-221-2130 | 2024-06-168 | 615 | DIBBS |
| AN92920 | 2023-06-164 | 10 | United States |
| AN929 | 2023-05-125 | 41 | Saudi Arabia |
| 4730-00-221-2130 | 2022-02-45 | 10 | United States |
| 4730-00-221-2130 | 2021-11-318 | 988 | DIBBS |
| 4730-00-221-2130 | 2021-07-207 | 978 | DIBBS |
| 4730-00-221-2130 | 2021-05-126 | 1679 | DIBBS |
| 4730-00-221-2130 | 2021-02-34 | 978 | DIBBS |
| 4730-00-221-2130 | 2020-10-287 | 1008 | DIBBS |
| AN92920 | 2020-07-203 | 20 | Singapore |
| 4730-00-221-2130 | 2019-09-246 | 856 | DIBBS |
| 4730-00-221-2130 | 2019-08-234 | 856 | DIBBS |
| 4730-00-221-2130 | 2018-08-233 | 1461 | DIBBS |
| MILF5509 | 2018-07-201 | 6 | United States |
| 4730-00-221-2130 | 2018-03-64 | 1184 | DIBBS |
| 4730-00-221-2130 | 2018-02-52 | 1184 | DIBBS |
| 4730-00-221-2130 | 2017-04-120 | 388 | DIBBS |
| 4730-00-221-2130 | 2016-01-08 | 2 | United States |
| 4730-00-221-2130 | 2016-01-07 | 2 | United States |
| 4730-00-221-2130 | 2015-10-279 | 2 | United States |
| 4730-00-221-2130 | 2015-09-246 | 2 | United States |
| 4730-00-221-2130 | 2015-09-246 | 2 | United States |
| AN929 | 2013-11-324 | 50 | Thailand |
| 4730-00-221-2130 | 2011-09-244 | 1092 | DIBBS |
| 4730-00-221-2130 | 2011-07-211 | 1246 | DIBBS |
| 4730-00-221-2130 | 2011-05-124 | 898 | DIBBS |
| AS4841 | 2011-03-69 | 8 | |
| 4730-00-221-2130 | 2009-11-322 | 392 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-221-2130
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN929 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN929-20 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN929-20 | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN929-20 | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN929-20 | 14397 | FABER ENTERPRISES, INC. |
| AN929-20 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN929-20 | 22995 | CROWN FITTING CO INC |
| AN929-20 | 30974 | AEROFIT, LLC |
| AN929-20 | 71563 | COLLINS ENGINEERING CORP |
| AN929-20 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN929-20 | R1120 | SATAIR A/S |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-221-2130
Related Products | NSN 4730-00-221-2130
Technical Data | NSN 4730-00-221-2130
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/4,T6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-225/6,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A13 CAP, TUBE, FLARED |
| CONNECTION STYLE | G5 PRESSURE SEAL FLARED |
| THREAD SERIES DESIGNATOR | UNJ INTERNAL |
| NOMINAL THREAD SIZE | 1.625 INCHES INTERNAL |
| THREAD QUANTITY PER INCH | 12 INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.250 INCHES NOMINAL |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| SPECIFICATION/STANDARD DATA | 88044-AN929 GOVERNMENT STANDARD AND 81343-AS4841 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | AIRCRAFT FLUID SYSTEM |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 300.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN929-20 |
Restrictions/Controls & Freight Information | NSN 4730-00-221-2130
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
