NSN 4730-00-222-0976 SU406, 00-222-0976, 002220976
Product Details | LUBRICATION FITTING
4730-00-222-0976 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Part Alternates: SU406, 4730-00-222-0976, 00-222-0976, 4730002220976, 002220976
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 00-222-0976 | 03177 ( FITTING, LUBRICATION ) |

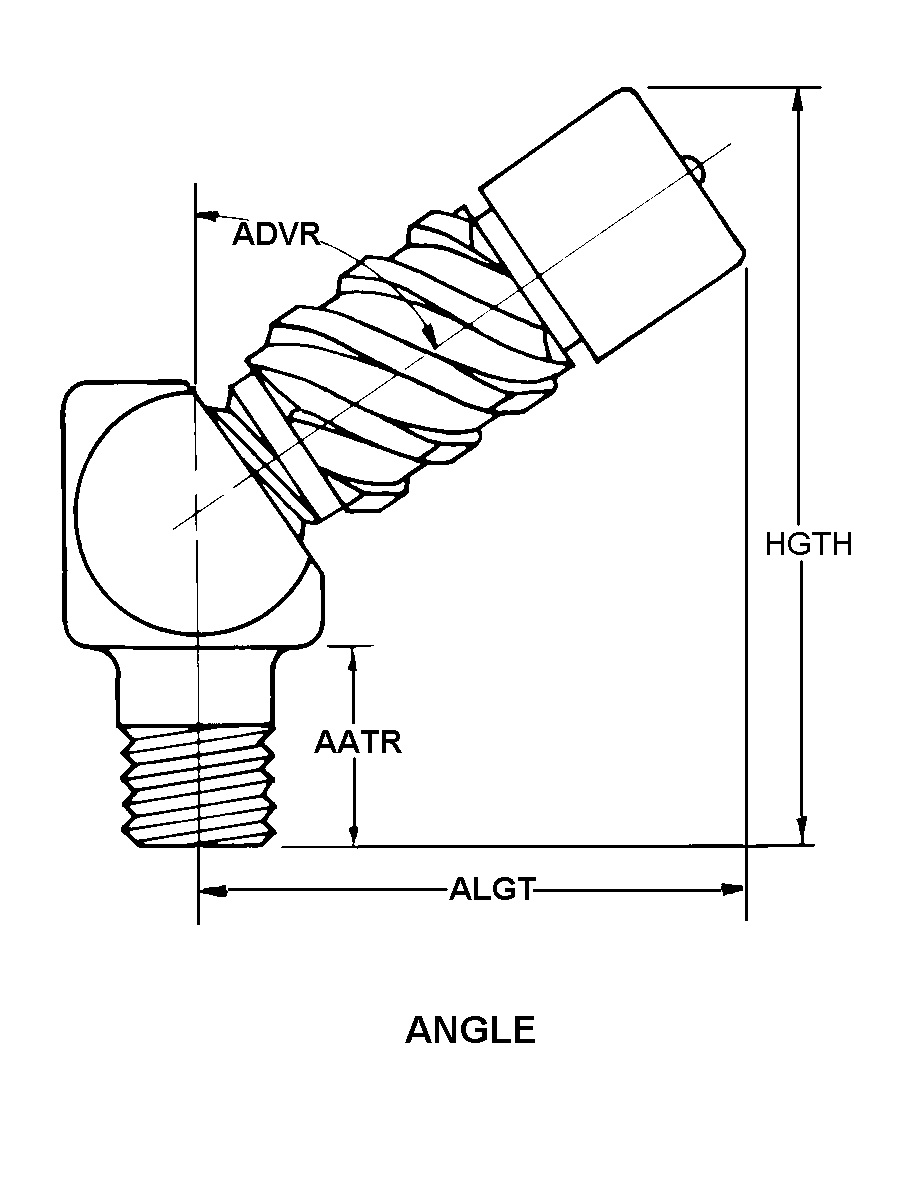

Drawings & Photos | NSN 4730-00-222-0976
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-222-0976
Technical Data | NSN 4730-00-222-0976
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | B2 ANGLE |
| SHANK LENGTH | 0.438 INCHES NOMINAL |
| ANGLE IN DEG | 45.0 |
| ASSEMBLY CLEARANCE RADIUS | 0.875 INCHES NOMINAL |
| HEIGHT | 1.594 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | PTF-SPL SHORT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| BYPASS RELIEF VALVE SETTING RANGE | NOT RATED |
| WIDTH ACROSS FLATS | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | SURFACE LOCATED BALL CHECK VALVE |
Restrictions/Controls & Freight Information | NSN 4730-00-222-0976
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
