NSN 4730-00-233-0773 DS1389, 0052301451, 00523-0145-1
Product Details | LUBRICATING OIL CUP
4730-00-233-0773 An item designed to be driven or threaded into a machine part for the purpose of dispensing oil to a lubricating passage or duct, and to seal the passage or duct against dirt and moisture. The item does not have a transparent body, or contain a wick or needle to restrict or filter the flow.
Part Alternates: DS1389, 0052301451, 00523-0145-1, 3664, 523, 56SIZE2, 7578313, 7599866, 4730-00-233-0773, 00-233-0773, 4730002330773, 002330773
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-233-0773 | 03179 ( CUP, OIL, LUBRICATING ) |

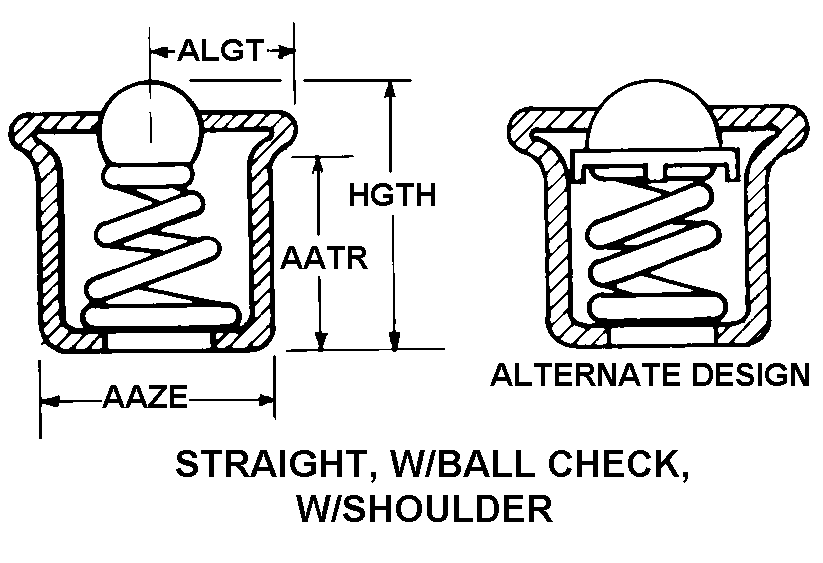

Drawings & Photos | NSN 4730-00-233-0773
Cross Reference | NSN 4730-00-233-0773
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00523-0145-1 | 24981 | APACHE CORP GITS BROS MFG CO |
| 3664 | 43952 | ENERGY SERVICES GROUP DIV OF COOPER INDUSTRIES INC |
| 523 | 24981 | APACHE CORP GITS BROS MFG CO |
| 56SIZE2 | 90655 | BOWEN PRODUCTS CORP |
| 7578313 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 7599866 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| DS1389 | 43952 | ENERGY SERVICES GROUP DIV OF COOPER INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-233-0773
Related Products | NSN 4730-00-233-0773
Technical Data | NSN 4730-00-233-0773
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| STYLE DESIGNATOR | H17 STRAIGHT, W/BALL CHECK, W/SHOULDER |
| SHANK LENGTH | 0.375 INCHES NOMINAL |
| SHANK DIAMETER | 0.378 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| ASSEMBLY CLEARANCE RADIUS | 0.203 INCHES NOMINAL |
| HEIGHT | 0.438 INCHES NOMINAL |
| OIL CAPACITY | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4730-00-233-0773
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 124540 | LUBRICATORS GREASE CUPS O/T A |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-233-0773
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
