NSN 4730-00-239-0189 A40064SW, A400-6-4SW , SS40014
Product Details | PIPE TO TUBE STRAIGHT ADAPTER
4730-00-239-0189 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line.
Part Alternates: A40064SW, A400-6-4SW , SS40014, SS-400-1-4, 107A895, 11454810-2, 11509707001, 11509707-001, 25186821, 2518682-1 , 2518781, 25187818, 2518781-8, 2913 006 01154, 291300601154, 533492, 4730-00-239-0189, 00-239-0189, 4730002390189, 002390189, 114548102
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 NOV 1969 | 00-239-0189 | 03776 ( ADAPTER, STRAIGHT, PIPE TO TUBE ) |

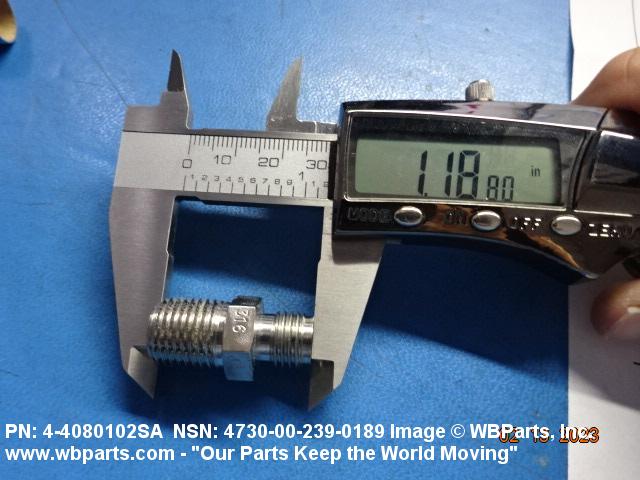

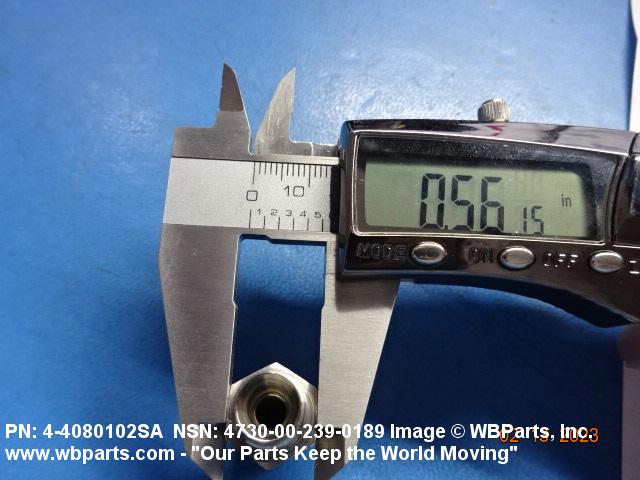

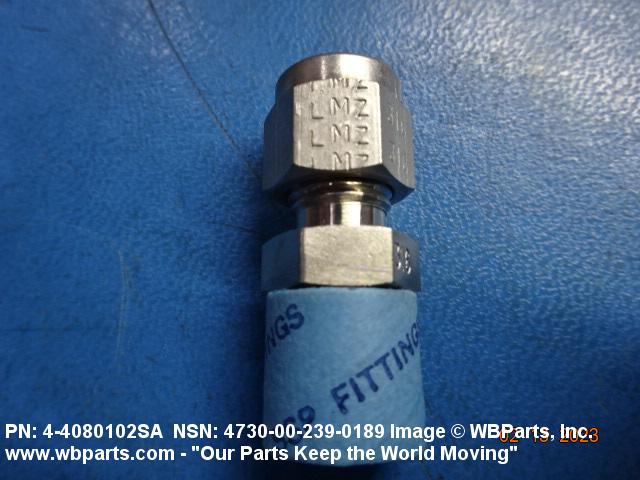

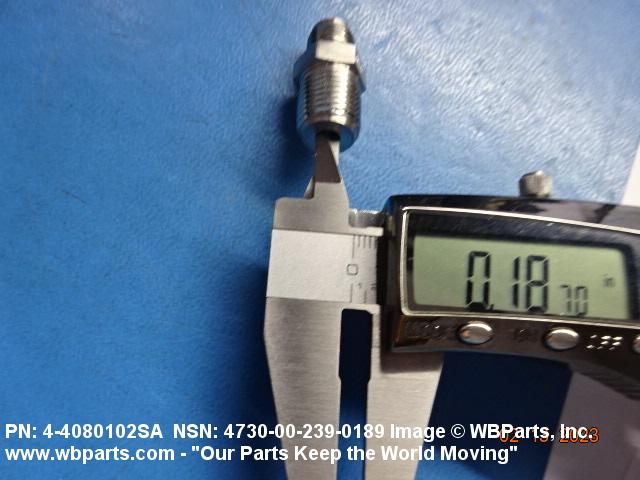

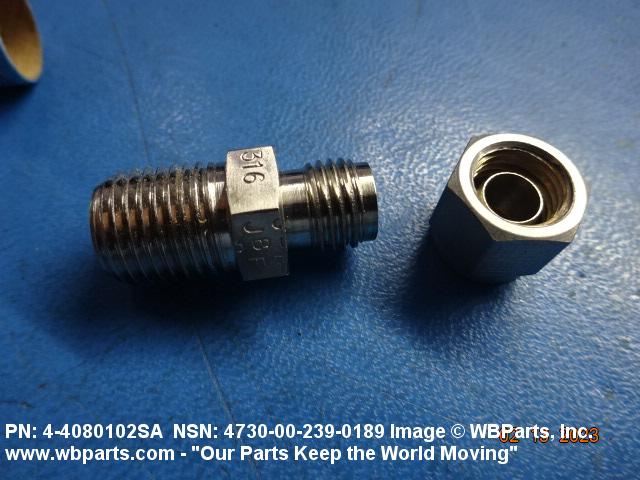

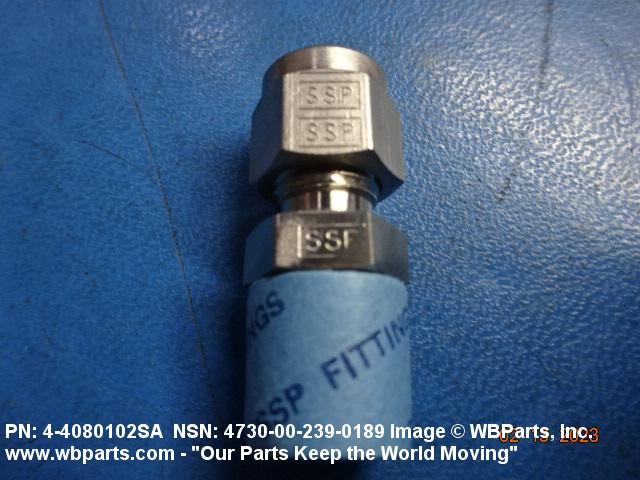

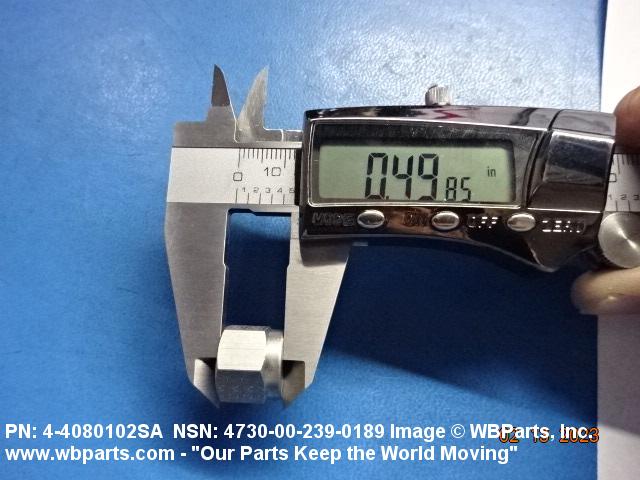

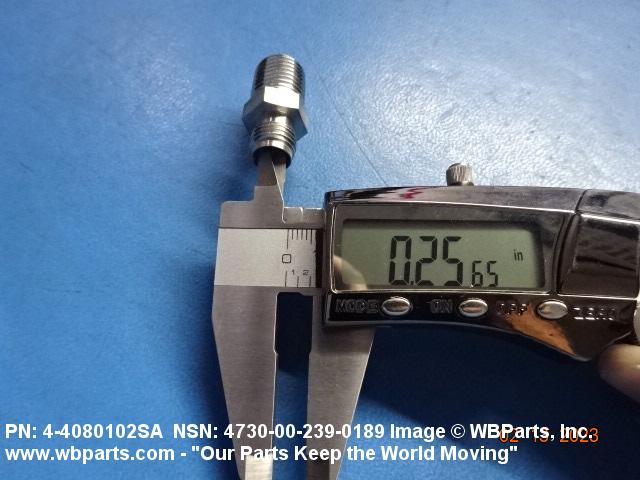

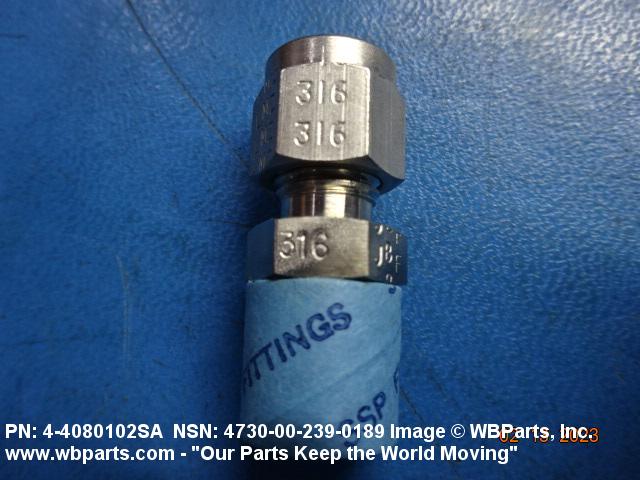

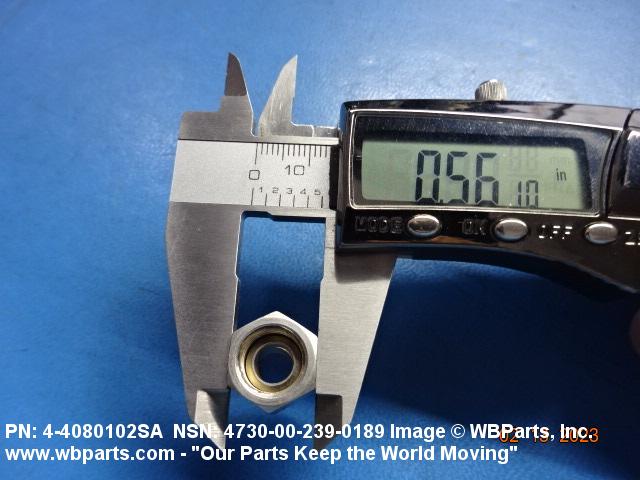

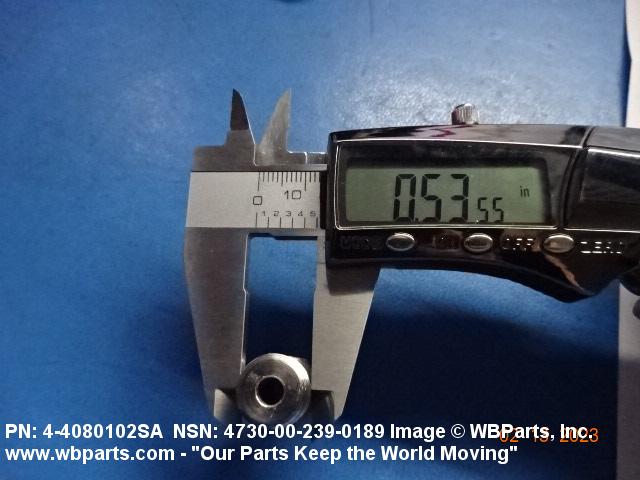

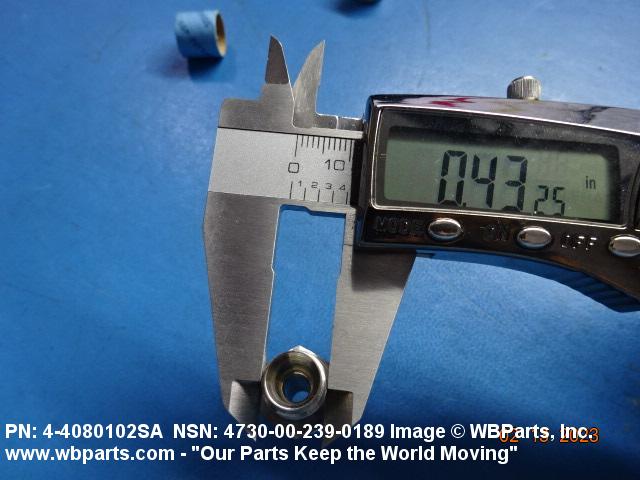

Drawings & Photos | NSN 4730-00-239-0189
Demand History | NSN 4730-00-239-0189
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SS40014 | 2024-06-159 | 10 | United States |
| 4730-00-239-0189 | 2023-01-03 | 1 | us |
| SS40014 | 2020-03-84 | 1 | United States |
| 4730-00-239-0189 | 2020-03-62 | 1 | DIBBS-RFPs |
| 4730-00-239-0189 | 2017-07-198 | 363 | DIBBS |
| 4730-00-239-0189 | 2017-06-156 | 404 | DIBBS |
| 4730-00-239-0189 | 2017-05-143 | 404 | DIBBS |
| 4730-00-239-0189 | 2017-03-89 | 367 | DIBBS |
| 4730-00-239-0189 | 2017-03-65 | 363 | DIBBS |
| 4730-00-239-0189 | 2015-05-148 | 877 | DIBBS |
| SS-400-1-4 | 2014-06-156 | 1 | RO |
| 4730-00-239-0189 | 2013-09-267 | 559 | DIBBS |
| 4730-00-239-0189 | 2013-08-213 | 661 | DIBBS |
| 4730-00-239-0189 | 2013-06-175 | 686 | DIBBS |
| 4730-00-239-0189 | 2013-06-160 | 686 | DIBBS |
| 4730-00-239-0189 | 2012-05-125 | 565 | DIBBS |
| 4730-00-239-0189 | 2011-10-290 | 453 | DIBBS |
| 4730-00-239-0189 | 2010-12-335 | 576 | DIBBS |
| 4730-00-239-0189 | 2010-09-272 | 353 | DIBBS |
| 4730-00-239-0189 | 2010-04-120 | 362 | DIBBS |
| 4730-00-239-0189 | 2010-03-85 | 88 | DIBBS |
Cross Reference | NSN 4730-00-239-0189
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 107A895 | 24039 | VARO LLC |
| 11454810-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 11509707-001 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 2518781 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 2518781-8 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 2913 006 01154 | K0419 | SPECTRONIC UNICAM |
| 533492 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| SS-400-1-4 | 02570 | SWAGELOK COMPANY DBA USE CAGE CODE 3T9T9 FOR |
| SS-400-1-4 | U6751 | SWAGELOK UK LTD |
| SS-400-1-4 | U7307 | SOUTH LONDON VALVE & FITTING COMPANY TD T/A SWAGELOK LONDON |
| SS-400-1-4 | U7709 | MCNAUGHTON DYNAMICS LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-239-0189
Technical Data | NSN 4730-00-239-0189
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 8119.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 20.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END NPT 2ND END |
| NOMINAL THREAD SIZE | 0.438 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END |
| NOMINAL OVERALL LENGTH | 1.480 INCHES |
| FURNISHED ITEMS AND QUANTITY | 1 FERRULE SLEEVE AND 1 TUBE COUPLING NUT |
| SPECIAL FEATURES | GRUMMAN AEROSPACE A-10 AIRCRAFT |
| SPECIFICATION/STANDARD DATA | 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 19A FIGURE |
Restrictions/Controls & Freight Information | NSN 4730-00-239-0189
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-239-0189
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
