NSN 4730-00-268-8972 FS200, U635, 35D1706
Product Details | SEDIMENT STRAINER
4730-00-268-8972 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: FS200, U635, 35D1706, 4730-00-268-8972, 00-268-8972, 4730002688972, 002688972
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-268-8972 | 04200 ( STRAINER, SEDIMENT ) |

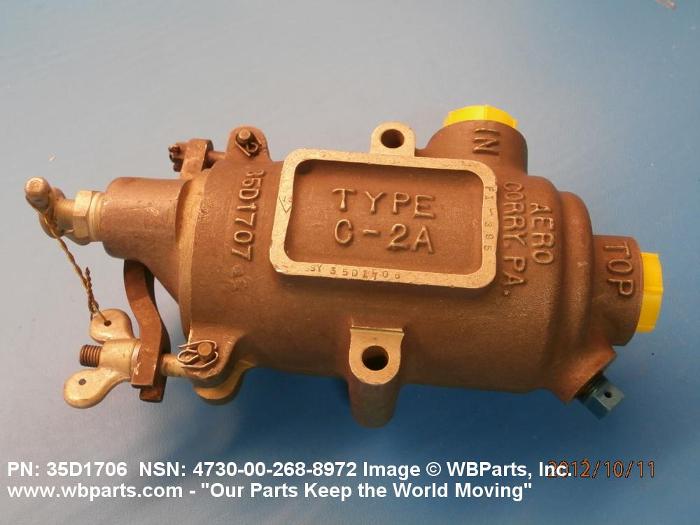

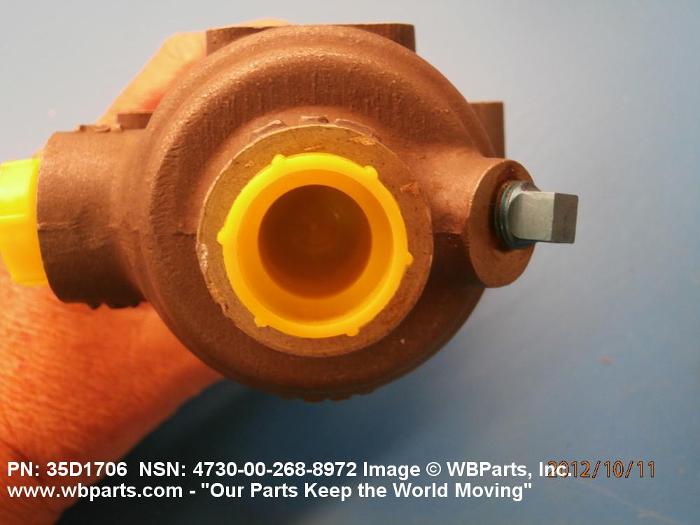

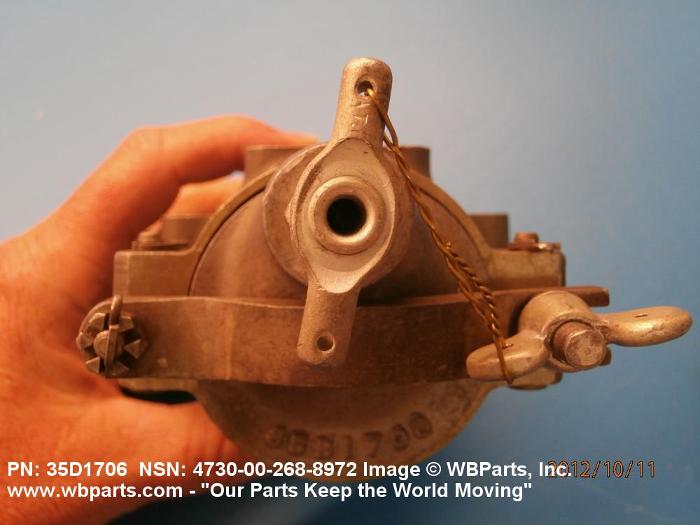

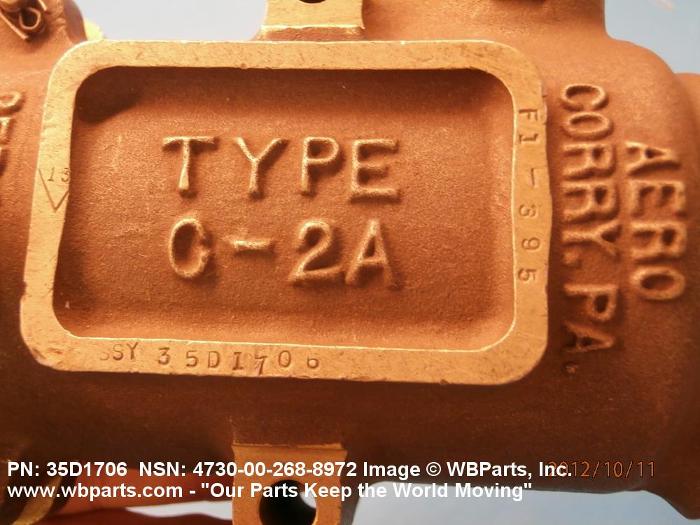

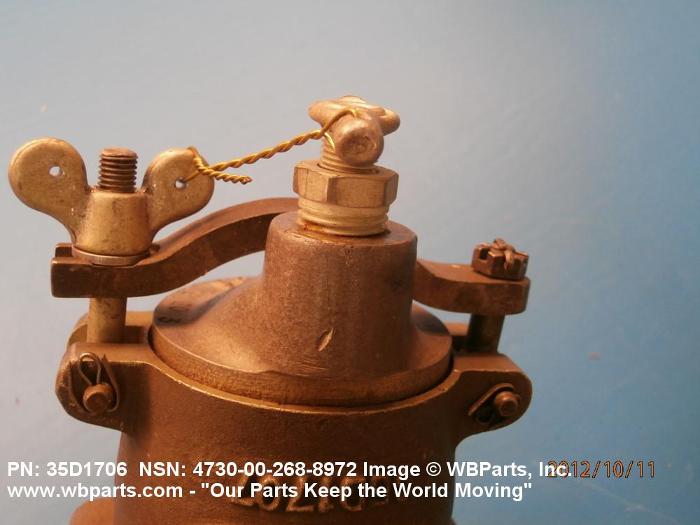

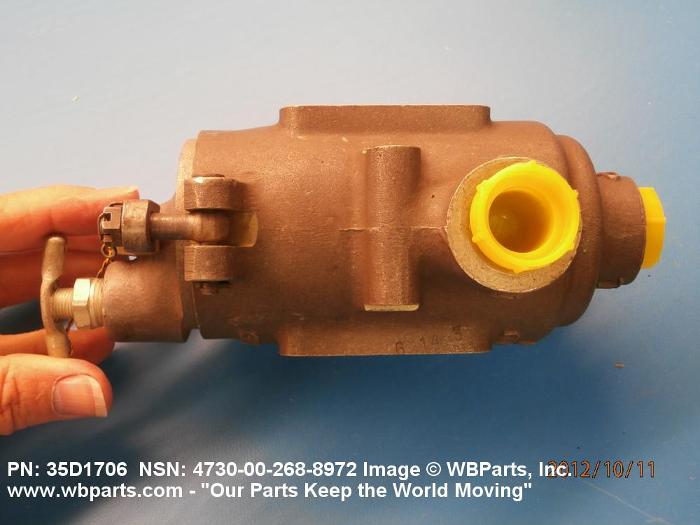

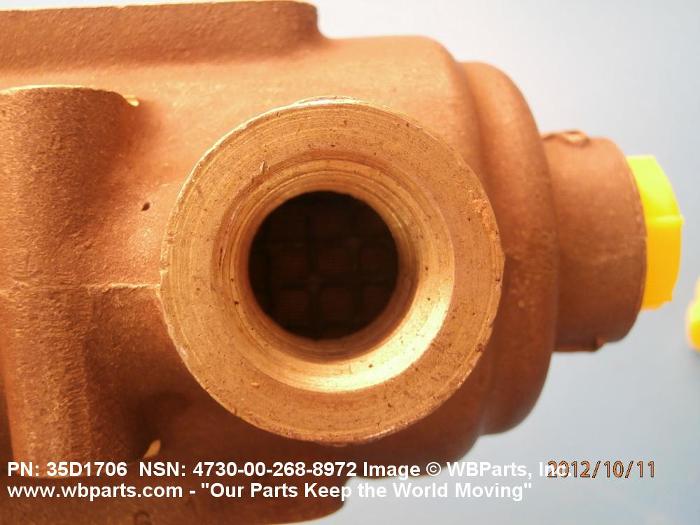

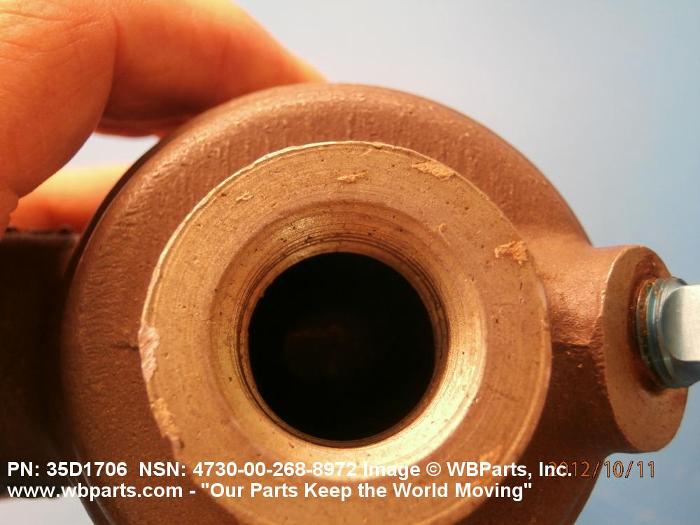

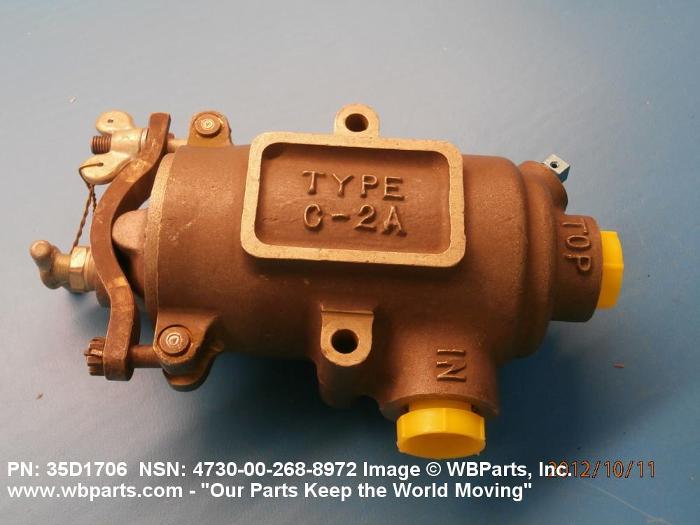

Drawings & Photos | NSN 4730-00-268-8972
Demand History | NSN 4730-00-268-8972
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FS200 | 2011-09-256 | 10 | |
| FS200 | 2011-09-254 | 10 | |
| FS200 | 2010-06-181 | 0 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-268-8972
Technical Data | NSN 4730-00-268-8972
| Characteristic | Specifications |
|---|---|
| BODY LENGTH | 6.688 INCHES NOMINAL |
| BODY WIDTH | 2.625 INCHES NOMINAL |
| BODY HEIGHT | 3.968 INCHES NOMINAL |
| MATERIAL | ALUMINUM BODY NICKEL ALLOY SCREENING |
| SURFACE TREATMENT | ANODIZE BODY |
| FILTERING MEDIA DESIGN | MESH SINGLE FILTERING MEDIA RESPONSE |
| MESH SIZE | 56.0 |
| WIRE DIAMETER | 0.0065 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| MAXIMUM OPERATING PRESSURE | 40.0 POUNDS PER SQUARE INCH |
| TEMP RATING | NOT RATED |
| III FSC APPLICATION DATA | ENGINE FUEL SYSTEM COMPONENTS,ACFT |
| MANUFACTURERS CODE | 78943 |
| DESIGN CONTROL REFERENCE | U635 |
Restrictions/Controls & Freight Information | NSN 4730-00-268-8972
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
