NSN 4730-00-269-7224 AE161966, AE16196-6, AFP2614T060606

Product Details | TUBE TEE

4730-00-269-7224 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.

Part Alternates: AE161966, AE16196-6, AFP2614T060606 , AP377T06, AP379T06, ST7M232T6, GT515AV6, LE27300460001, LE273-0046-0001, R44132T06, 59007491, 5900749-1, 10111314 , 4730-00-269-7224, 00-269-7224, 4730002697224, 002697224

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	22 JUL 1973	00-269-7224	03809 ( TEE, TUBE )

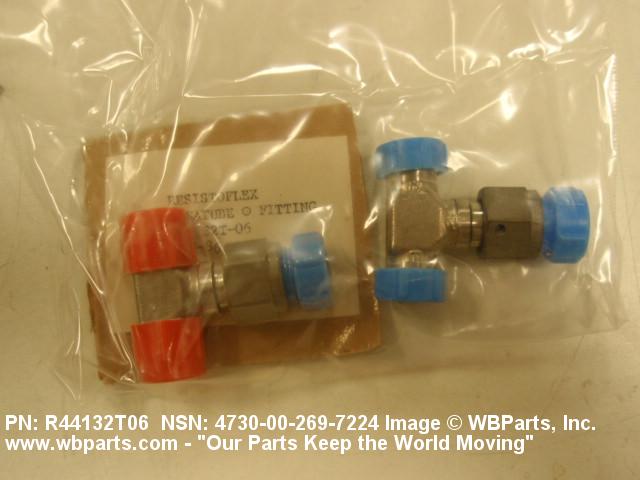

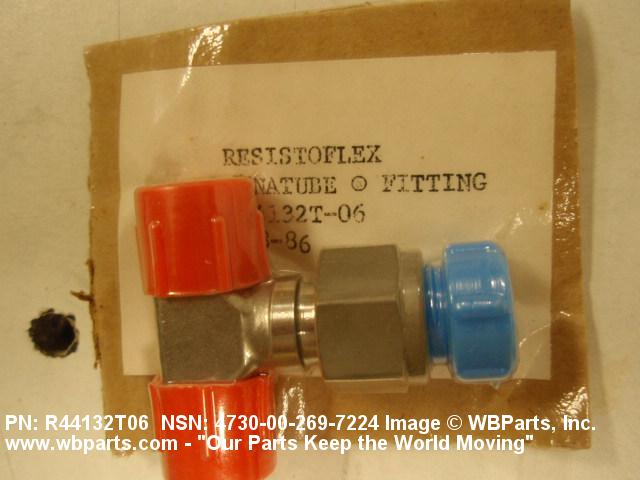

Drawings & Photos | NSN 4730-00-269-7224

Part Number	Request Date	QTY	Origin
5900749-1	2022-10-304	5	DIBBS
AP379T06	2022-10-304	5	DIBBS
R44132T06	2022-10-304	5	DIBBS
5900749-1	2022-10-289	5	DIBBS
AE16196-6	2022-10-289	5	DIBBS
AP377T06	2022-10-289	5	DIBBS
AP379T06	2022-10-289	5	DIBBS
GT515AV6	2022-10-289	5	DIBBS
LE273-0046-0001	2022-10-289	5	DIBBS
R44132T06	2022-10-289	5	DIBBS
ST7M232T6	2022-10-289	5	DIBBS
5900749-1	2022-07-212	5	DIBBS
AE16196-6	2022-07-212	5	DIBBS
AP377T06	2022-07-212	5	DIBBS
AP379T06	2022-07-212	5	DIBBS
GT515AV6	2022-07-212	5	DIBBS
LE273-0046-0001	2022-07-212	5	DIBBS
R44132T06	2022-07-212	5	DIBBS
ST7M232T6	2022-07-212	5	DIBBS
4730-00-269-7224	2016-02-53	18	DIBBS
4730-00-269-7224	2016-02-41	18	DIBBS
4730-00-269-7224	2015-12-342	7	DIBBS
4730-00-269-7224	2015-11-314	3	DIBBS
4730-00-269-7224	2015-10-302	3	DIBBS
4730-00-269-7224	2010-01-20	6	DIBBS
R44132T06	2009-07-203	2	United Kingdom

Cross Reference | NSN 4730-00-269-7224

Part Number	Cage Code	Manufacturer
5900749-1	99167	HAMILTON SUNDSTRAND CORPORATION
AE16196-6	00624	EATON CORPORATION DBA AEROSPACE DIV
AFP2614T060606	30974	AEROFIT, LLC
AP377T06	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
AP379T06	01673	SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS
GT515AV6	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
LE273-0046-0001	43999	BOEING COMPANY, THE DBA BOEING
R44132T06	50599	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION
ST7M232T6	76301	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-269-7224

Compare

Related Products | NSN 4730-00-269-7224

4730-00-269-7227, 4730-00-269-7460, 4730-00-269-7698, 4730-00-269-8077, 4730-00-270-0671

Technical Data | NSN 4730-00-269-7224

Characteristic	Specifications
MATERIAL	TITANIUM ALLOY UNS R54520 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4965,6AL-4V ASSN STD SINGLE MATERIAL RESPONSE OVERALL
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END THREADED INTERNAL TUBE 3RD END
CONNECTION STYLE	B67A PLAIN 1ST END B67A PLAIN 2ND END B12 SWIVEL NUT, FLARELESS 3RD END
SEAT ANGLE	8.5 DEGREES 3RD END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.375 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNJS ALL ENDS
NOMINAL THREAD SIZE	0.562 INCHES ALL ENDS
THREAD QUANTITY PER INCH	20 ALL ENDS
THREAD CLASS	3A 1ST END 3A 2ND END 3B 3RD END
LEG LENGTH	0.694 INCHES MINIMUM AND 0.714 INCHES MAXIMUM 1ST END 0.694 INCHES MINIMUM AND 0.714 INCHES MAXIMUM 2ND END 1.004 INCHES MINIMUM AND 1.024 INCHES MAXIMUM 3RD END
III END ITEM IDENTIFICATION	F-18 AIRCRAFT

Restrictions/Controls & Freight Information | NSN 4730-00-269-7224

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	136500	METAL NOI/METAL ALLOYS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-269-7224

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
