NSN 4730-00-277-6177 AN8374J, AN837-4J, C7445
Product Details | TUBE ELBOW
4730-00-277-6177 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AN8374J, AN837-4J, C7445, QS200M120S, QS200-M120S , 200120S , 4730-00-277-6177, 00-277-6177, 4730002776177, 002776177
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-277-6177 | 03771 ( ELBOW, TUBE ) |
Demand History | NSN 4730-00-277-6177
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN8374J | 2025-02-55 | 32 | United States |
| AN8374J | 2024-09-262 | 10 | United Arab Emirates |
| AN837-4J | 2015-03-85 | 14 | US |
| AN837-4J | 2015-03-69 | 500 | US |
| AN8374J | 2014-06-167 | 4 | US |
Cross Reference | NSN 4730-00-277-6177
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN837-4J | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN837-4J | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN837-4J | 22995 | CROWN FITTING CO INC |
| AN837-4J | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| AN837-4J | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN837-4J | R1120 | SATAIR A/S |
| C7445 | 98869 | HOWELL INSTRUMENTS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-277-6177
Related Products | NSN 4730-00-277-6177
Technical Data | NSN 4730-00-277-6177
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE INSIDE PASSIVATE OUTSIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-F-14072,E300,TY2 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF 1ST END BULKHEAD |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS 0.438 INCHES 1ST END BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A 1ST END BULKHEAD |

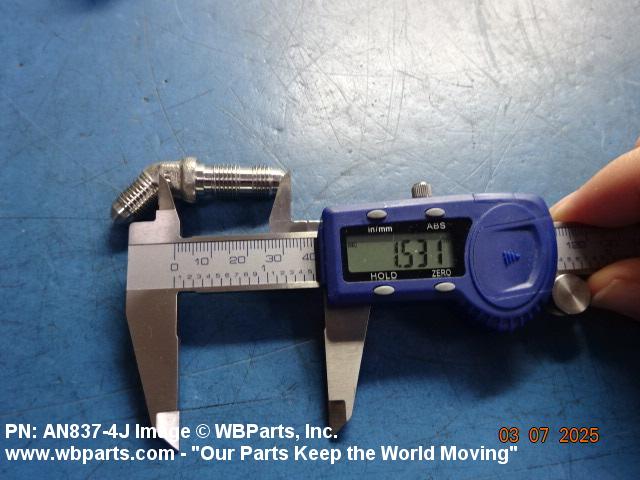

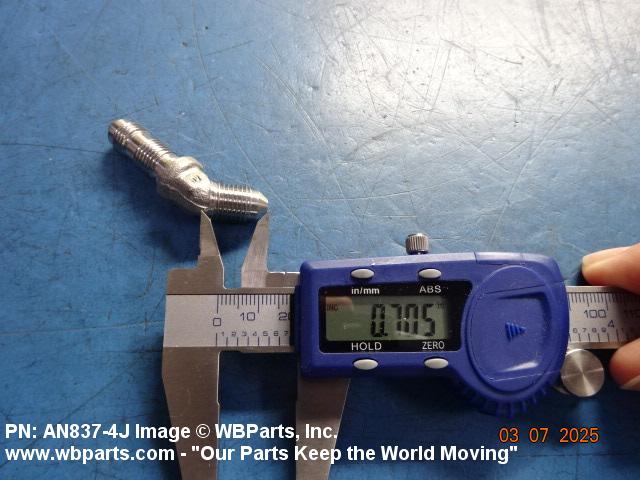

| LEG LENGTH | 1.531 INCHES NOMINAL 1ST END 0.703 INCHES NOMINAL 2ND END |
