NSN 4730-00-277-9194 109455, 1699, 5030
Product Details | LUBRICATION FITTING
4730-00-277-9194 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Part Alternates: 109455, 1699, 5030, 4730-00-277-9194, 00-277-9194, 4730002779194, 002779194
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-277-9194 | 03177 ( FITTING, LUBRICATION ) |

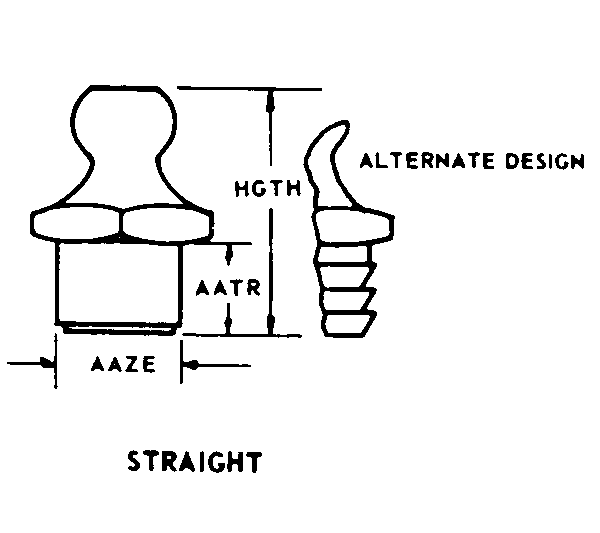

Drawings & Photos | NSN 4730-00-277-9194
Demand History | NSN 4730-00-277-9194
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5030 | 2025-11-316 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-277-9194
Technical Data | NSN 4730-00-277-9194
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| STYLE DESIGNATOR | E2 STRAIGHT |
| SHANK LENGTH | 0.188 INCHES NOMINAL |
| SHANK DIAMETER | 0.312 INCHES NOMINAL |
| HEIGHT | 0.562 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| PRESSURE RELIEF METHOD | PORT END |
| BYPASS RELIEF VALVE SETTING RANGE | NOT RATED |
| SPECIAL FEATURES | W/O CHECK VALVE |
Restrictions/Controls & Freight Information | NSN 4730-00-277-9194
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
