NSN 4730-00-277-9767 AN77612D, AN776-12D, AS4875/1
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-277-9767 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: AN77612D, AN776-12D, AS4875/1, AS48751, MILF5509, MIL-F-5509, 4730-00-277-9767, 00-277-9767, 4730002779767, 002779767
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-277-9767 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

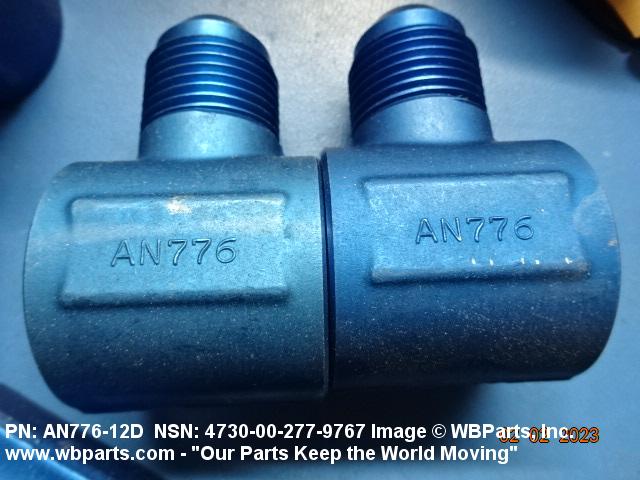

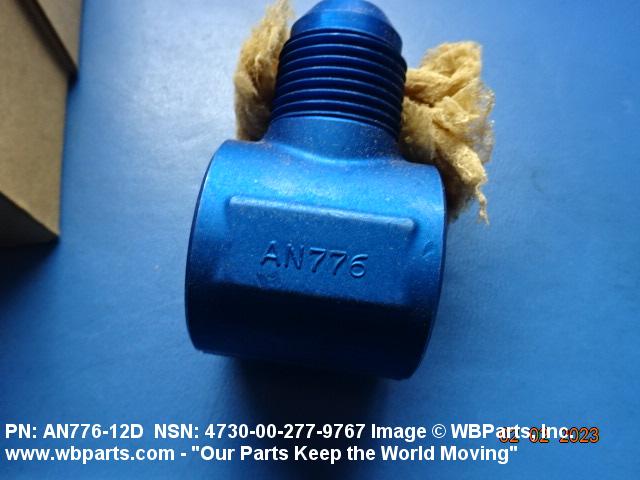

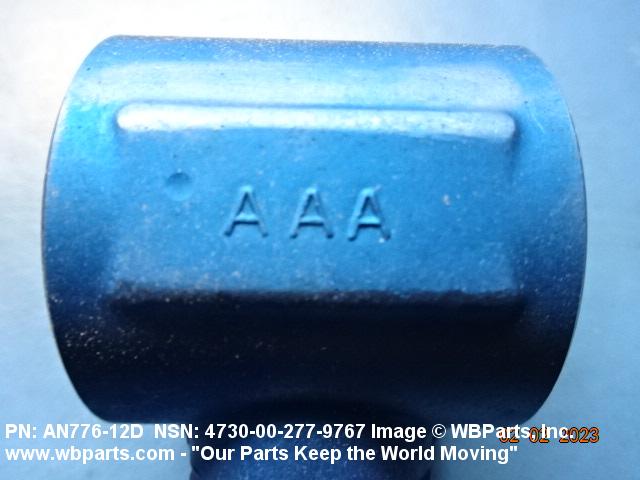

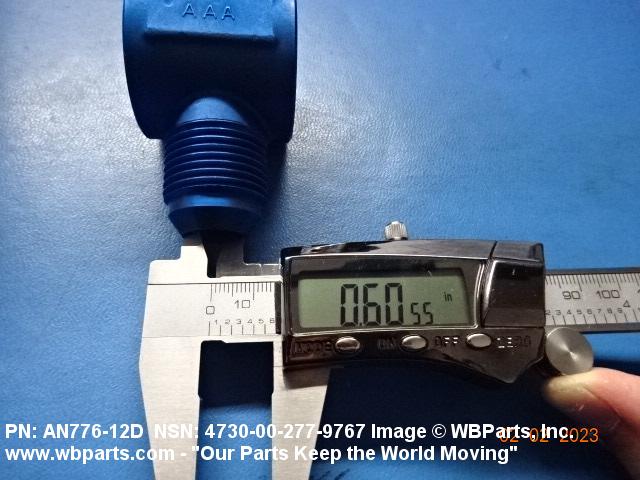

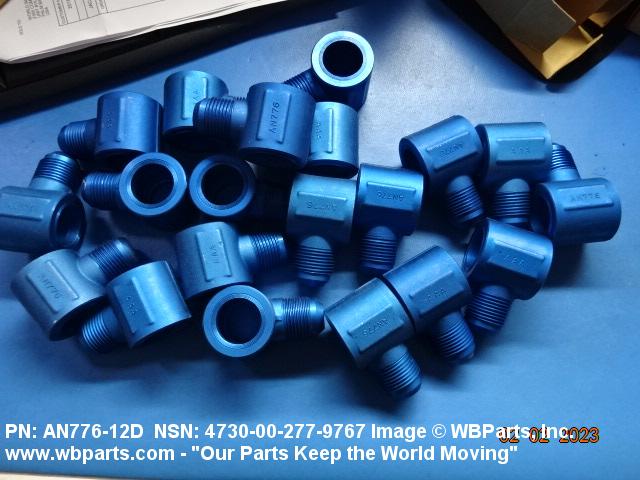

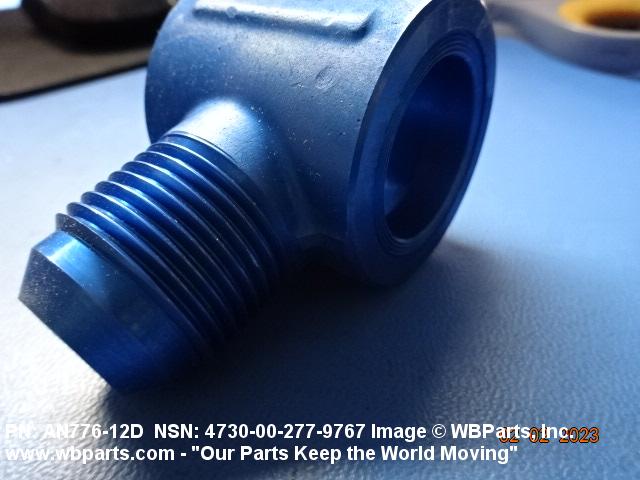

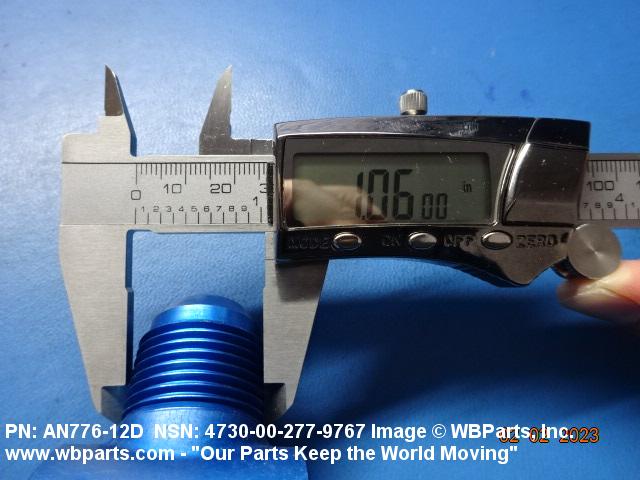

Drawings & Photos | NSN 4730-00-277-9767
Demand History | NSN 4730-00-277-9767
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-277-9767 | 2025-01-28 | 2 | United States |
| AN77612D | 2022-10-279 | 20 | South Africa |
| AN77612D | 2018-10-292 | 26 | South Africa |
| AN77612D | 2018-10-284 | 16 | South Africa |
| MILF5509 | 2018-07-201 | 6 | United States |
| AN77612D | 2015-09-273 | 12 | South Africa |
| AN77612D | 2015-08-224 | 24 | South Africa |
| MILF5509 | 2009-10-301 | 1 | PK |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-00-277-9767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN776-12D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN776-12D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN776-12D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN776-12D | 14397 | FABER ENTERPRISES, INC. |
| AN776-12D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN776-12D | 22995 | CROWN FITTING CO INC |
| AN776-12D | 30974 | AEROFIT, LLC |
| AN776-12D | 34724 | ACRA AEROSPACE INC |
| AN776-12D | 71563 | COLLINS ENGINEERING CORP |
| AN776-12D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN776-12D | R1120 | SATAIR A/S |
| AS4875/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-277-9767
Related Products | NSN 4730-00-277-9767
Technical Data | NSN 4730-00-277-9767
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-225/4, ALLOY 2014, T6 |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2, CLASS 2 |
| STYLE DESIGNATOR | D16 1 FLUID CONNECTION |

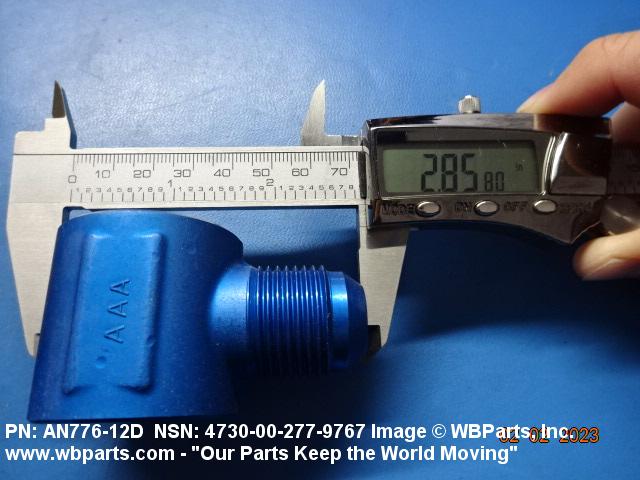

| OVERALL LENGTH | 2.844 INCHES NOMINAL |
| OVERALL WIDTH | 1.688 INCHES NOMINAL |

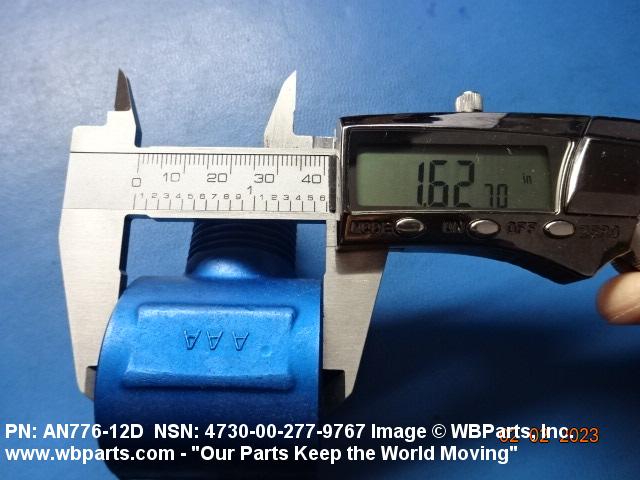

| THICKNESS | 1.615 INCHES MINIMUM AND 1.635 INCHES MAXIMUM |

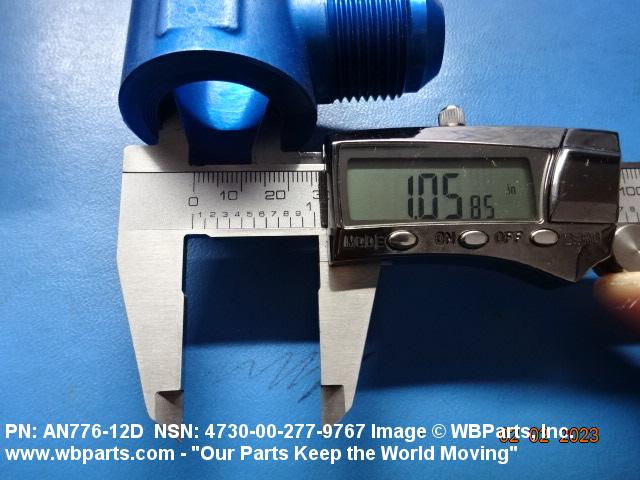

| BOLT HOLE DIAMETER | 1.062 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | G19 FLARED |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/4 IN. OD TUBE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 1-1/16 IN.-12 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 37.0 |
| BOLT HOLE FLATS SERRATIONS | PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
| SPECIFICATION/STANDARD DATA | 88044-AN776 GOVERNMENT STANDARD AND 81343-AS4875/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN776-12D |
Restrictions/Controls & Freight Information | NSN 4730-00-277-9767
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-277-9767
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
