Product Details | TUBE FITTING BRAZING FERRULE
4730-00-278-0837 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Part Alternates: AN8002, AN800-2, MILF6001, 163D4, 4730-00-278-0837, 00-278-0837, 4730002780837, 002780837
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-278-0837 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |

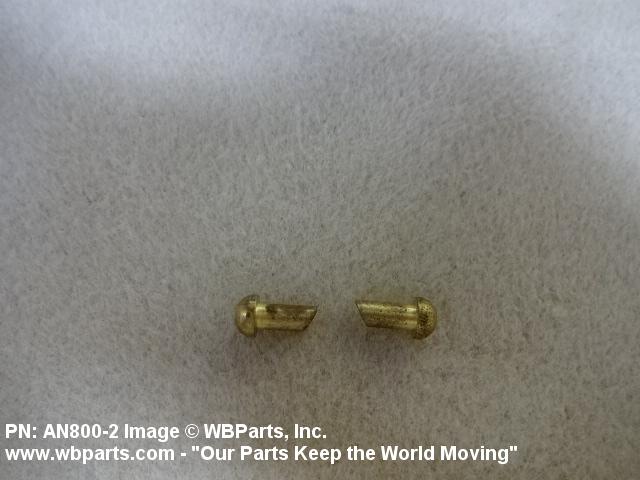

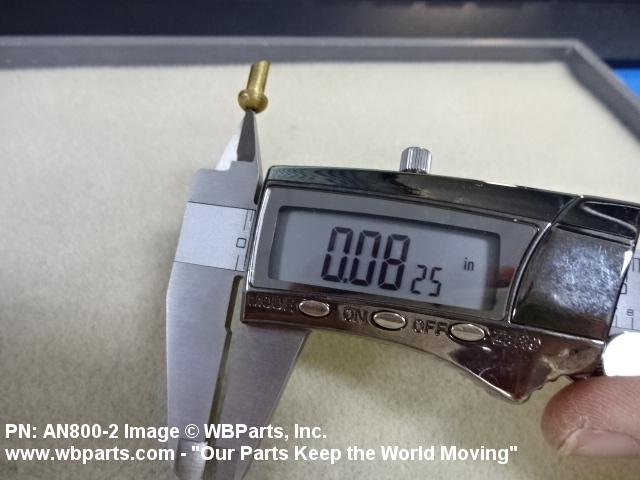

Drawings & Photos | NSN 4730-00-278-0837
Demand History | NSN 4730-00-278-0837
Cross Reference | NSN 4730-00-278-0837
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 163D4 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| AN800-2 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| AN800-2 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MILF6001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-278-0837
Related Products | NSN 4730-00-278-0837
4730-00-278-0842, 4730-00-278-0849, 4730-00-278-0850, 4730-00-278-0851, 4730-00-278-0860
Technical Data | NSN 4730-00-278-0837
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.125 INCHES NOMINAL |
| STYLE DESIGNATOR | J1 COMPRESSION |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| FLANGE WIDTH | 0.125 INCHES NOMINAL |
| FLANGE INSIDE DIAMETER | 0.076 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.265 INCHES NOMINAL |
| SEAT RADIUS | 0.141 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 0.165 INCHES NOMINAL |
| DISTANCE FROM FLANGED END TO TUBING CLEARANCE HOLE | 0.156 INCHES NOMINAL |
| FLANGE FACE DIAMETER | 0.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN800-2 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILF6001 |
Restrictions/Controls & Freight Information | NSN 4730-00-278-0837
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
