Product Details | PIPE TO TUBE ELBOW
4730-00-278-4679 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS208221012D, MS20822-10-12D, AN8221012D, AN822-10-12D, AN822225B, AN8222-25B , AN82225B, AN822-25B , AS4842/1, AS48421, AS519W1012, 4730-00-278-4679, 00-278-4679, 4730002784679, 002784679
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-278-4679 | 03770 ( ELBOW, PIPE TO TUBE ) |

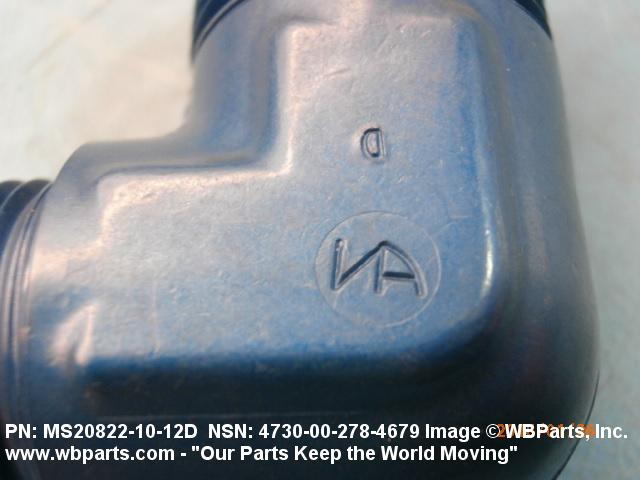

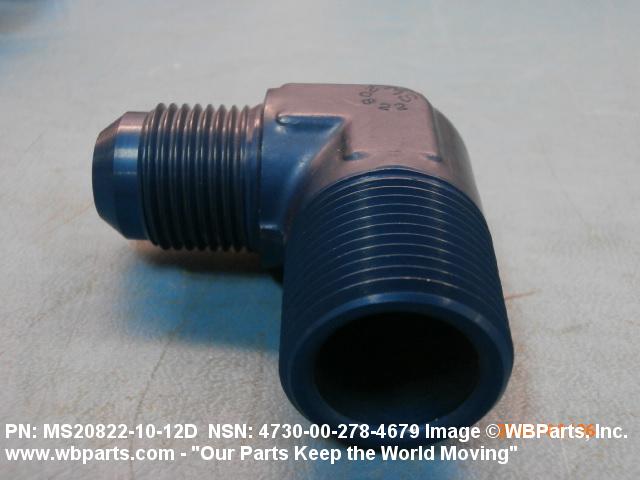

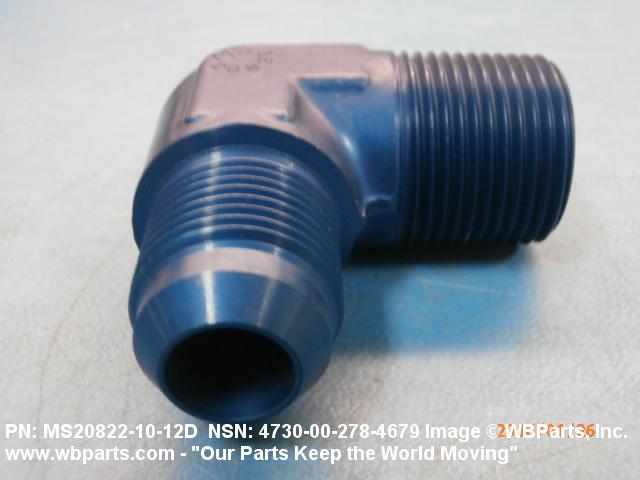

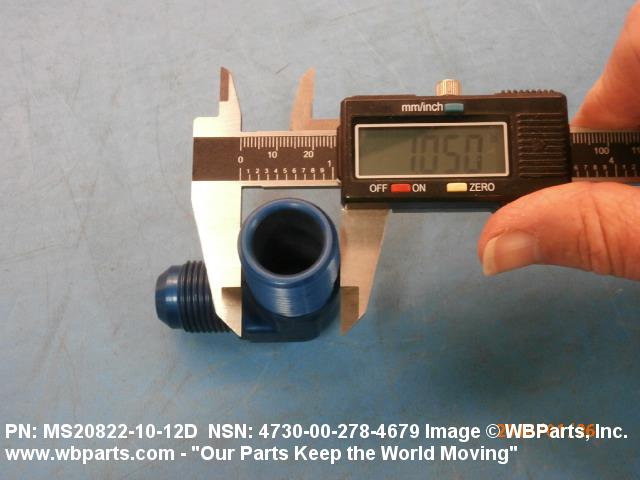

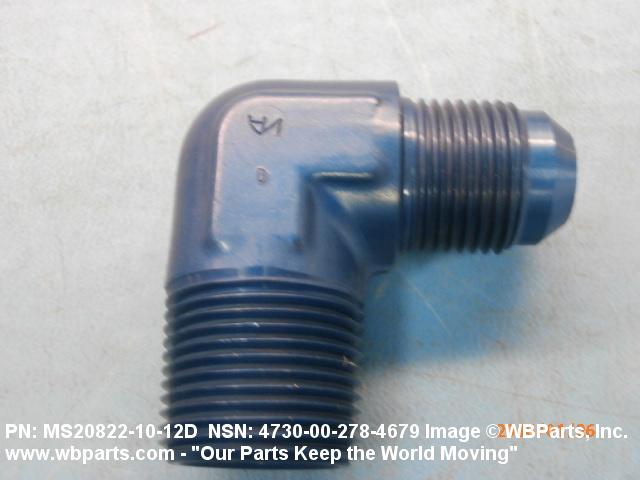

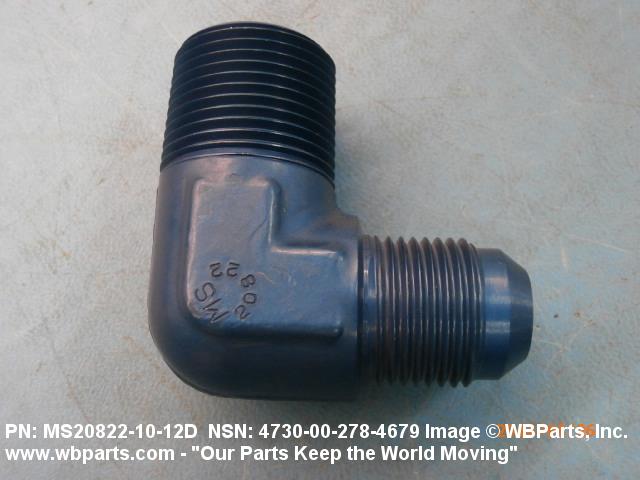

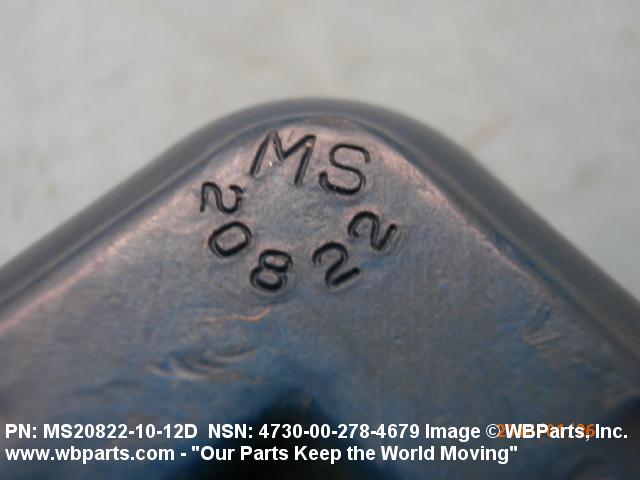

Drawings & Photos | NSN 4730-00-278-4679
Demand History | NSN 4730-00-278-4679
Cross Reference | NSN 4730-00-278-4679
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN822-10-12D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS519W1012 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20822-10-12D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-278-4679
Related Products | NSN 4730-00-278-4679
4730-00-278-4680, 4730-00-278-4681, 4730-00-278-4684, 4730-00-278-4685, 4730-00-278-4687
Technical Data | NSN 4730-00-278-4679
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE INSIDE MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END ANPT 2ND END |
| NOMINAL THREAD SIZE | 0.875 INCHES 1ST END 0.750 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END |

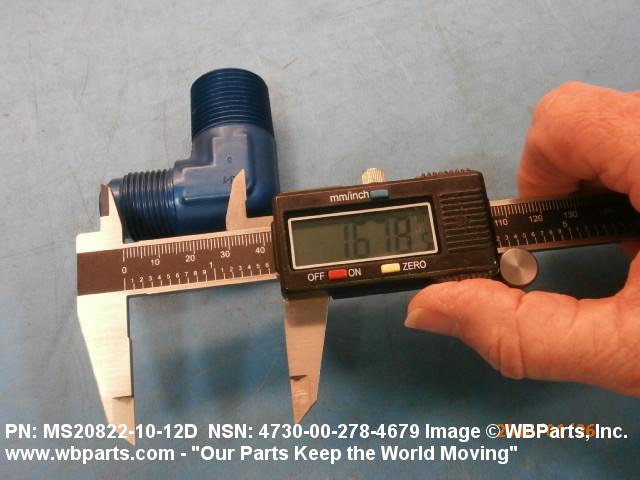

| LEG LENGTH | 1.625 INCHES MINIMUM AND 1.672 INCHES MAXIMUM 1ST END 1.562 INCHES MINIMUM AND 1.609 INCHES MAXIMUM 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| SPECIFICATION/STANDARD DATA | 96906-MS20822 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20822-10-12D |
Restrictions/Controls & Freight Information | NSN 4730-00-278-4679
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
