Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-278-5818 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 272217, 5283333, 4730-00-278-5818, 00-278-5818, 4730002785818, 002785818
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-278-5818 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-278-5818
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-278-5818
Technical Data | NSN 4730-00-278-5818
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |

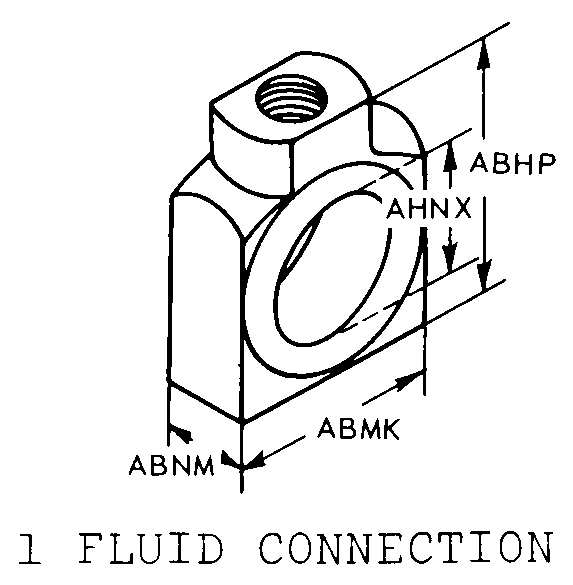

| STYLE DESIGNATOR | D1 1 FLUID CONNECTION |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| THICKNESS | 0.875 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.713 INCHES MINIMUM AND 0.721 INCHES MAXIMUM |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | E2 INVERTED FLARE |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 1/2 IN. OD TUBE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 3/4 IN-18 |
| SCREW THREAD SERIES DESIGNATOR | UNS |
| THREAD CLASS | 2A |
| SEAT | NOT INCLUDED |
| BOLT HOLE FLATS SERRATIONS | PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
