NSN 4730-00-283-4972 0MP25063, 0MP2506-3, 7127M42P03

Product Details | QUICK DISCONNECT COUPLING HALF


4730-00-283-4972 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: 0MP25063, 0MP2506-3, 7127M42P03 , 4730-00-283-4972, 00-283-4972, 4730002834972, 002834972

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 22 AUG 1973 00-283-4972

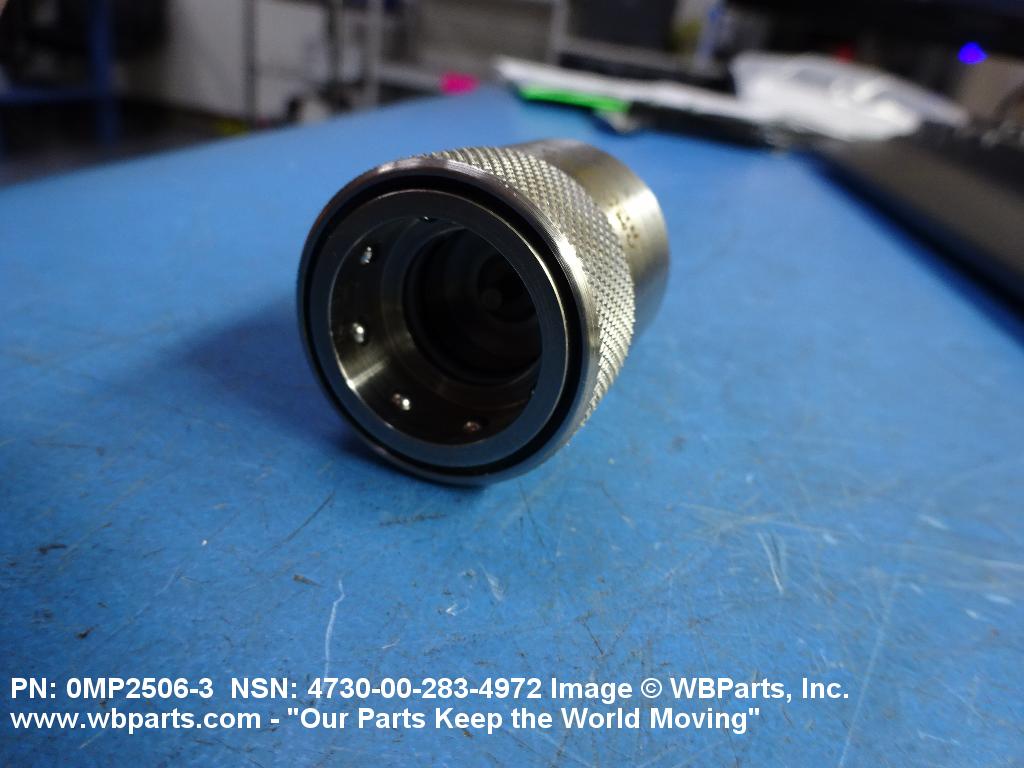

Drawings & Photos | NSN 4730-00-283-4972



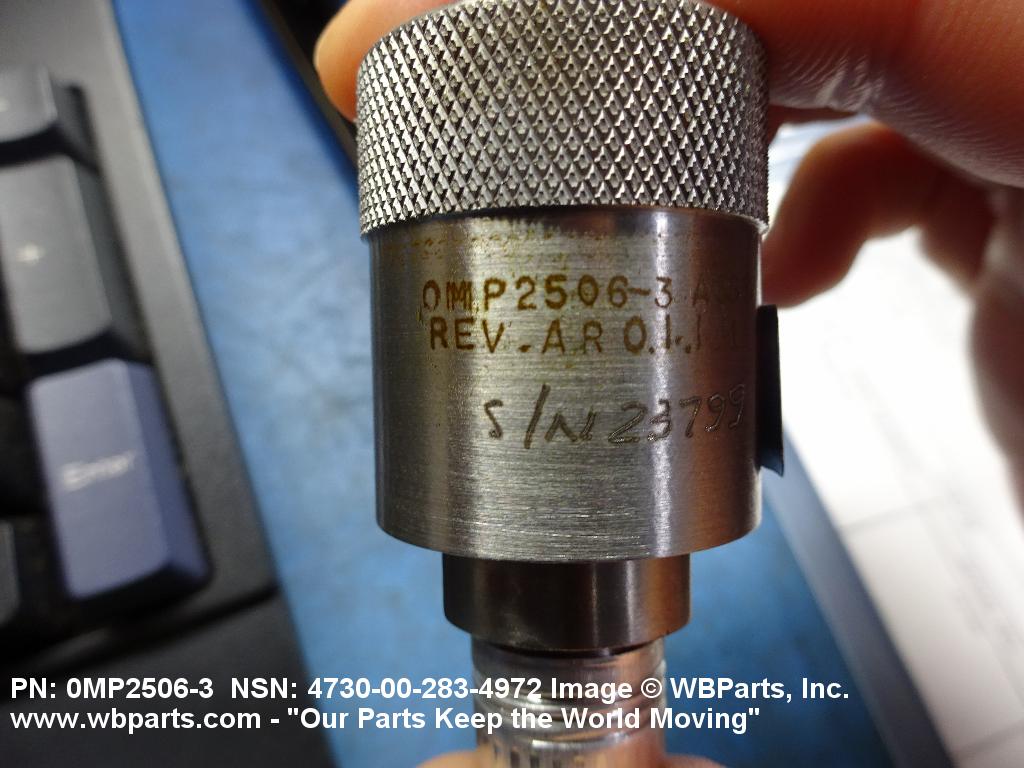

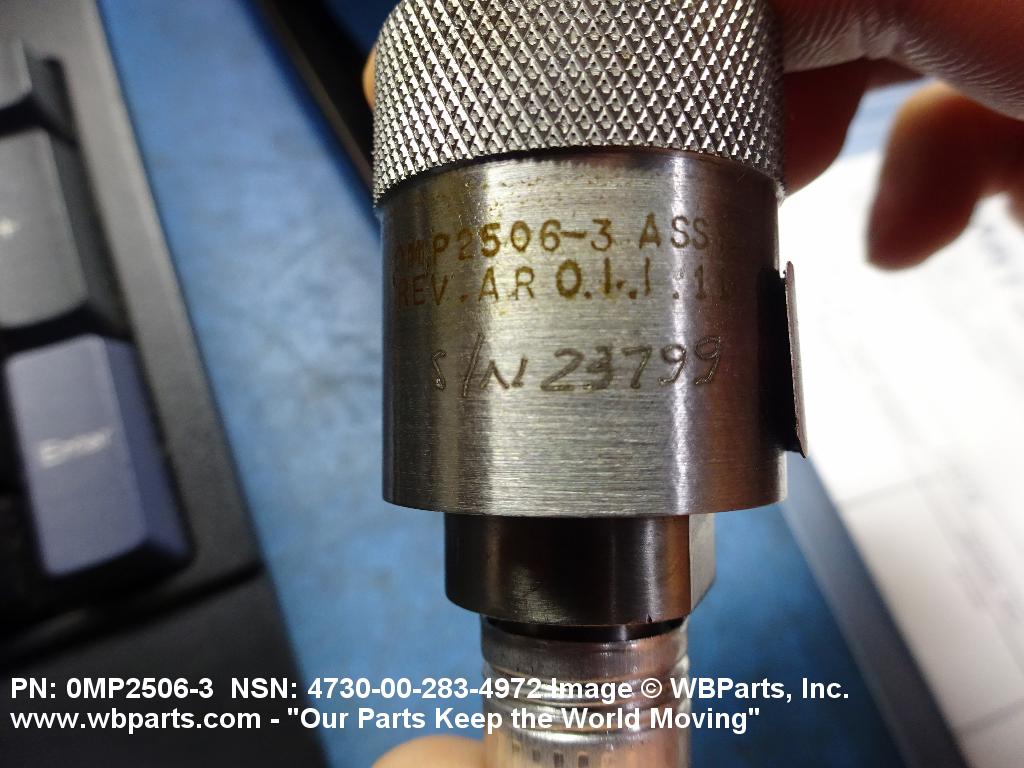

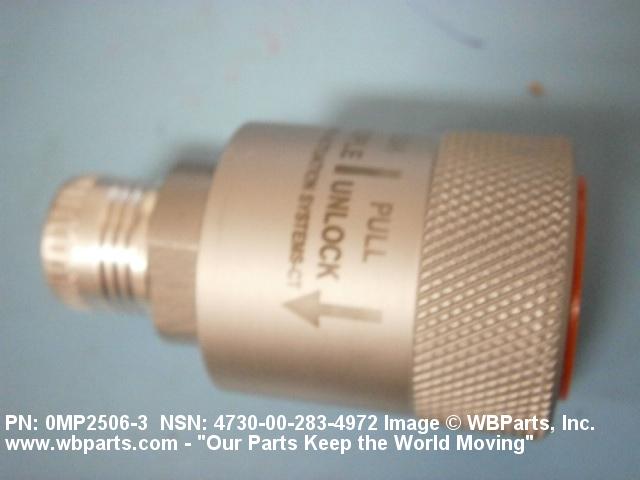

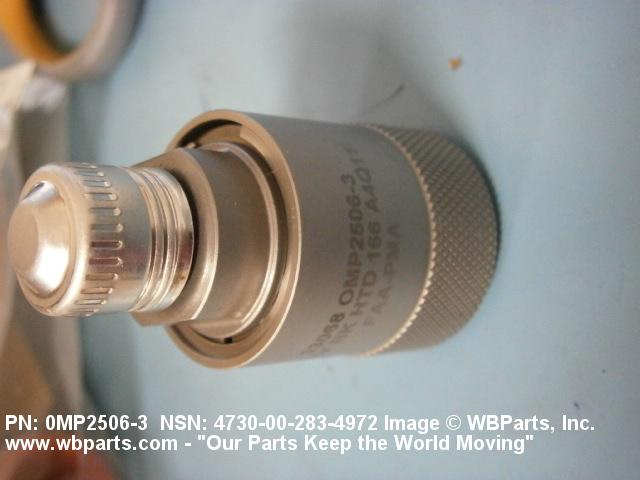

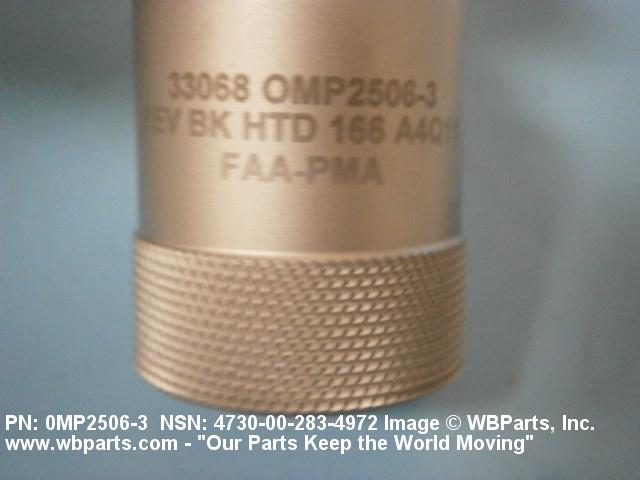

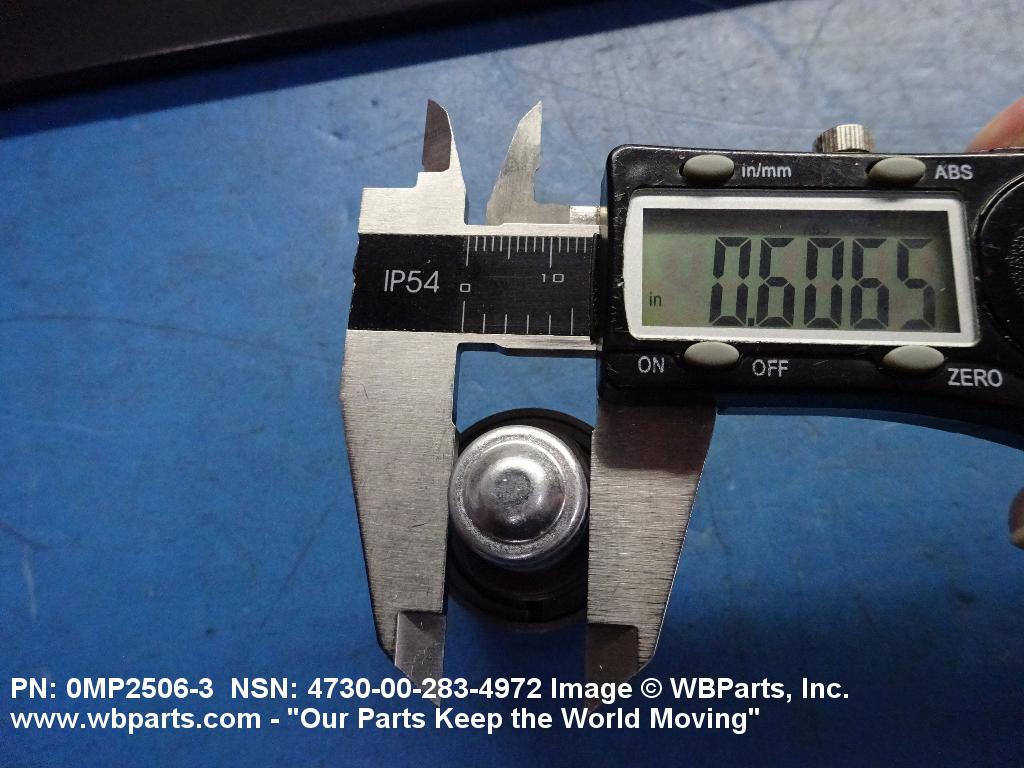

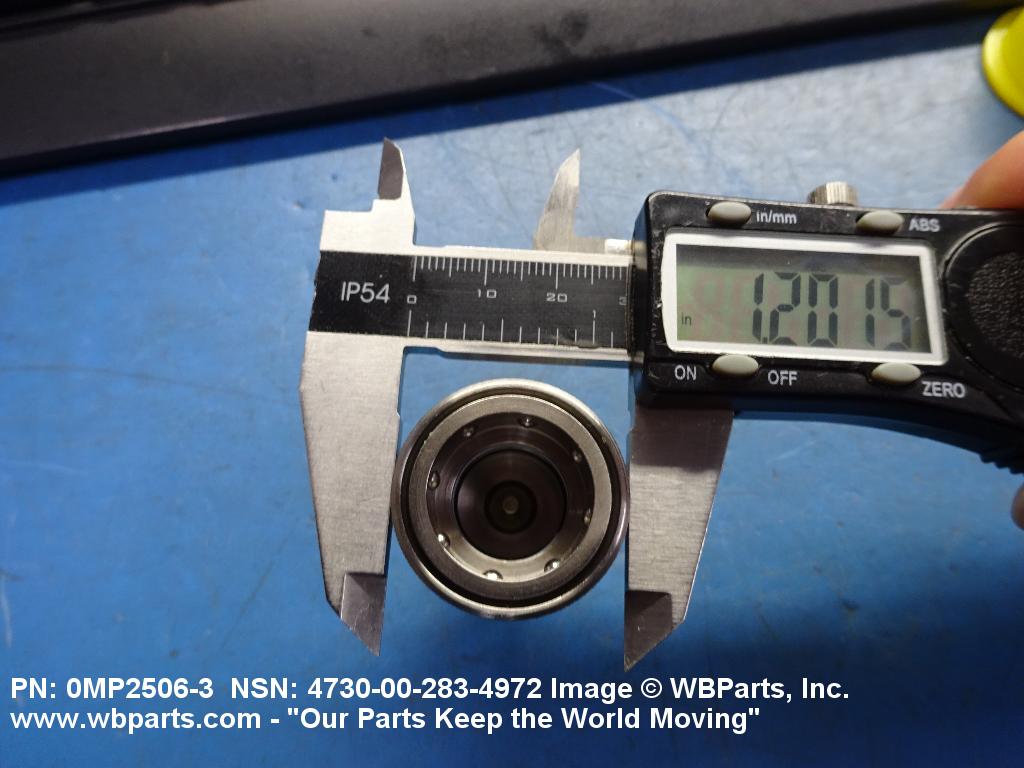

Demand History | NSN 4730-00-283-4972


Part Number Request Date QTY Origin
0MP25063 2023-11-29 2 United States
0MP2506-3 2023-07-10 17 DIBBS
0MP2506-3 2023-06-28 17 DIBBS
0MP25063 2023-06-23 1 US
4730-00-283-4972 2022-11-01 1 us
4730-00-283-4972 2022-09-14 1 United States
0MP2506-3 2022-09-01 19 DIBBS
4730-00-283-4972 2022-08-11 6 ES
4730-00-283-4972 2022-08-11 1 ES
4730-00-283-4972 2022-04-11 277 US
4730-00-283-4972 2021-10-22 2 US
0MP25063 2021-06-07 1 IT
4730-00-283-4972 2021-05-28 1 United States
4730-00-283-4972 2021-02-28 1 SG
4730-00-283-4972 2021-01-18 1 CL
0MP2506-3 2020-11-02 24 DIBBS
0MP2506-3 2020-10-20 24 DIBBS
0MP2506-3 2020-08-20 5 DIBBS
4730-00-283-4972 2019-11-06 10 US
7127M42P03 2019-07-26 4 United States
4730-00-283-4972 2019-07-14 2 CA
4730-00-283-4972 2019-02-17 2 US
0MP2506-3 2019-01-31 29 DIBBS
4730-00-283-4972 2019-01-14 1 Netherlands
4730-00-283-4972 2018-11-21 1 United States
4730-00-283-4972 2018-03-28 10 IN
0MP25063 2017-09-19 1 us
4730-00-283-4972 2017-09-14 2 United States
4730-00-283-4972 2017-08-17 2 US
4730-00-283-4972 2016-03-03 26 DIBBS
4730-00-283-4972 2015-05-14 2 YU
4730-00-283-4972 2015-03-19 26 DIBBS
4730-00-283-4972 2014-08-10 1984 DIBBS
4730-00-283-4972 2013-05-23 14 DIBBS
4730-00-283-4972 2012-06-01 8 DIBBS
4730-00-283-4972 2012-05-21 4 DIBBS
4730-00-283-4972 2012-02-23 3 DIBBS
4730-00-283-4972 2012-02-23 4 DIBBS
4730-00-283-4972 2011-12-07 7 DIBBS
4730-00-283-4972 2011-11-18 4 DIBBS
4730-00-283-4972 2011-10-20 3 DIBBS
0MP25063 2011-03-23 1 FX
4730-00-283-4972 2008-12-01 12 DIBBS

Cross Reference | NSN 4730-00-283-4972


Part Number Cage Code Manufacturer
0MP2506-3 33068 TRIUMPH ACTUATION SYSTEMS - CONNECTICUT, LLC
7127M42P03 07482 GENERAL ELECTRIC COMPANY DBA GE

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 4730-00-283-4972


Technical Data | NSN 4730-00-283-4972


Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING BODY
STYLE DESIGNATOR A1 MALE COUPLING HALF

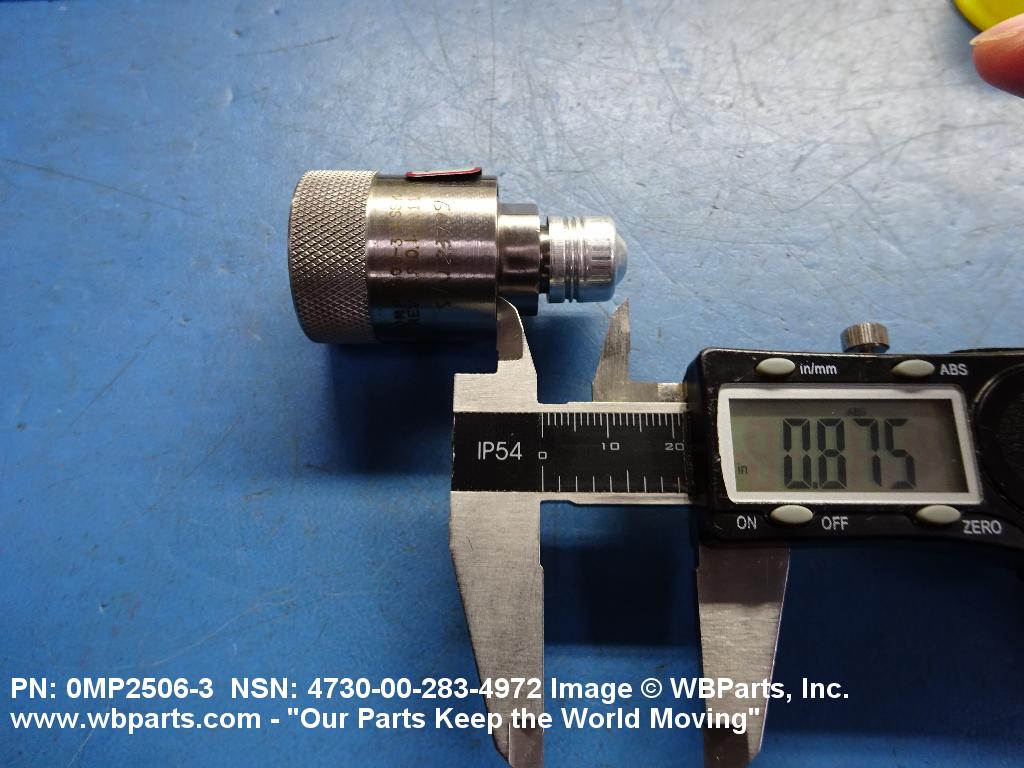

LEG LENGTH 0.875 INCHES NOMINAL
