NSN 4730-00-287-0112 AN80606, AN8066D, AN806-6D
Product Details | THREADED TUBE FITTING PLUG
4730-00-287-0112 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: AN80606, AN8066D, AN806-6D, AN806D6, AS5168D06, MILF5509A, 200747, 68D2411082005, 68D241108-2005, 8111210, 8537134, 4730-00-287-0112, 00-287-0112, 4730002870112, 002870112
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-287-0112 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

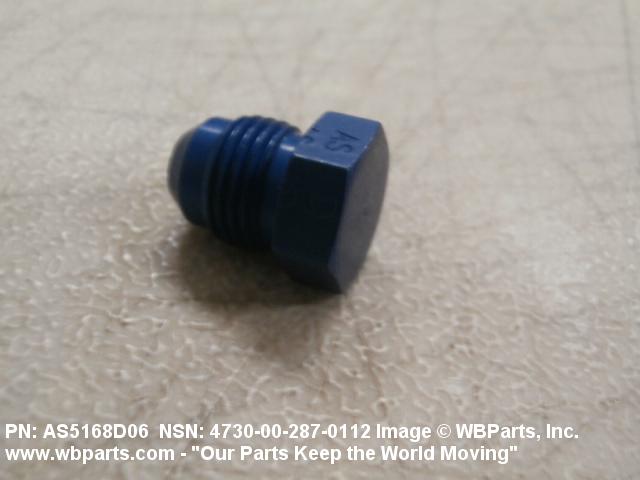

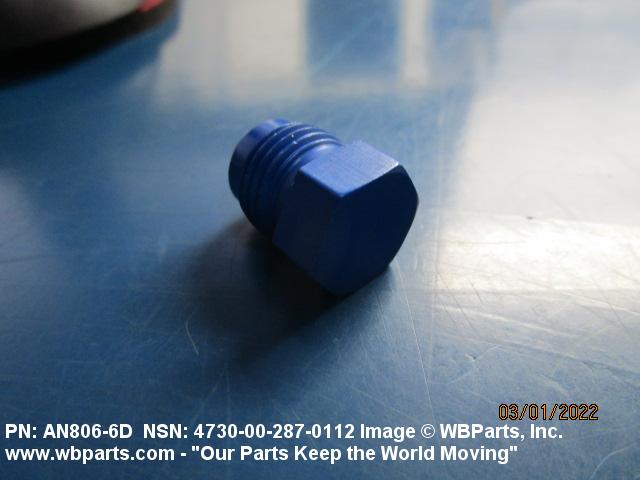

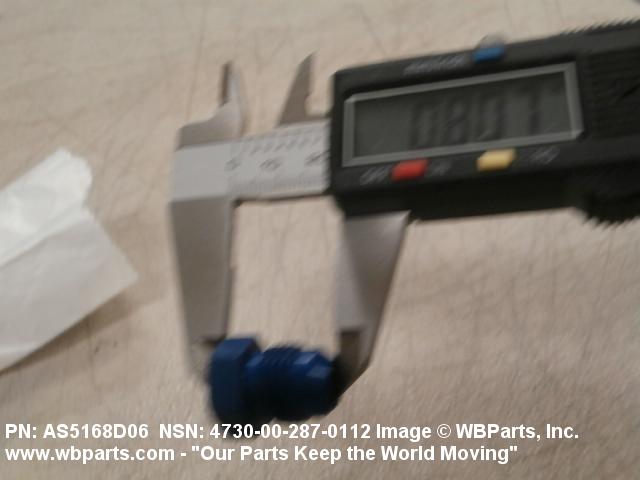

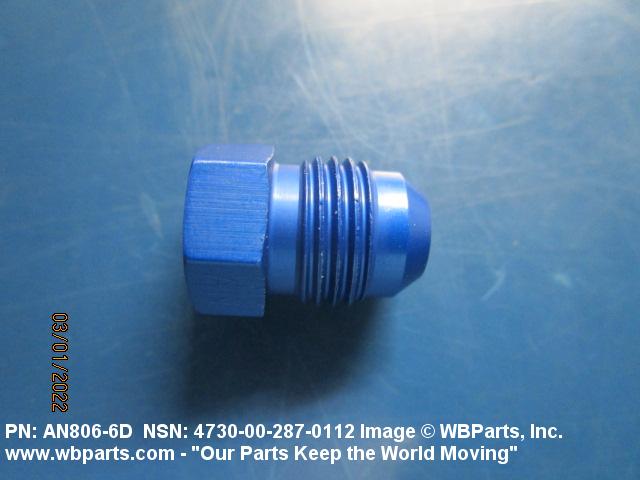

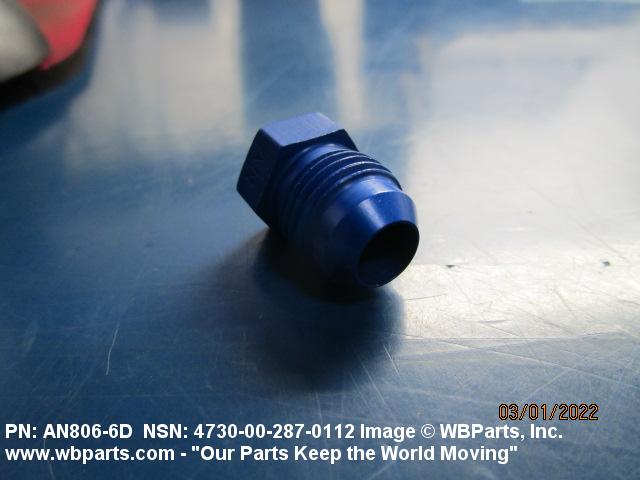

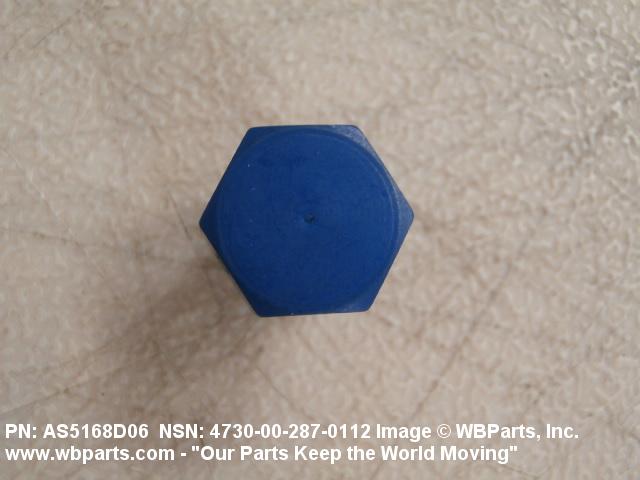

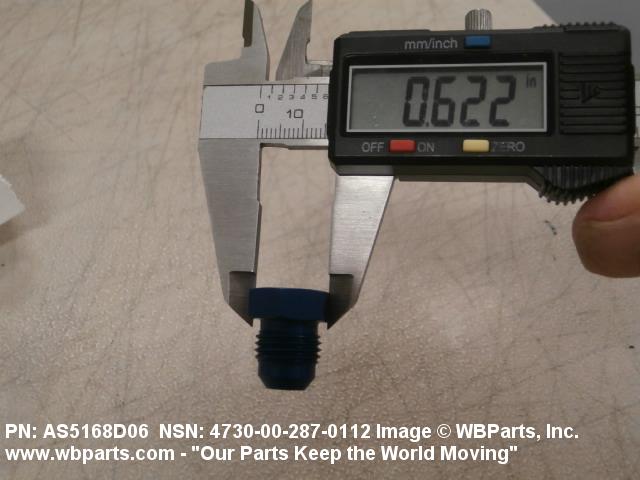

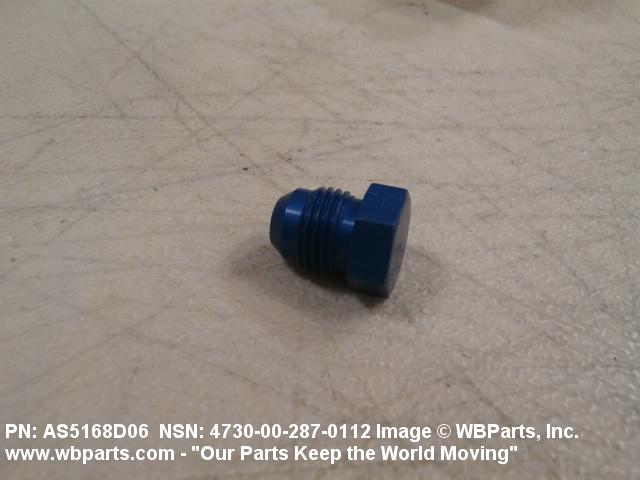

Drawings & Photos | NSN 4730-00-287-0112
Demand History | NSN 4730-00-287-0112
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-287-0112 | 2025-11-328 | 17339 | DIBBS |
| 4730-00-287-0112 | 2025-11-317 | 17339 | DIBBS |
| 4730-00-287-0112 | 2025-09-258 | 17339 | DIBBS |
| 4730-00-287-0112 | 2025-09-246 | 17339 | DIBBS |
| 4730-00-287-0112 | 2022-02-45 | 10 | United States |
| AN8066D | 2021-02-47 | 8 | South Africa |
| 4730-00-287-0112 | 2020-03-66 | 100 | United States |
| 4730-00-287-0112 | 2019-06-175 | 1 | US |
| 4730-00-287-0112 | 2018-10-277 | 1757 | DIBBS |
| 4730-00-287-0112 | 2018-04-100 | 40500 | DIBBS |
| 4730-00-287-0112 | 2018-01-03 | 17540 | DIBBS |
| 4730-00-287-0112 | 2017-11-334 | 71054 | DIBBS |
| AN806D6 | 2017-09-257 | 12 | US |
| 4730-00-287-0112 | 2017-03-72 | 104 | United States |
| 4730-00-287-0112 | 2016-08-238 | 1 | United States |
| AN806D6 | 2015-04-120 | 200 | China |
| AS5168D06 | 2014-03-83 | 1 | United States |
| 4730-00-287-0112 | 2012-11-331 | 380 | US |
| AN8066D | 2012-05-124 | 10 | MY |
| 4730-00-287-0112 | 2012-01-26 | 4713 | DIBBS |
| 4730-00-287-0112 | 2011-11-327 | 3925 | DIBBS |
| 4730-00-287-0112 | 2011-09-255 | 6568 | DIBBS |
| 4730-00-287-0112 | 2011-07-188 | 5136 | DIBBS |
| 4730-00-287-0112 | 2010-11-319 | 6 | United States |
| AN806D6 | 2010-05-140 | 40 | Singapore |
| 4730-00-287-0112 | 2010-02-57 | 240 | US |
| AS5168D06 | 2007-09-254 | 100 | IT |
Cross Reference | NSN 4730-00-287-0112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200747 | H0G87 | WIBA ZEVENAAR B.V. |
| 68D241108-2005 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 8111210 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 8537134 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AN806-6D | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AN806-6D | 06581 | ALLAN AIRCRAFT SUPPLY CO, LLC |
| AN806-6D | 13899 | HYDRO FITTING MANUFACTURING CORPORATION |
| AN806-6D | 14397 | FABER ENTERPRISES, INC. |
| AN806-6D | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| AN806-6D | 22995 | CROWN FITTING CO INC |
| AN806-6D | 30974 | AEROFIT, LLC |
| AN806-6D | 71563 | COLLINS ENGINEERING CORP |
| AN806-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN806-6D | R1120 | SATAIR A/S |
| AN80606 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN806D6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS4841 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5168D06 | 59680 | B. & E. MANUFACTURING CO., INC. |
| AS5168D06 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MILF5509A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-287-0112
Technical Data | NSN 4730-00-287-0112
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| STYLE DESIGNATOR | C42 PLUG, TUBE FITTING FLARED |

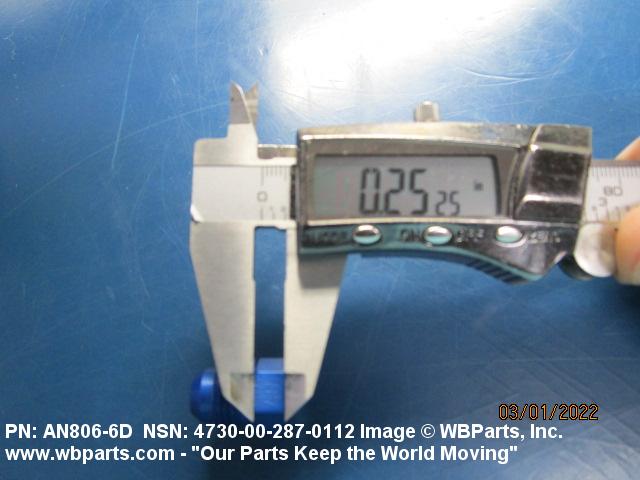

| HEAD HEIGHT | 0.256 INCHES NOMINAL |

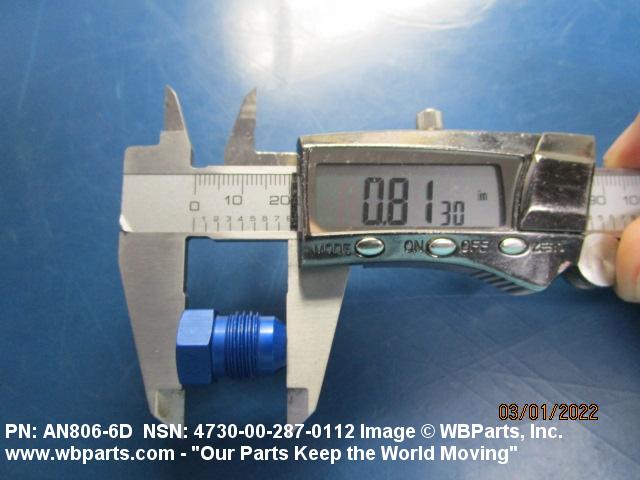

| OVERALL LENGTH | 0.812 INCHES NOMINAL |
| CONNECTION STYLE | J4 FLARED |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |

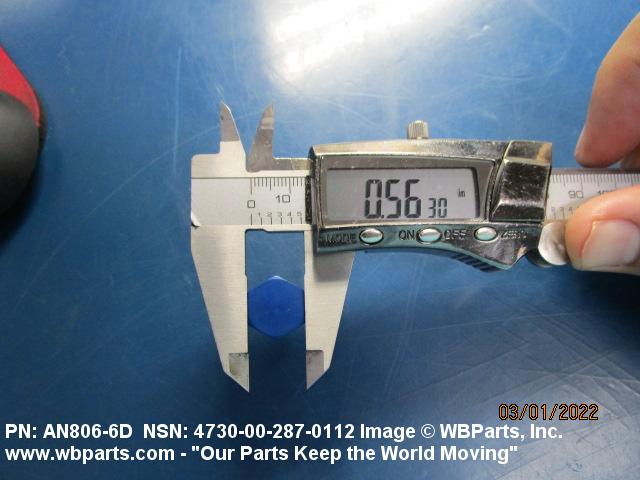

| NOMINAL THREAD SIZE | 0.562 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
Restrictions/Controls & Freight Information | NSN 4730-00-287-0112
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
