NSN 4730-00-289-0786 MS20756D24, AN756D24, 964424D

Product Details | SWIVEL RETAINING PIPE FLANGE

4730-00-289-0786 An item having an unthreaded hole with a recessed shoulder for the purpose of retaining a swivel type pipe, tube, or hose fitting. The face may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. Excludes ADAPTER (as modified).

Part Alternates: MS20756D24, AN756D24, 964424D, 9644-24D, 4730-00-289-0786, 00-289-0786, 4730002890786, 002890786

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-289-0786	03799 ( FLANGE, PIPE, SWIVEL RETAINING )

Drawings & Photos | NSN 4730-00-289-0786

Part Number	Request Date	QTY	Origin
4730-00-289-0786	2025-07-202	145	DIBBS
4730-00-289-0786	2025-07-198	41	DIBBS
4730-00-289-0786	2025-05-139	37	DIBBS
4730-00-289-0786	2025-05-128	37	DIBBS
4730-00-289-0786	2025-04-91	104	DIBBS
4730-00-289-0786	2025-03-86	13	DIBBS
4730-00-289-0786	2024-01-11	91	DIBBS
4730-00-289-0786	2022-04-108	121	DIBBS
4730-00-289-0786	2013-08-237	1	United States
4730-00-289-0786	2011-05-132	2	United States
4730-00-289-0786	2009-04-118	36	US

Cross Reference | NSN 4730-00-289-0786

Part Number	Cage Code	Manufacturer
9644-24D	00624	EATON CORPORATION DBA AEROSPACE DIV
9644-24D	R1120	SATAIR A/S
AN756D24	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MS20756D24	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MS20756D24	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-289-0786

Compare

Related Products | NSN 4730-00-289-0786

4730-00-289-0787, 4730-00-289-0788, 4730-00-289-0789, 4730-00-289-0790, 4730-00-289-0791

Technical Data | NSN 4730-00-289-0786

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY
SURFACE TREATMENT	ANODIZE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TYPE 2 MIL SPEC 1ST TREATMENT RESPONSE

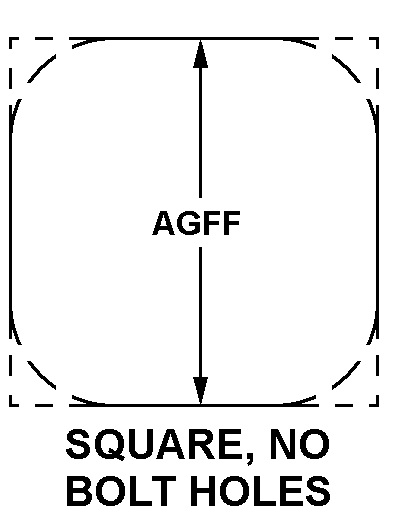

STYLE DESIGNATOR	15 SQUARE, NO BOLT HOLES
