NSN 4730-00-302-8641 MS208194D, MS20819-4D, 00-302-8641
Product Details | TUBE FITTING FLARED SLEEVE
4730-00-302-8641 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS208194D, MS20819-4D, 4730-00-302-8641, 00-302-8641, 4730003028641, 003028641
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 FEB 1998 | 00-302-8641 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

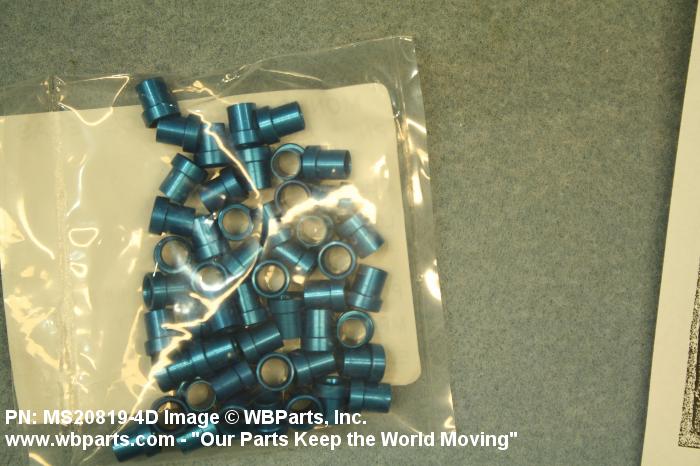

Drawings & Photos | NSN 4730-00-302-8641
Demand History | NSN 4730-00-302-8641
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS208194D | 2025-11-314 | 25 | United States |
| MS208194D | 2025-02-43 | 20 | United States |
| MS208194D | 2024-11-323 | 40 | United States |
| 4730-00-302-8641 | 2024-05-135 | 2 | United States |
| MS208194D | 2022-04-108 | 40 | United States |
| 4730-00-302-8641 | 2018-07-197 | 4 | Taiwan |
| MS208194D | 2017-11-307 | 10 | TH |
| MS208194D | 2017-03-81 | 30 | Brazil |
| 4730-00-302-8641 | 2017-02-40 | 1 | US |
| 4730-00-302-8641 | 2017-02-40 | 1 | US |
| MS208194D | 2016-06-168 | 8 | China |
| 4730-00-302-8641 | 2010-04-111 | 4 | India |
| MS208194D | 2007-10-302 | 200 | US |
| 4730-00-302-8641 | 2007-07-212 | 50 | US |
Cross Reference | NSN 4730-00-302-8641
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20819-4D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-302-8641
Technical Data | NSN 4730-00-302-8641
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2 |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | M4 SLEEVE |
| OVERALL LENGTH | 0.390 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| FLANGE WIDTH | 0.125 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.380 INCHES MINIMUM AND 0.383 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 33.0 |
| SLEEVE OUTSIDE DIAMETER | 0.294 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20819-4D |
Restrictions/Controls & Freight Information | NSN 4730-00-302-8641
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | 9Z | DLIS-K Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-302-8641
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
