NSN 4730-00-307-8332 RF1420, 00-307-8332, 003078332
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-307-8332 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: RF1420, 4730-00-307-8332, 00-307-8332, 4730003078332, 003078332
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 OCT 1973 | 00-307-8332 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

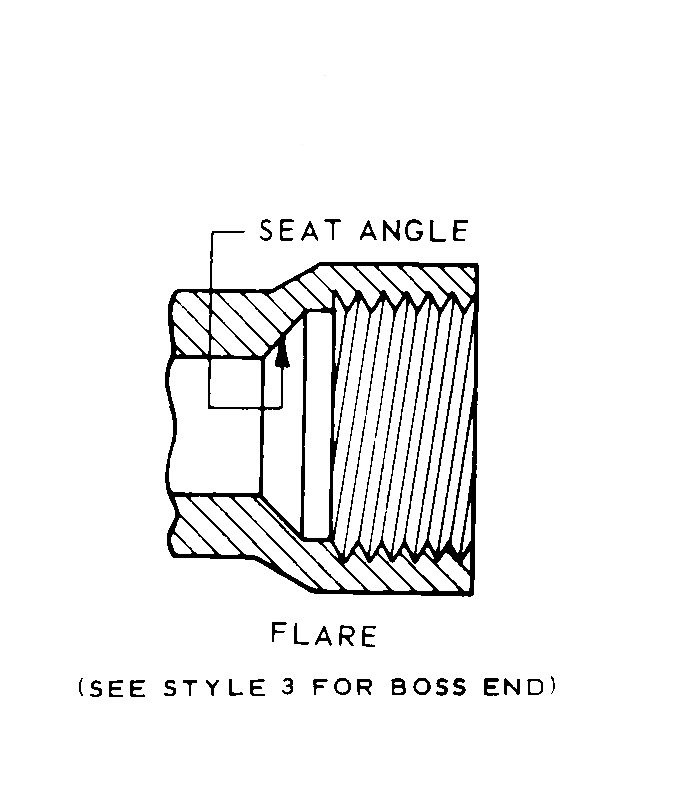

Drawings & Photos | NSN 4730-00-307-8332
Cross Reference | NSN 4730-00-307-8332
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RF1420 | 66289 | WISCONSIN MOTORS LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-307-8332
Technical Data | NSN 4730-00-307-8332
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | D28 3 FLUID CONNECTIONS W/MOUNTING HOLES |
| OVERALL LENGTH | 1.630 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| THICKNESS | 0.875 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |
| FLUID CONNECTION QUANTITY | 4 |
| CONNECTION STYLE | E15 FLARE E15 FLARE E2 INVERTED FLARE G31 GASKET SEAL |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 1/4 IN. OD TUBE; 3/16 OD TUBE; 3/16 OD TUBE; 1/8 IN. NOM PIPE SIZE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 7/16 IN.-27 3/8 IN.-27 3/8 IN.-27 1/8 IN.-27 |
| SCREW THREAD SERIES DESIGNATOR | UNS UNS NS NPT |
| THREAD CLASS | 2B 2B 2B 2A |
| THREAD DIRECTION | RIGHT-HAND RIGHT-HAND RIGHT-HAND RIGHT-HAND |
| SEAT | INCLUDED INCLUDED INCLUDED |
| SEAT ANGLE IN DEG | 37.0 37.0 42.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | NOT PROVIDED |
Restrictions/Controls & Freight Information | NSN 4730-00-307-8332
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
