NSN 4730-00-351-0892 AN81516K, AN815-16K, AS4841
Product Details | BOSS NIPPLE
4730-00-351-0892 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.
Part Alternates: AN81516K, AN815-16K, AS4841, 4730-00-351-0892, 00-351-0892, 4730003510892, 003510892
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30-JAN-74 | 00-351-0892 | 26952 ( NIPPLE, BOSS ) |

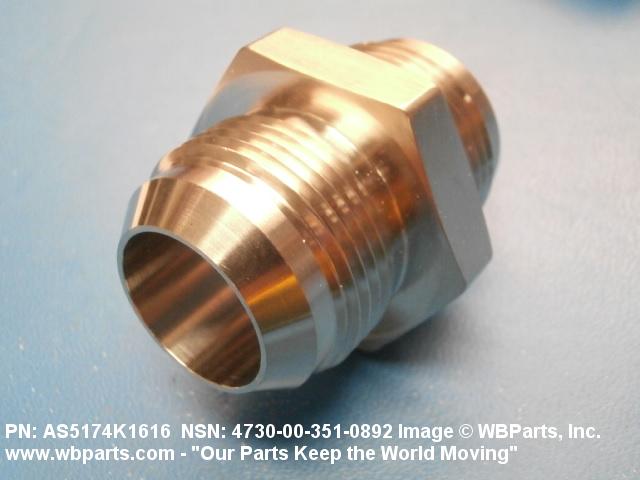

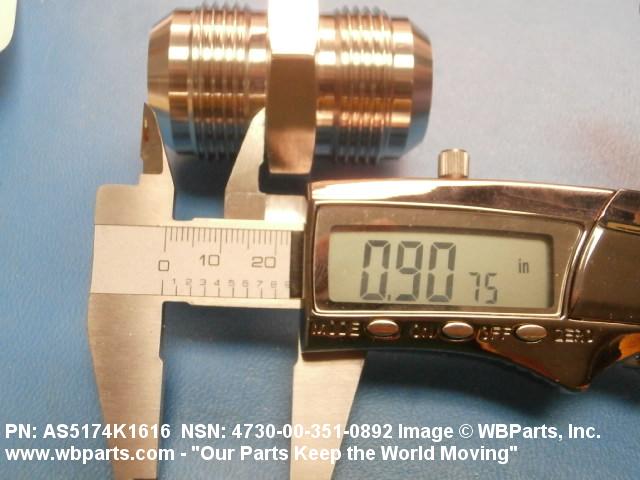

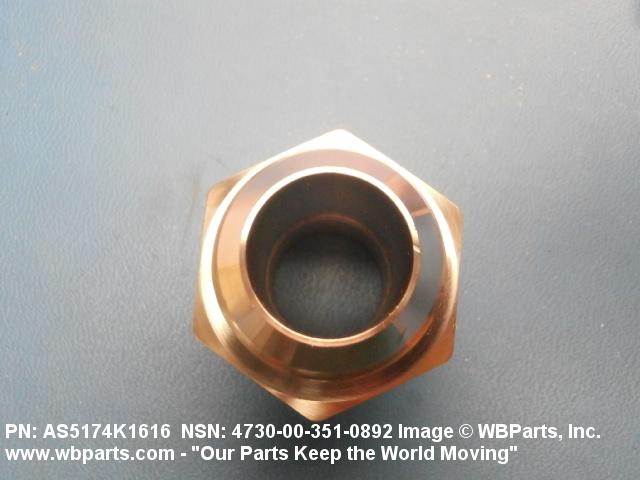

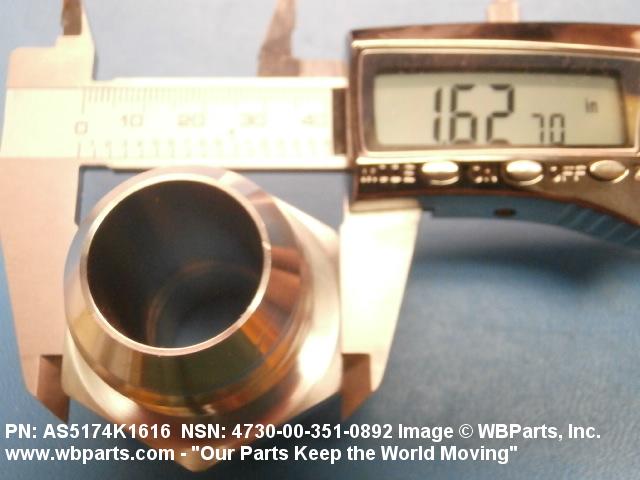

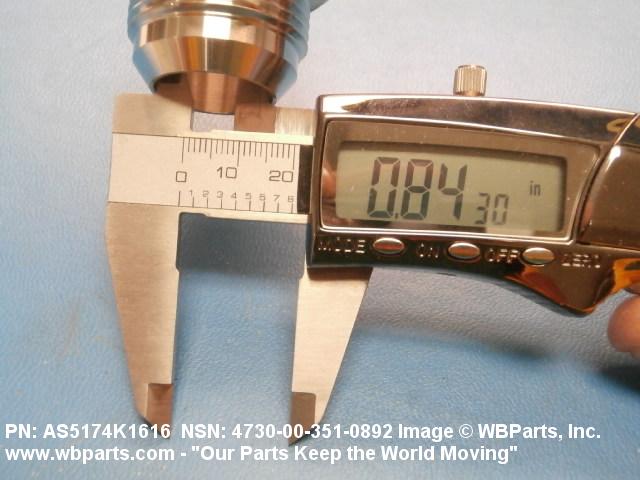

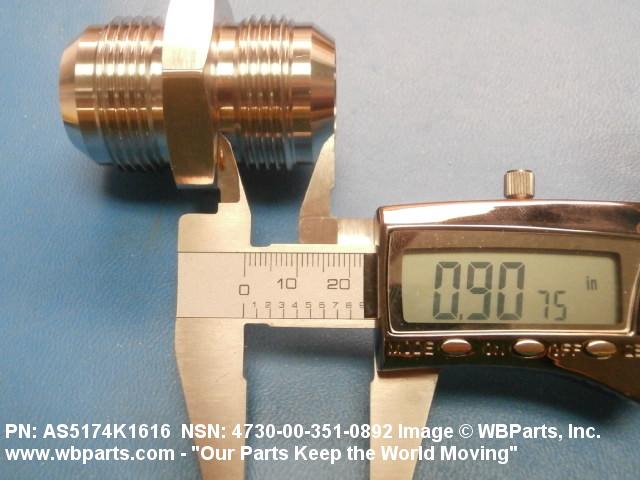

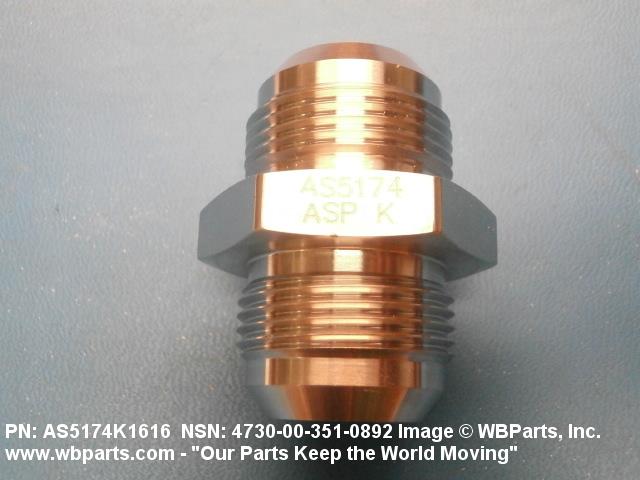

Drawings & Photos | NSN 4730-00-351-0892
Demand History | NSN 4730-00-351-0892
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS4841 | 2025-04-106 | 1 | France |
| 4730-00-351-0892 | 2015-03-62 | 15 | United States |
| AS4841 | 2011-03-69 | 8 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-351-0892
Technical Data | NSN 4730-00-351-0892
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A56 FLARED W/CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |
| CONNECTION STYLE | B81 FLARED W/GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ ALL ENDS |

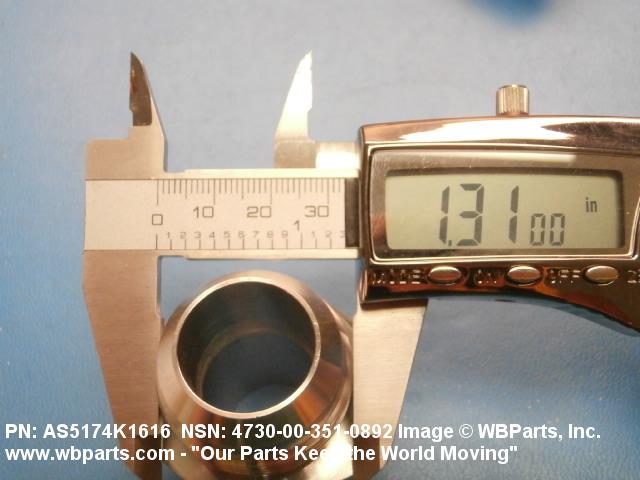

| NOMINAL THREAD SIZE | 1.312 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| LEG LENGTH | 1.093 INCHES NOMINAL 1ST END |

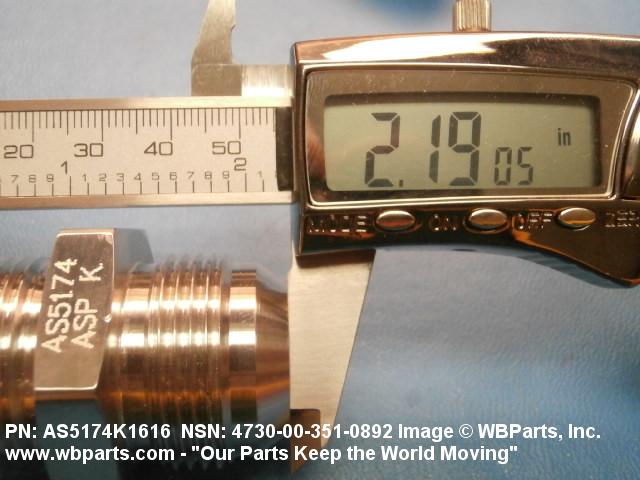

| NOMINAL OVERALL LENGTH | 2.187 INCHES |
| FURNISHED ITEMS AND QUANTITY | 2 PREFORMED PACKING |
| SPECIFICATION/STANDARD DATA | 88044-AN815 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN815-16K |
Restrictions/Controls & Freight Information | NSN 4730-00-351-0892
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
