NSN 4730-00-372-3788 1343308, 1343-3-08, 4-202142 1-2 8
Product Details | PIPE TO TUBE STRAIGHT ADAPTER
4730-00-372-3788 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line.
Part Alternates: 1343308, 1343-3-08, 4-202142 1-2 8, 4-202142-1/2-8, 4202142128, 42170478, 421-7047-8, 4730-00-372-3788, 00-372-3788, 4730003723788, 003723788
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 MAR 1974 | 00-372-3788 | 03776 ( ADAPTER, STRAIGHT, PIPE TO TUBE ) |

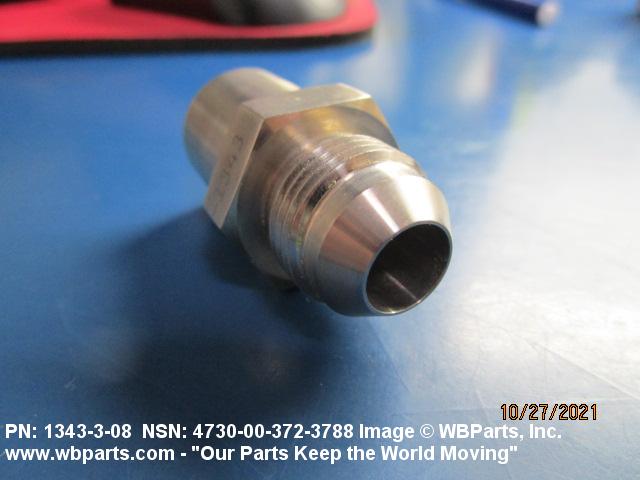

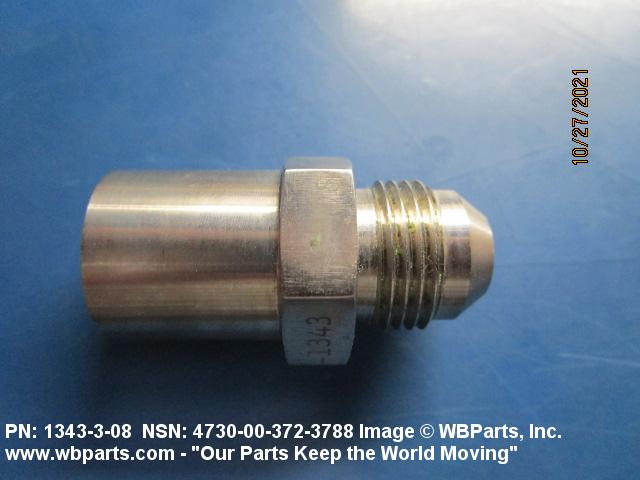

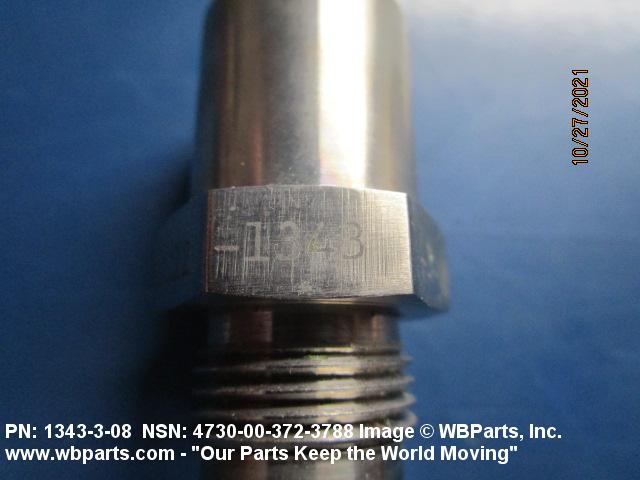

Drawings & Photos | NSN 4730-00-372-3788
Demand History | NSN 4730-00-372-3788
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1343-3-08 | 2025-09-265 | 4 | DIBBS |
| 4-202142-1/2-8 | 2025-09-265 | 4 | DIBBS |
| 421-7047-8 | 2025-09-265 | 4 | DIBBS |
| 1343-3-08 | 2024-10-296 | 2 | DIBBS |
| 4-202142-1/2-8 | 2024-10-296 | 2 | DIBBS |
| 421-7047-8 | 2024-10-296 | 2 | DIBBS |
| 4730-00-372-3788 | 2021-10-294 | 2 | United States |
| 1343-3-08 | 2019-10-279 | 2 | DIBBS |
| 4-202142-1/2-8 | 2019-10-279 | 2 | DIBBS |
| 421-7047-8 | 2019-10-279 | 2 | DIBBS |
Cross Reference | NSN 4730-00-372-3788
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-372-3788
Technical Data | NSN 4730-00-372-3788
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END UNTHREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B100B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| THREAD CLASS | 2A 1ST END |
| NOMINAL OVERALL LENGTH | 1.780 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-00-372-3788
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051450 | PIPE FITTINGS CUPRO NICKEL/COPPER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-372-3788
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
