NSN 4730-00-378-7301 AN92910K, AN929-10K, AS4841

Product Details | TUBE CAP


4730-00-378-7301 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.

Part Alternates: AN92910K, AN929-10K, AS4841, MILF5509, MIL-F-5509, 4730-00-378-7301, 00-378-7301, 4730003787301, 003787301

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 16 MAR 1974 00-378-7301

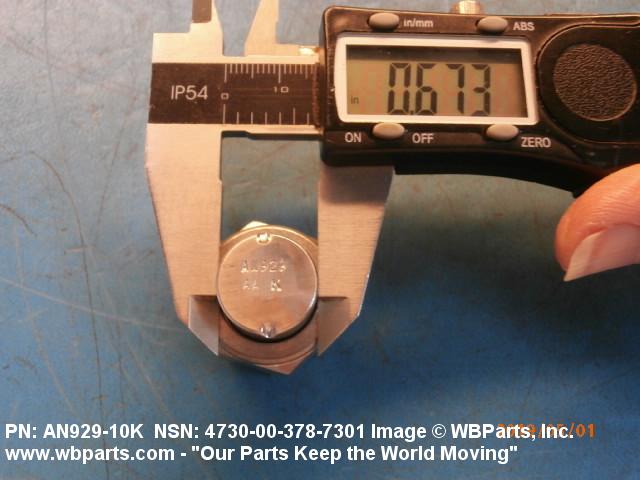

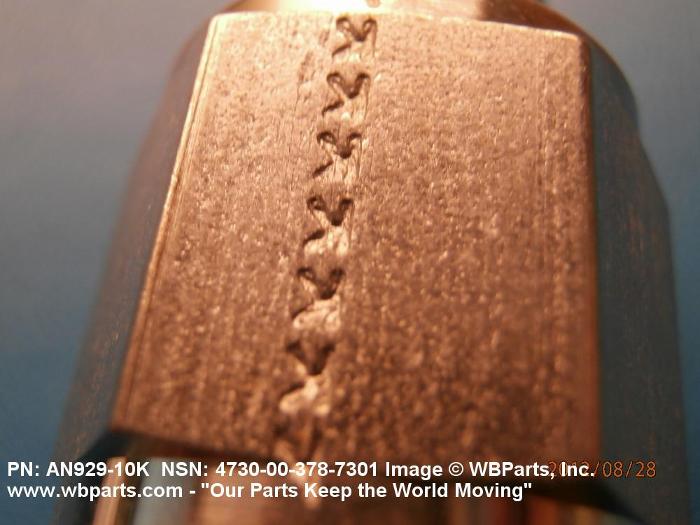

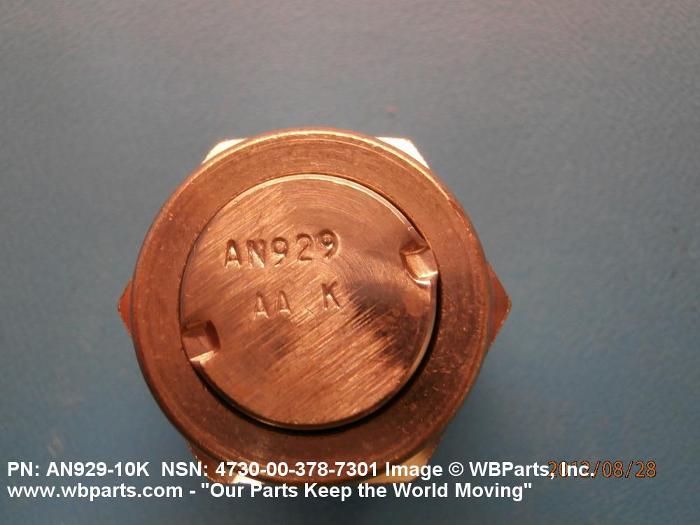

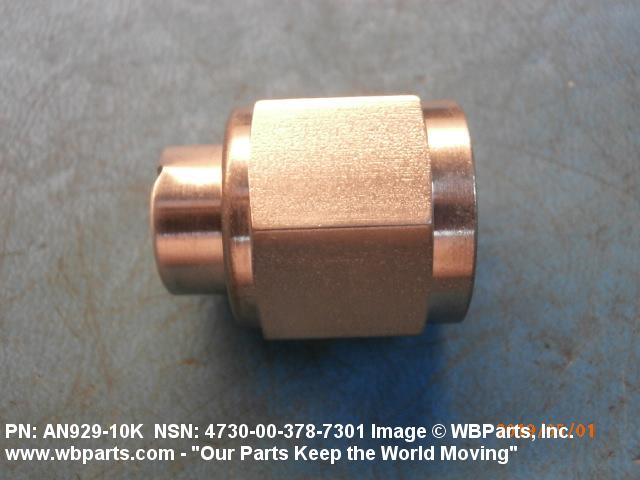

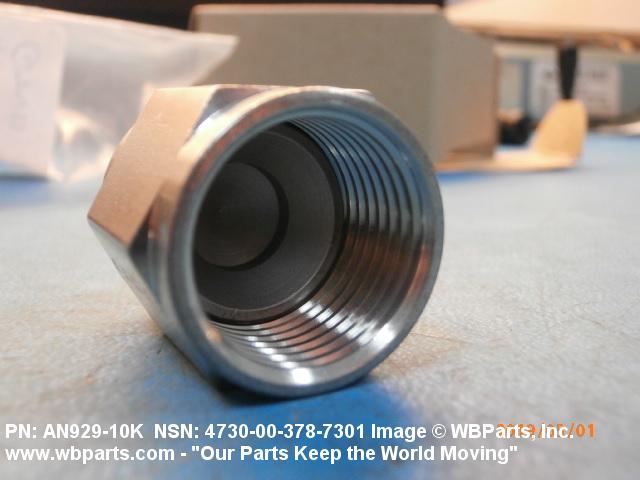

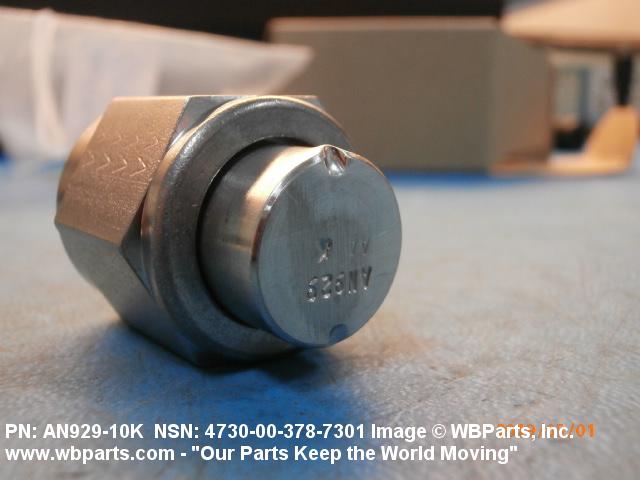

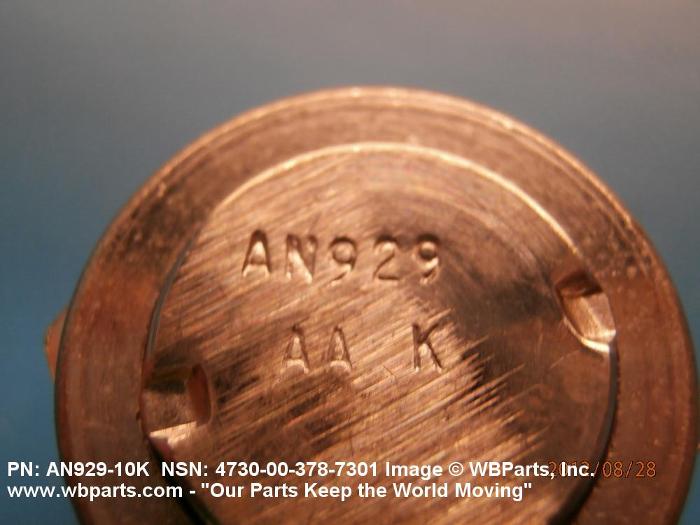

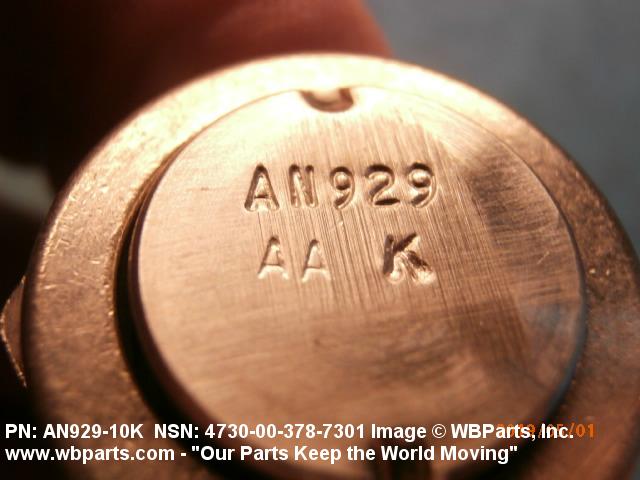

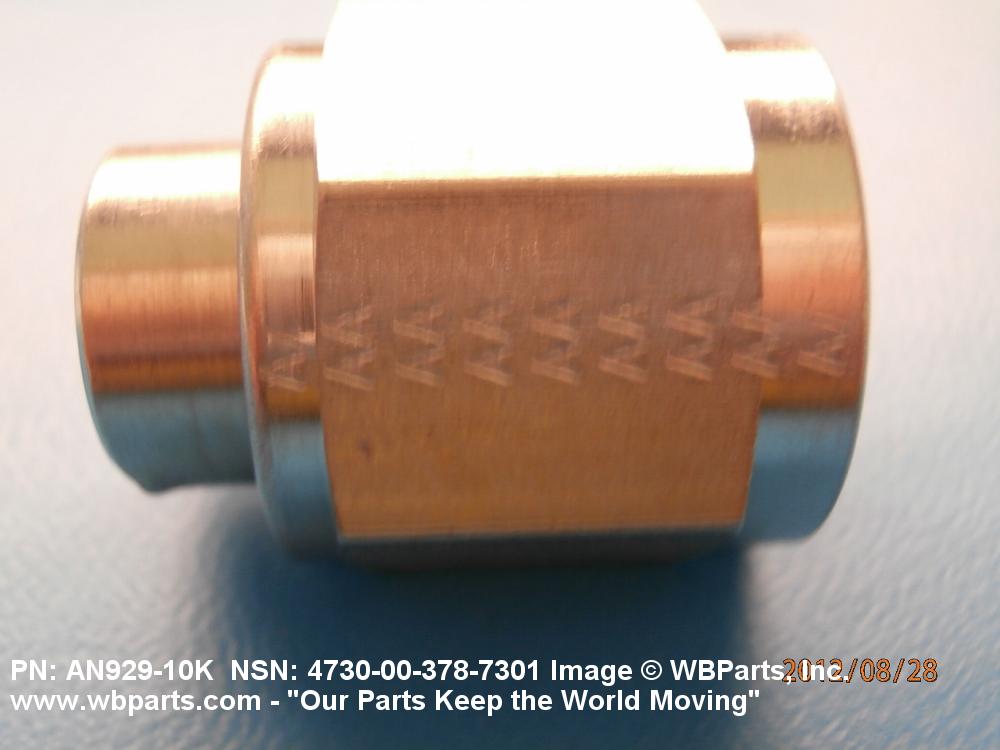

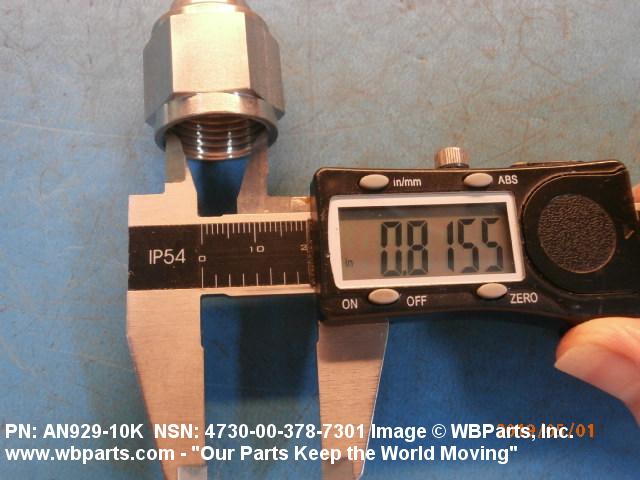

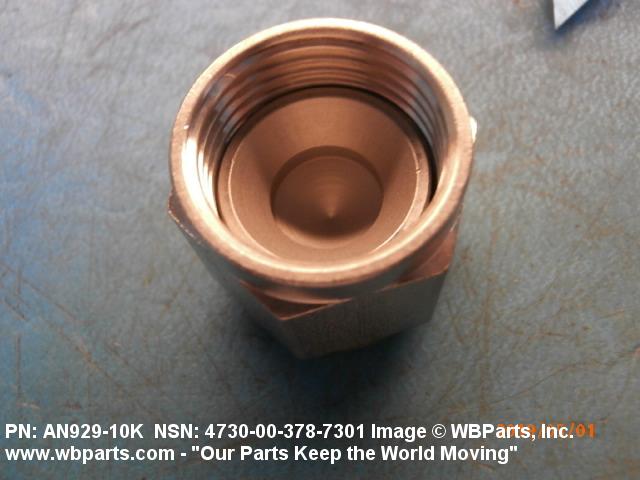

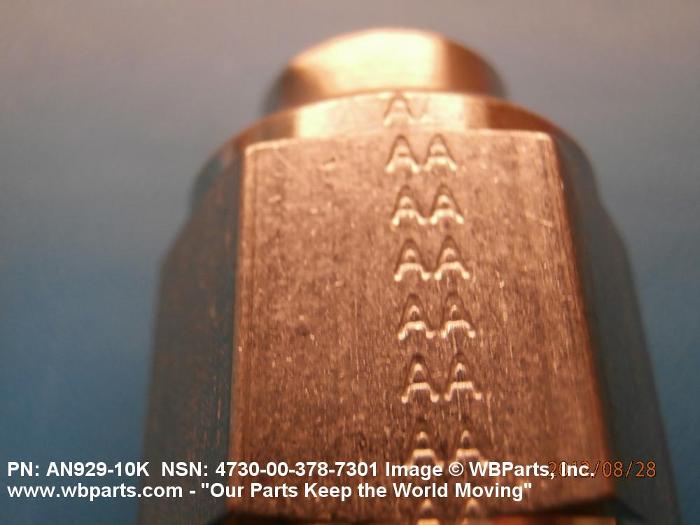

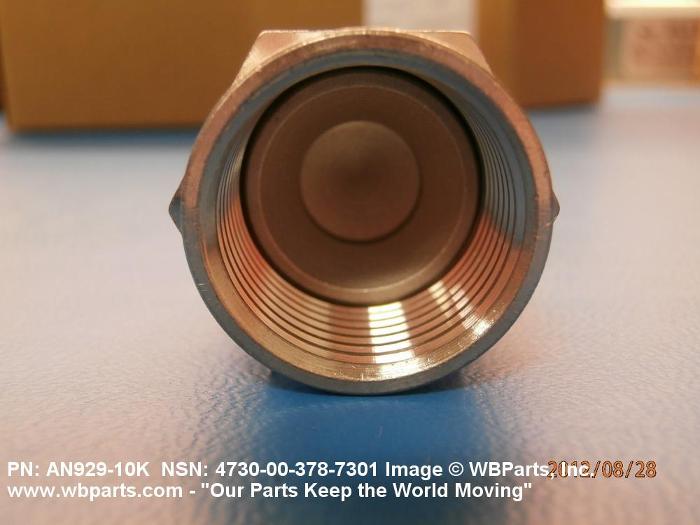

Drawings & Photos | NSN 4730-00-378-7301



Demand History | NSN 4730-00-378-7301


Part Number Request Date QTY Origin
4730-00-378-7301 2023-12-07 406 DIBBS
4730-00-378-7301 2023-11-26 406 DIBBS
4730-00-378-7301 2022-10-26 56 DIBBS
4730-00-378-7301 2022-08-08 56 DIBBS
4730-00-378-7301 2021-12-08 110 DIBBS
4730-00-378-7301 2021-10-07 55 DIBBS
AN92910K 2021-04-15 16 US
4730-00-378-7301 2020-10-22 57 DIBBS
AN92910K 2019-08-06 30 US
AN92910K 2019-04-16 1 United States
AN92910K 2019-04-11 1 United States
MILF5509 2018-07-20 6 United States
4730-00-378-7301 2017-01-02 40 DIBBS
4730-00-378-7301 2016-10-25 40 DIBBS
AN92910K 2012-08-02 2 United States
AS4841 2011-03-10 8
MILF5509 2009-10-28 1 PK
MILF5509 2009-02-24 100 US

Cross Reference | NSN 4730-00-378-7301


Part Number Cage Code Manufacturer
AN929-10K 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS4841 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-5509 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 4730-00-378-7301


Technical Data | NSN 4730-00-378-7301


Characteristic Specifications
MATERIAL STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION 66 FED STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR A12 CAP, TUBE, FLARED
CONNECTION STYLE G5 PRESSURE SEAL FLARED
THREAD SERIES DESIGNATOR UNJF INTERNAL
NOMINAL THREAD SIZE 0.875 INCHES INTERNAL

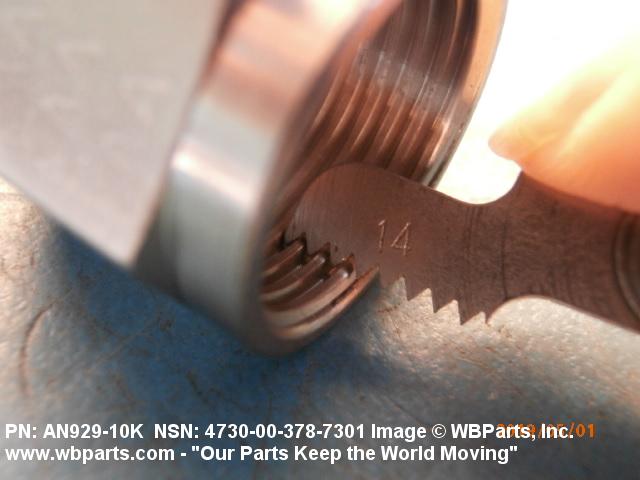

THREAD QUANTITY PER INCH 14 INTERNAL
THREAD CLASS 3B INTERNAL
THREAD DIRECTION RIGHT-HAND INTERNAL
SEAT ANGLE 37.0 DEGREES
TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED 0.625 INCHES NOMINAL
SPECIAL FEATURES PART MODIFIED BY LEWIS SPEC 103
SPECIFICATION/STANDARD DATA 88044-AN929 GOVERNMENT STANDARD AND 81343-AS4841 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
(NON-CORE DATA) SAFETY WIRE HOLE QUANTITY 1
MANUFACTURERS CODE 88044
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AN929-10K

Restrictions/Controls & Freight Information | NSN 4730-00-378-7301


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 052190 PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code 93 NASA Lewis Research Center
Cleveland, OH 44135
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4730-00-378-7301


Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
