NSN 4730-00-421-7051 4-202104-8-8, 4-202140-8-8, 00-421-7051
Product Details | TUBE COUPLING
4730-00-421-7051 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: 4-202104-8-8, 4-202140-8-8, 4730-00-421-7051, 00-421-7051, 4730004217051, 004217051, 420210488, 420214088
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 DEC 1970 | 00-421-7051 | 06078 ( COUPLING, TUBE ) |

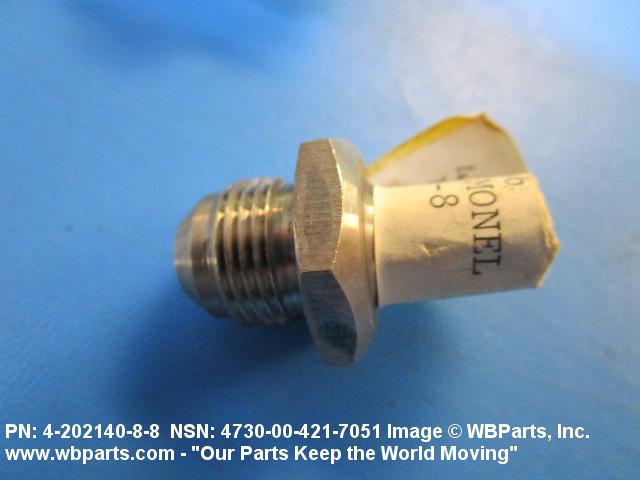

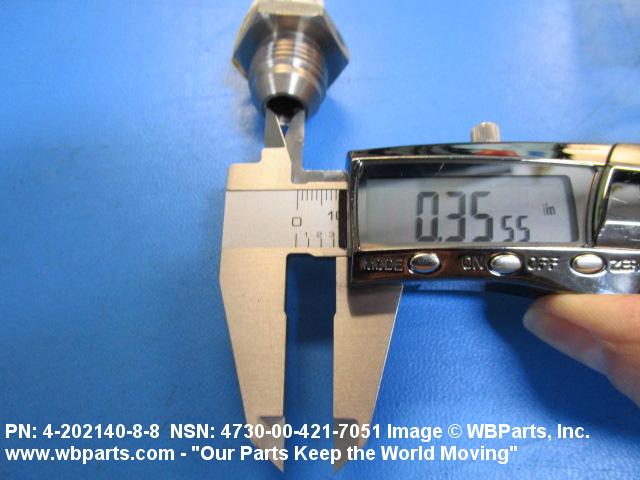

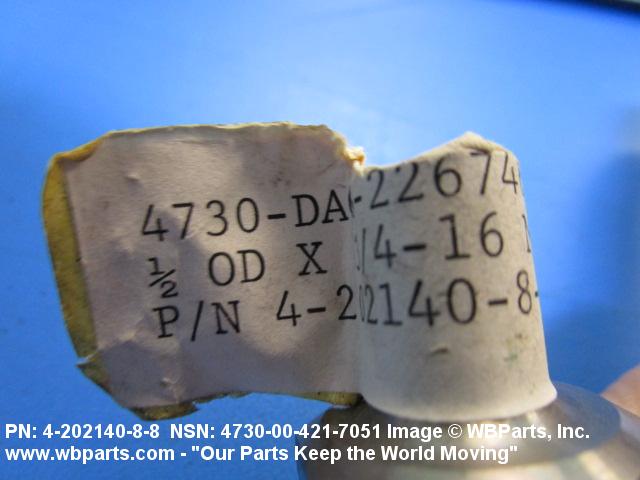

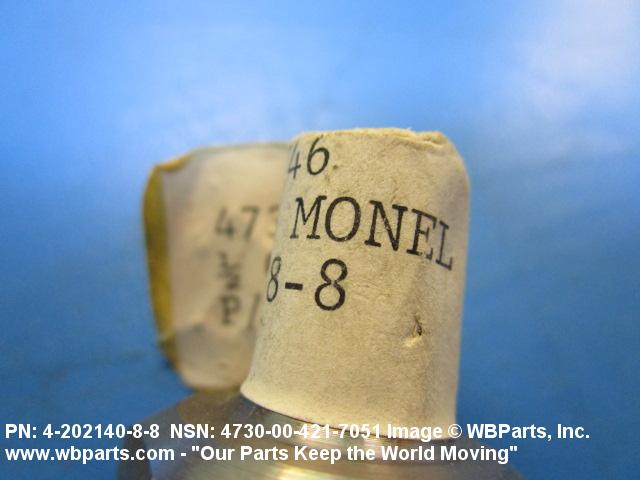

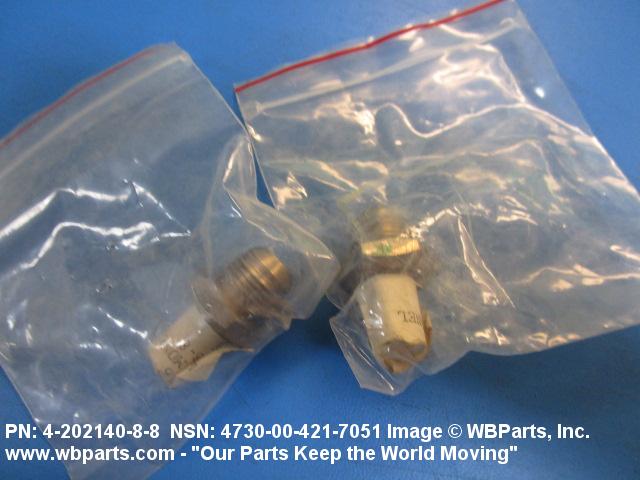

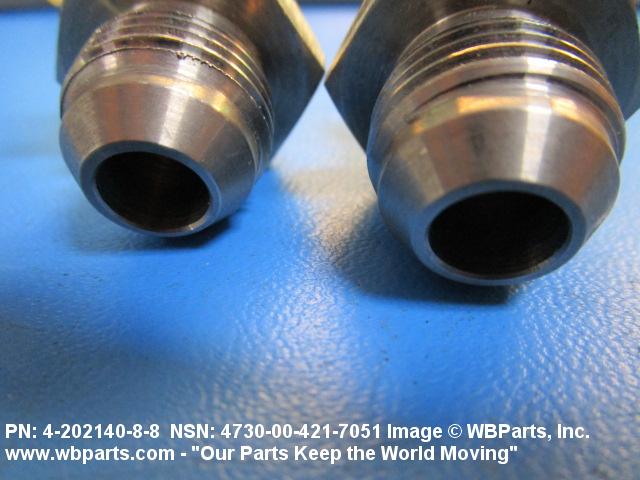

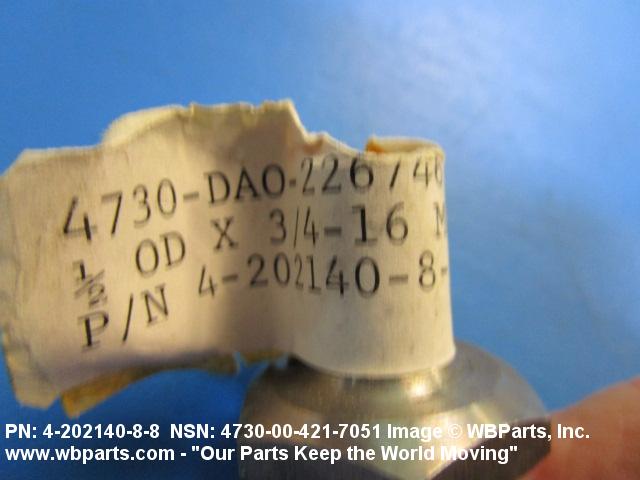

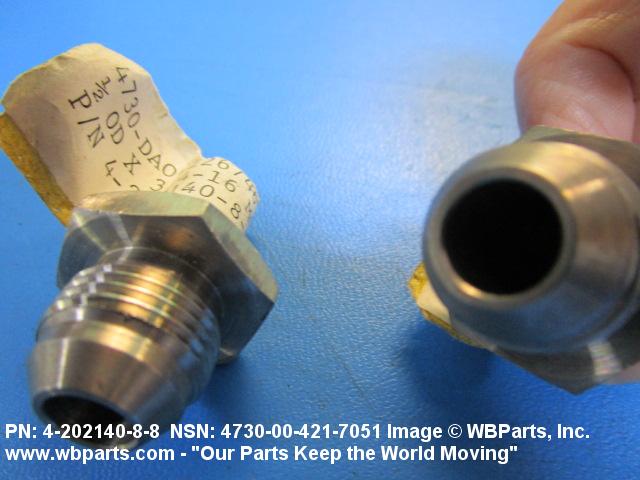

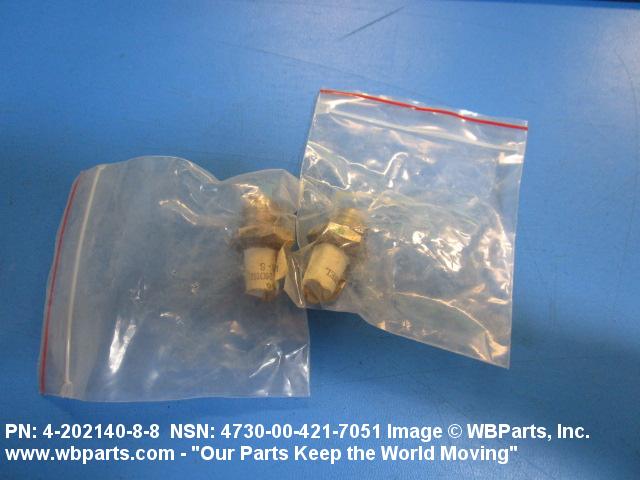

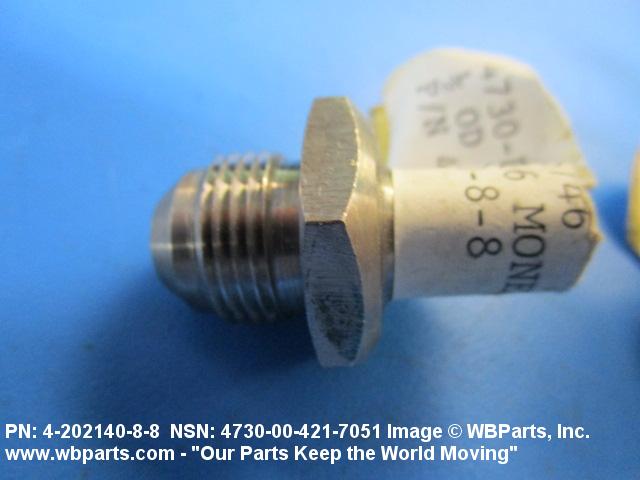

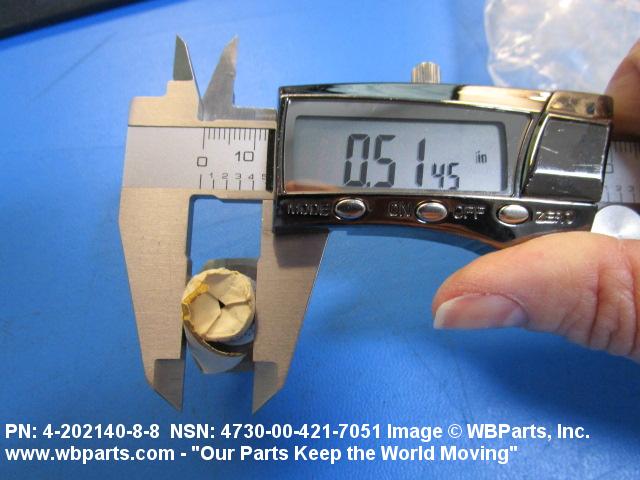

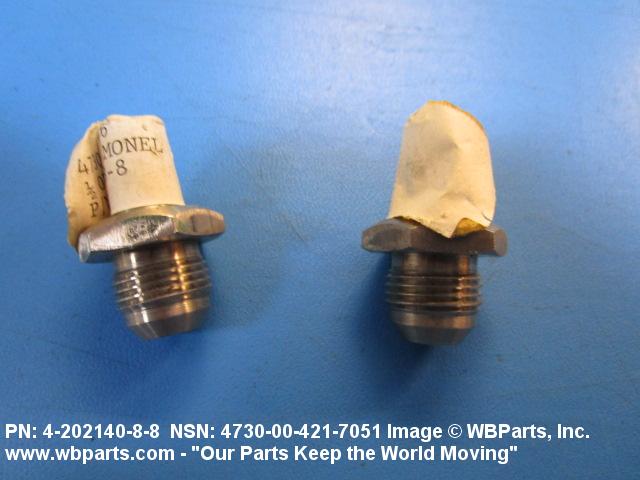

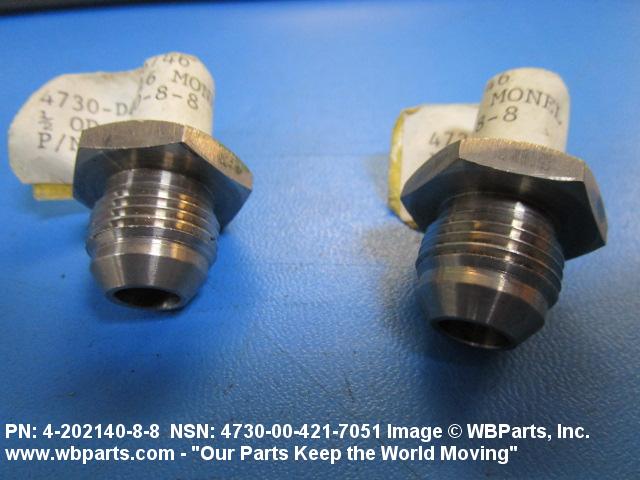

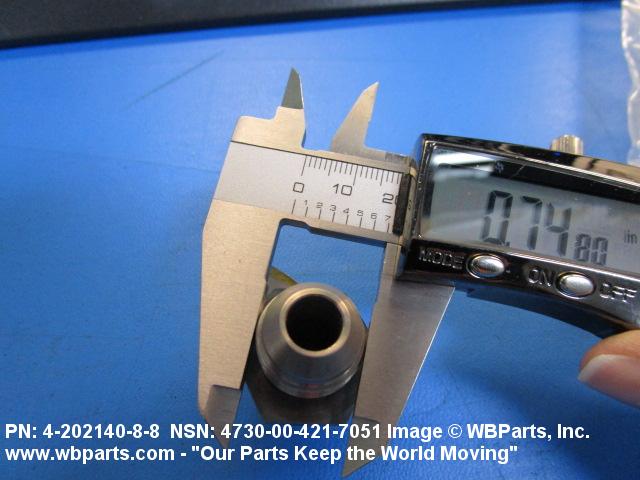

Drawings & Photos | NSN 4730-00-421-7051
Demand History | NSN 4730-00-421-7051
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-421-7051 | 2021-09-272 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-421-7051
Technical Data | NSN 4730-00-421-7051
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY A OR NICKEL ALLOY UNS N10001 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281,COLD DRAWN FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A5 RIGID, SHORT CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END UNTHREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B100A PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| THREAD CLASS | 2A 1ST END |
| NOMINAL OVERALL LENGTH | 1.630 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-00-421-7051
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051450 | PIPE FITTINGS CUPRO NICKEL/COPPER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-421-7051
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
