NSN 4730-00-440-5828 WWP401, 00-440-5828, 004405828
Product Details | SOIL PIPE BEND
4730-00-440-5828 A fitting used to connect two or more sections of soil pipe to form a turn. This includes bends with side or heel inlets.
Part Alternates: WWP401, 4730-00-440-5828, 00-440-5828, 4730004405828, 004405828
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-440-5828 | 03792 ( BEND, SOIL PIPE ) |
Drawings & Photos | NSN 4730-00-440-5828
Cross Reference | NSN 4730-00-440-5828
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-440-5828
Technical Data | NSN 4730-00-440-5828
| Characteristic | Specifications |
|---|---|

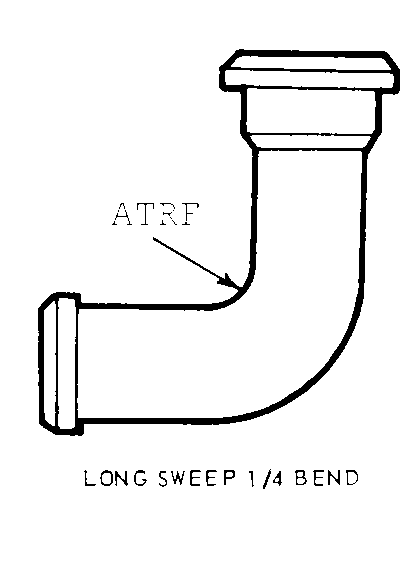

| STYLE DESIGNATOR | M19 LONG SWEEP 1/4 BEND |
| NOMINAL PIPE SIZE | 2.000 INCHES |
| MATERIAL | IRON, CAST |
| SURFACE TREATMENT | TAR COATED |
| WALL THICKNESS DESIGNATION | SERVICE WEIGHT |
| NONDEFINITIVE SPEC/STD DATA | SV GRADE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WWP401 |
Restrictions/Controls & Freight Information | NSN 4730-00-440-5828
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
