NSN 4730-00-448-9504 MS219073, MS21907-3, 00-448-9504
Product Details | TUBE ELBOW
4730-00-448-9504 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS219073, MS21907-3, 4730-00-448-9504, 00-448-9504, 4730004489504, 004489504
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 MAY 1970 | 00-448-9504 | 03771 ( ELBOW, TUBE ) |

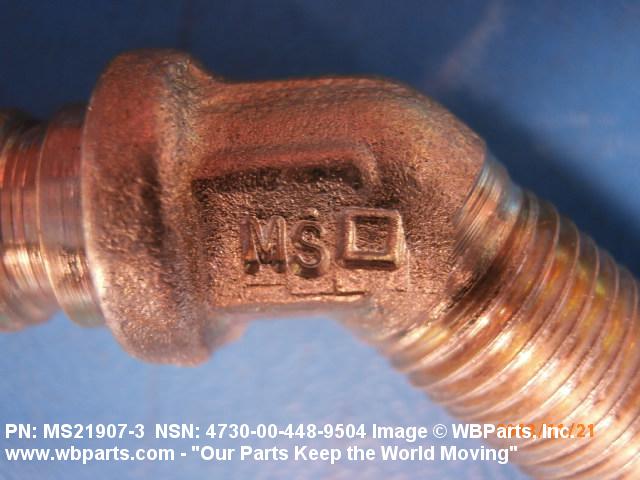

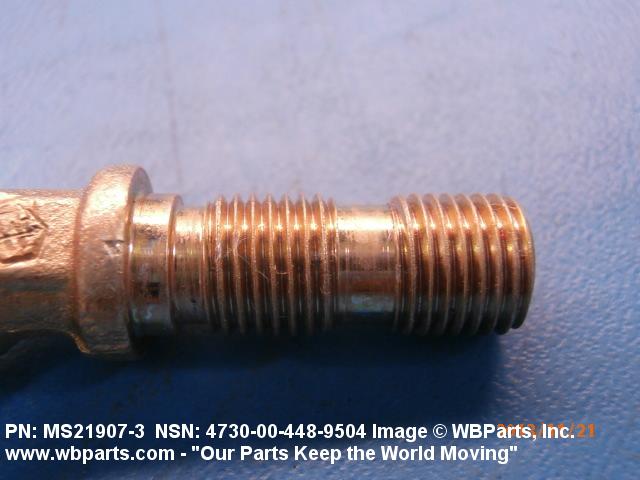

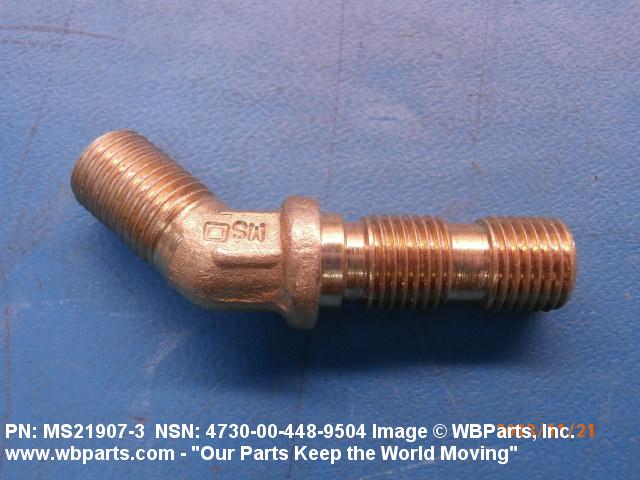

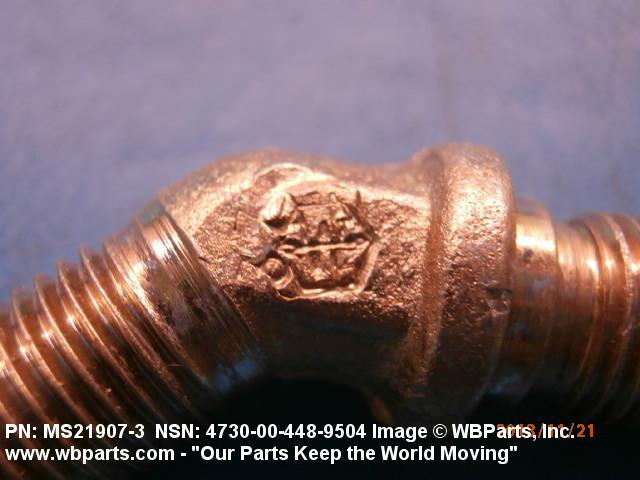

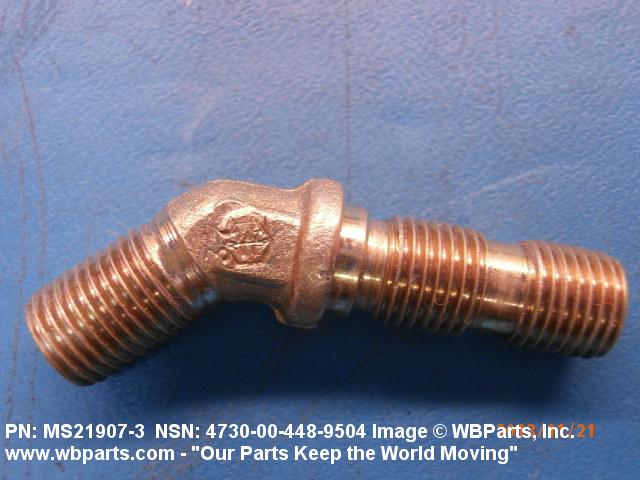

Drawings & Photos | NSN 4730-00-448-9504
Demand History | NSN 4730-00-448-9504
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-448-9504 | 2013-11-318 | 2 | United States |
Cross Reference | NSN 4730-00-448-9504
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21907-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-448-9504
Technical Data | NSN 4730-00-448-9504
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1137 OR STEEL COMP 1141 OR STEEL COMP 4130 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637,COMP 1137 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-637,COMP 1141 FED SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758,4130 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-5626,4140 MIL SPEC 4TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE INSIDE QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B66 FLARELESS 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END 12.0 DEGREES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END |

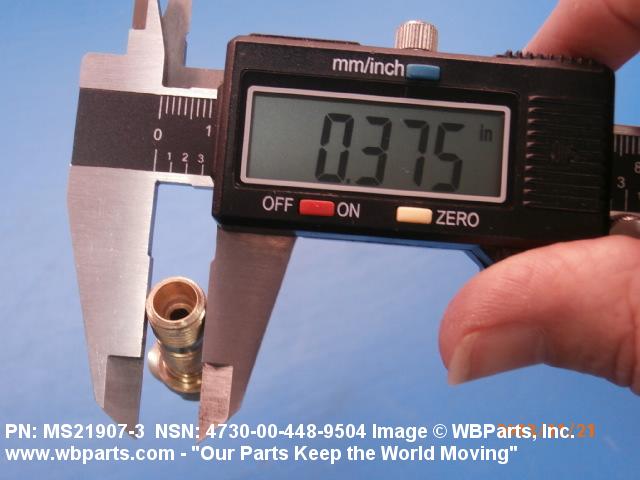

| NOMINAL THREAD SIZE | 0.375 INCHES 1ST END 0.375 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |

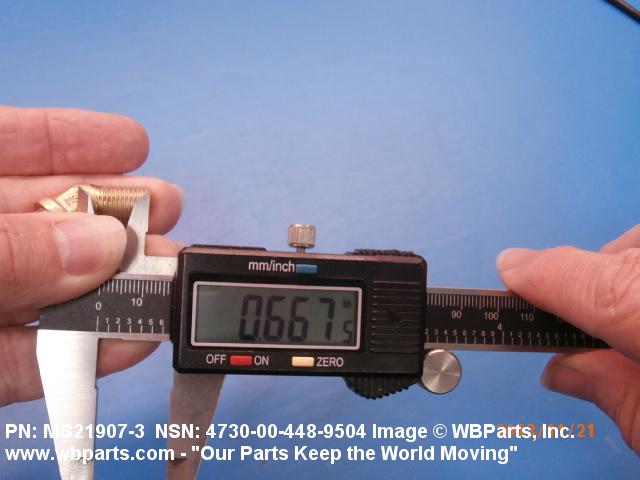

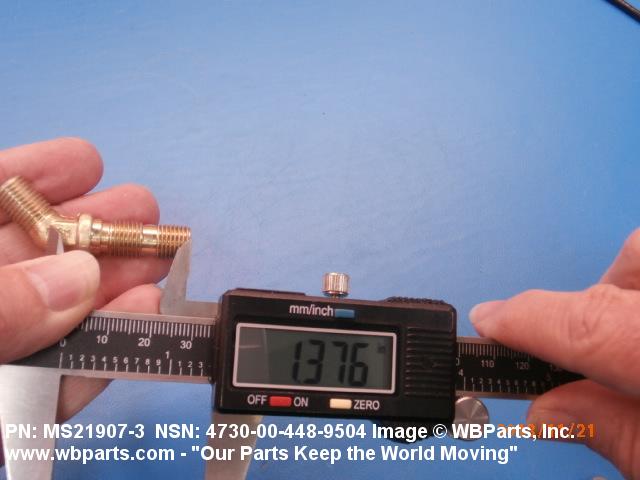

| LEG LENGTH | 1.328 INCHES MINIMUM AND 1.375 INCHES MAXIMUM 1ST END 0.656 INCHES MINIMUM AND 0.703 INCHES MAXIMUM 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21907-3 |
Restrictions/Controls & Freight Information | NSN 4730-00-448-9504
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
