NSN 4730-00-473-9942 AE16171664, AE16171-6-6-4, AFP2606T060604
Product Details | TUBE TEE

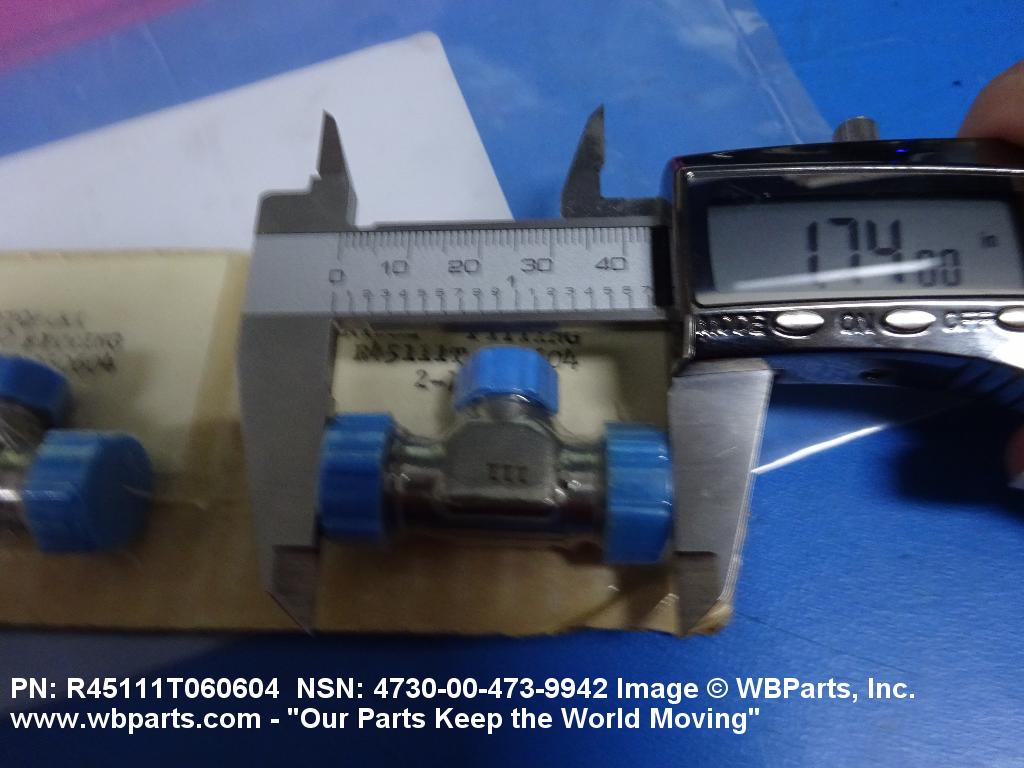

4730-00-473-9942 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
