NSN 4730-00-474-1990 95940, 00-474-1990, 004741990
Product Details | FLUID PASSAGE BOLT
4730-00-474-1990 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 95940, 4730-00-474-1990, 00-474-1990, 4730004741990, 004741990
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-474-1990 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-00-474-1990
Cross Reference | NSN 4730-00-474-1990
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 95940 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-474-1990
Technical Data | NSN 4730-00-474-1990
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66,AISI/SAE 4130 FED STD SINGLE MATERIAL RESPONSE |
| BODY STYLE | 5 RELIEVED |
| CONCENTRIC HOLE DEPTH | 0.655 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.750 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.690 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.095 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 0.375 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.593 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 0.750 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.312 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 16 |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.375 INCHES NOMINAL |

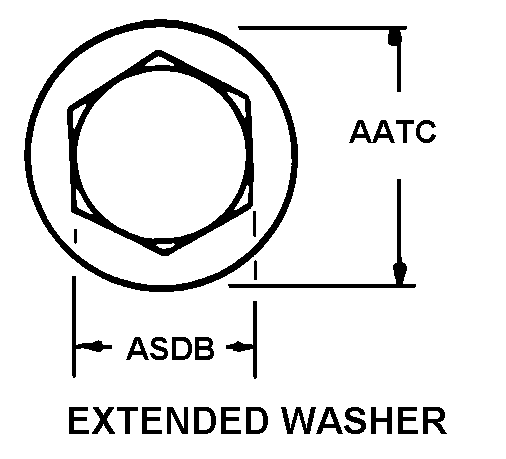

| WRENCHING FEATURE STYLE | 7 EXTENDED WASHER |
| EXTENDED WASHER DIAMETER | 1.000 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| HARDNESS RATING | 89.0 ROCKWELL B NOMINAL |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 95940 |
Restrictions/Controls & Freight Information | NSN 4730-00-474-1990
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
