NSN 4730-00-480-8600 MS2076020, MS20760-20, 00-480-8600
Product Details | FLANGE TO TUBE STRAIGHT ADAPTER
4730-00-480-8600 An adapter having a flange connection on one end designed to connect with another flange connection or a compression type mounting pad. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a flange or flange fitting to a tube or tube fitting in a straight line.
Part Alternates: MS2076020, MS20760-20, 4730-00-480-8600, 00-480-8600, 4730004808600, 004808600
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 SEP 1970 | 00-480-8600 | 29657 ( ADAPTER, STRAIGHT, FLANGE TO TUBE ) |

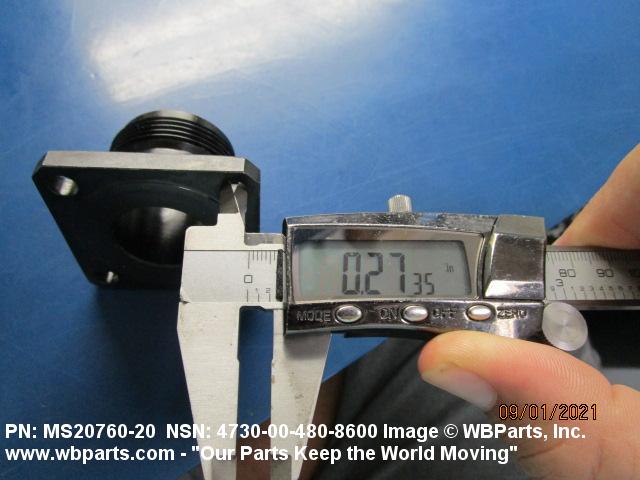

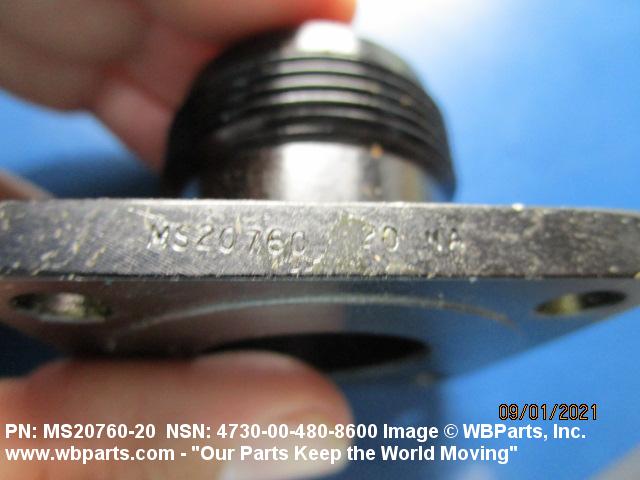

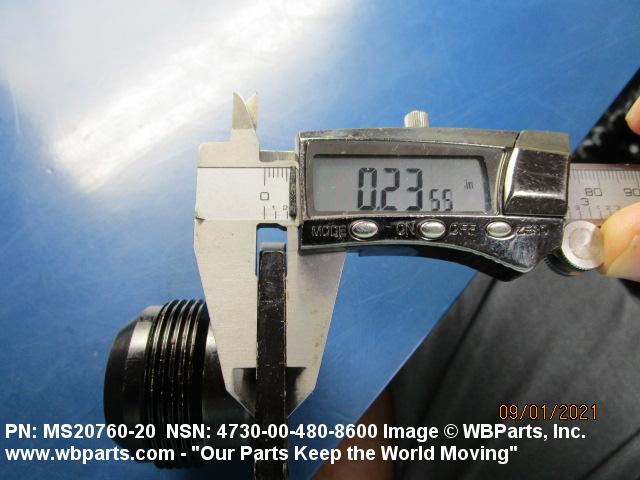

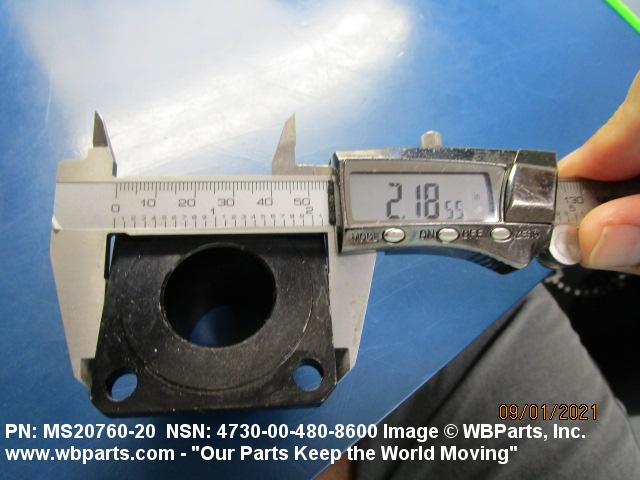

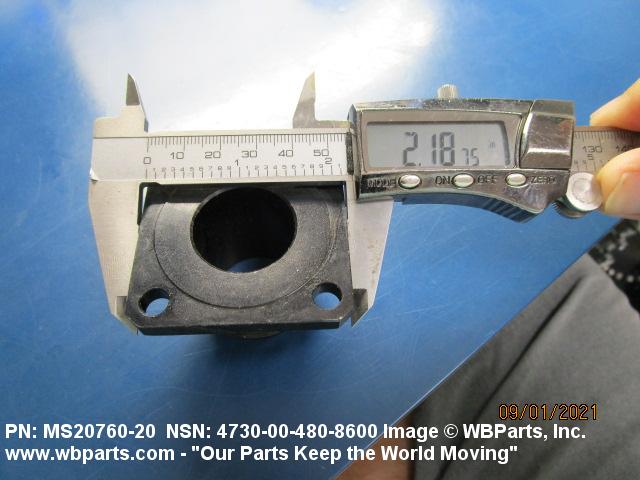

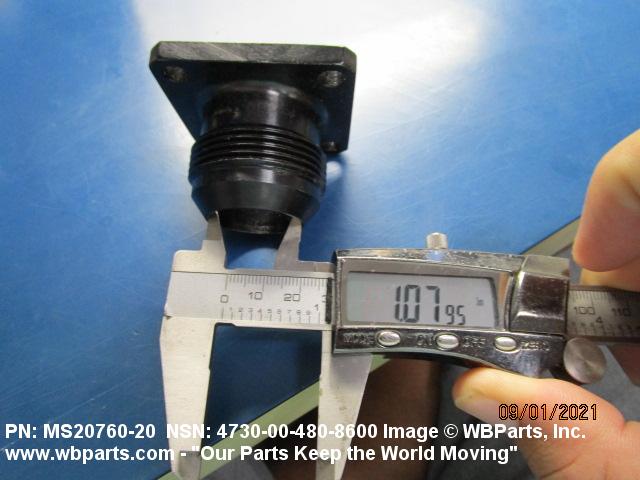

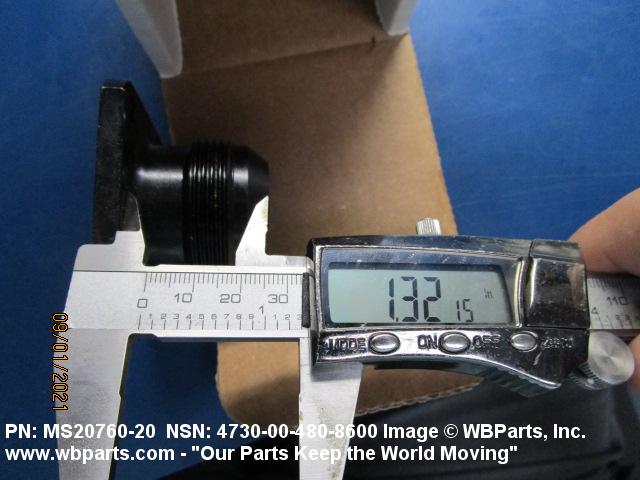

Drawings & Photos | NSN 4730-00-480-8600
Demand History | NSN 4730-00-480-8600
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-480-8600 | 2023-06-181 | 15 | United States |
| MS2076020 | 2023-05-122 | 8 | United States |
| MS2076020 | 2022-07-203 | 1 | US |
| MS2076020 | 2021-06-181 | 8 | United States |
| MS2076020 | 2021-06-166 | 1 | US |
| MS2076020 | 2021-06-162 | 1 | US |
| MS2076020 | 2021-02-47 | 4 | US |
| MS2076020 | 2020-04-97 | 13 | US |
| 4730-00-480-8600 | 2019-05-126 | 19 | DIBBS |
| 4730-00-480-8600 | 2019-04-115 | 19 | DIBBS |
| 4730-00-480-8600 | 2018-06-179 | 15 | DIBBS |
| 4730-00-480-8600 | 2018-06-168 | 15 | DIBBS |
Cross Reference | NSN 4730-00-480-8600
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20760-20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-480-8600
Related Products | NSN 4730-00-480-8600
Technical Data | NSN 4730-00-480-8600
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1137 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637 FED SPEC 1ST MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM INSIDE CADMIUM OUTSIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE INSIDE QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OUTSIDE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END FLANGE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| FLANGE SHAPE | RECTANGULAR WITH HOLES 2ND END |
| NOMINAL THICKNESS | 0.265 INCHES 2ND END |
| NOMINAL LENGTH | 2.188 INCHES 2ND END |
| NOMINAL WIDTH | 2.188 INCHES 2ND END |
| BOLT HOLE QUANTITY | 4 2ND END |
| BOLT HOLE NOMINAL DIAMETER | 0.266 INCHES 2ND END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.656 INCHES 2ND END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 1.656 INCHES 2ND END |
| FLANGE FACE DESIGN | RAISED STRAIGHT 2ND END |
| RAISED FACE NOMINAL DIAMETER | 1.844 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |
| NOMINAL THREAD SIZE | 1.625 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3A 1ST END |
| NOMINAL OVERALL LENGTH | 1.625 INCHES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20760-20 |
Restrictions/Controls & Freight Information | NSN 4730-00-480-8600
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-480-8600
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
