NSN 4730-00-493-8415 MS2191416C, MS21914-16C, MS2191416J
Product Details | TUBE CAP
4730-00-493-8415 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: MS2191416C, MS21914-16C, MS2191416J, MS21914-16J, AFP241J16, AS18280, AS21914, BACC14AD16J, 4730-00-493-8415, 00-493-8415, 4730004938415, 004938415
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 19 OCT 1970 | 00-493-8415 | 06074 ( CAP, TUBE ) |

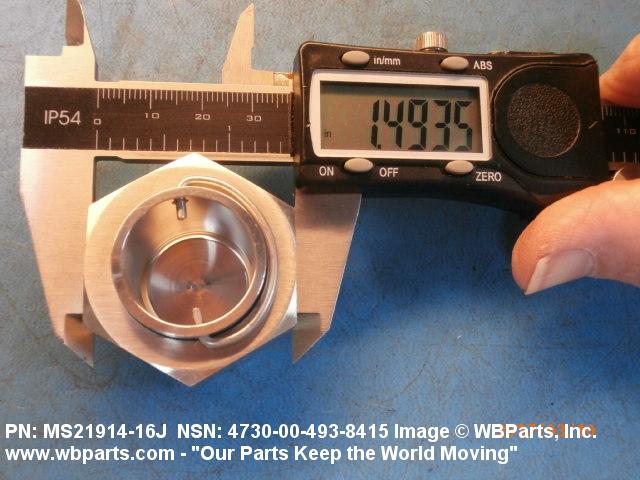

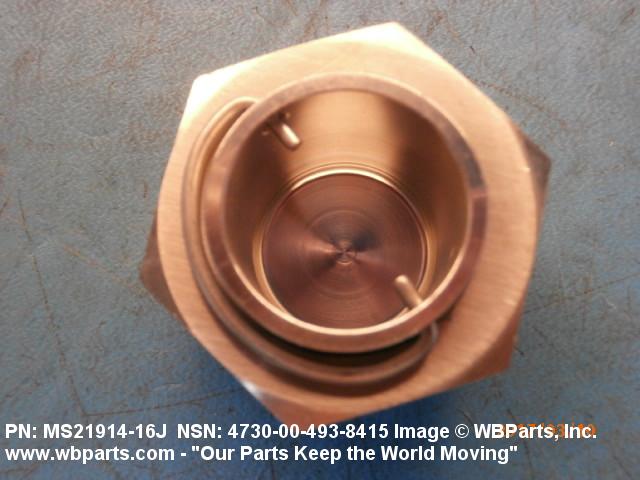

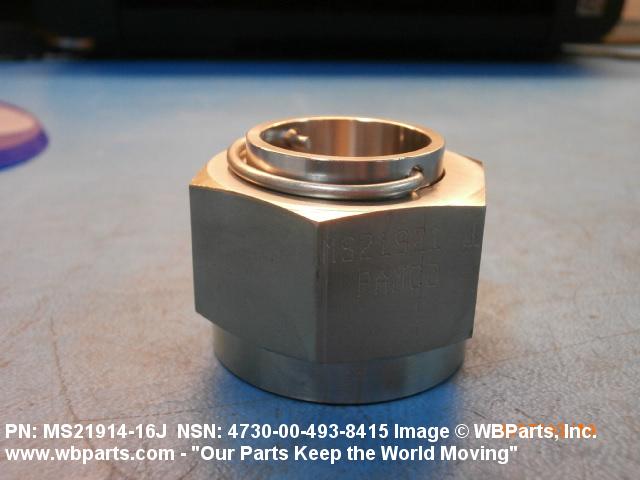

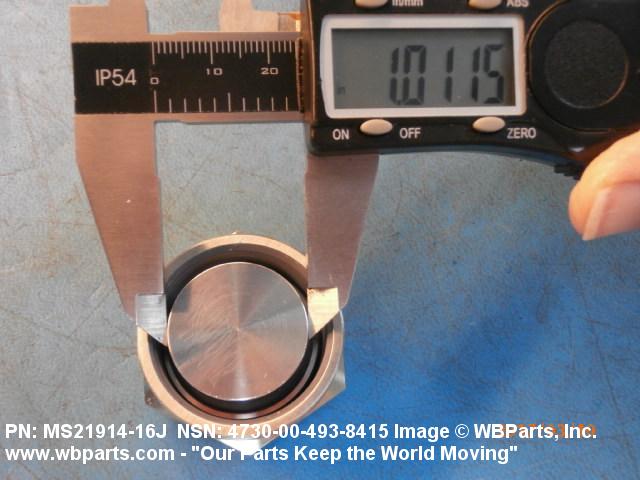

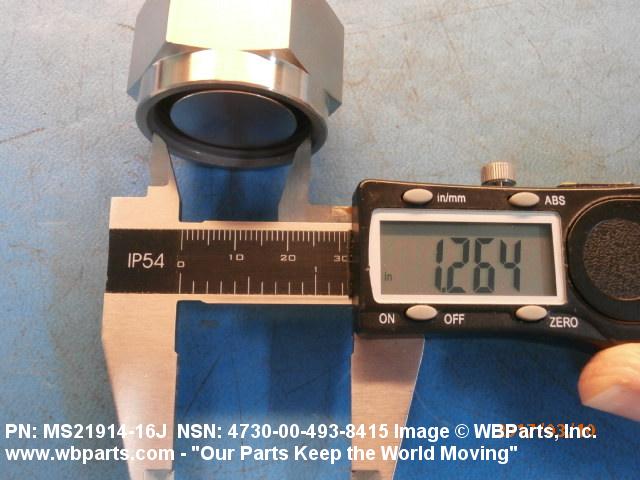

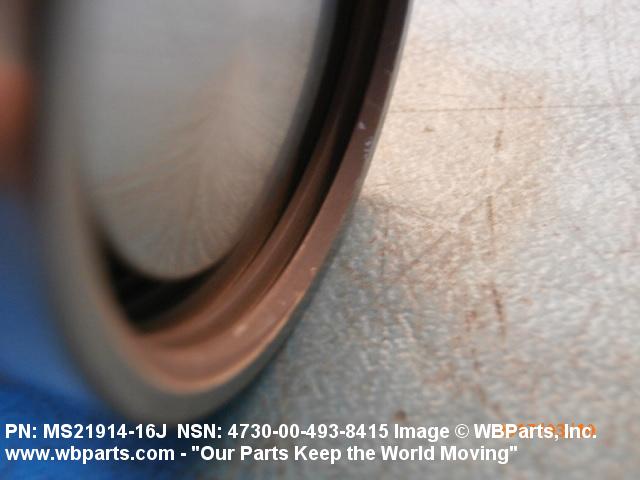

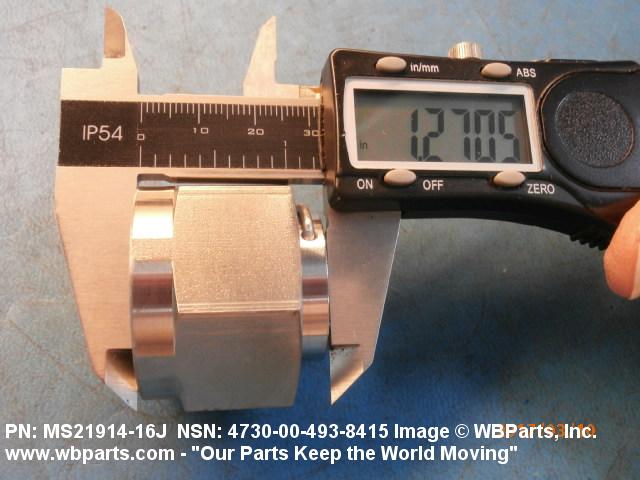

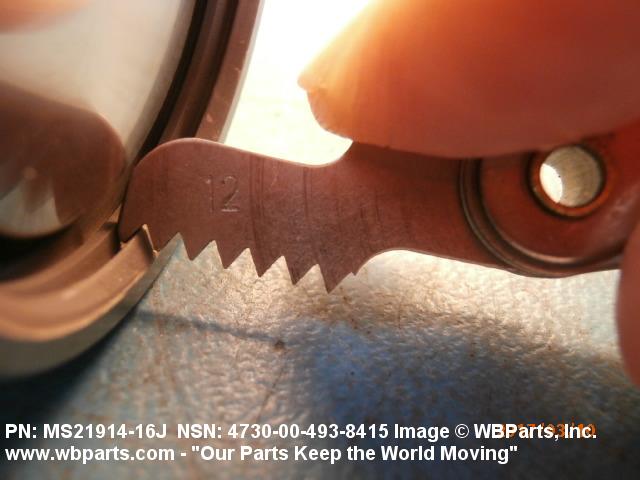

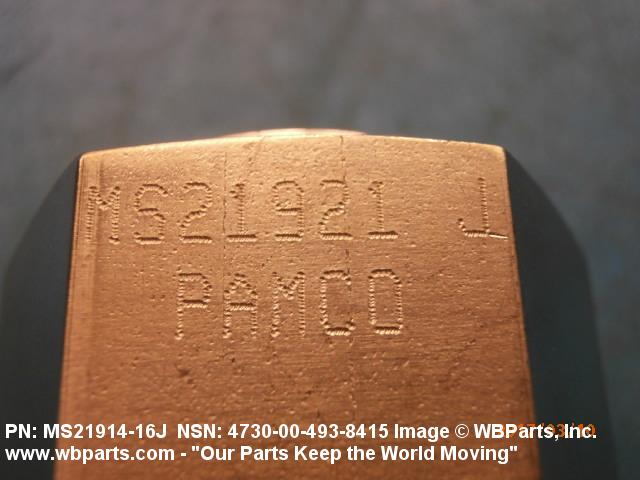

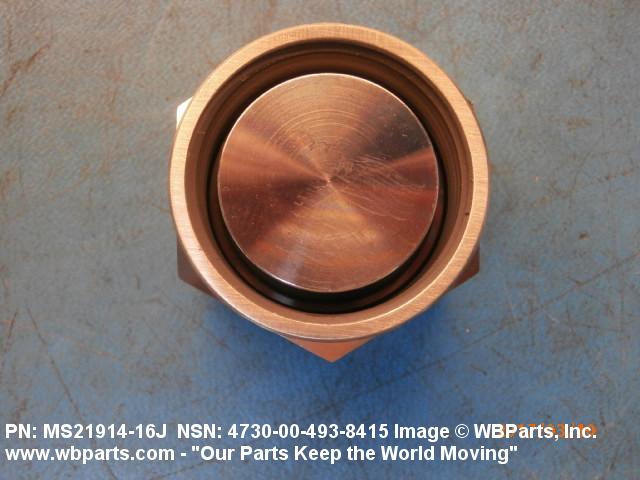

Drawings & Photos | NSN 4730-00-493-8415
Demand History | NSN 4730-00-493-8415
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-493-8415 | 2025-07-212 | 33 | DIBBS |
| 4730-00-493-8415 | 2025-07-201 | 33 | DIBBS |
| 4730-00-493-8415 | 2025-05-143 | 18 | DIBBS |
| 4730-00-493-8415 | 2025-05-132 | 18 | DIBBS |
| 4730-00-493-8415 | 2025-03-82 | 15 | DIBBS |
| 4730-00-493-8415 | 2025-03-76 | 129 | DIBBS |
| 4730-00-493-8415 | 2025-03-65 | 129 | DIBBS |
| 4730-00-493-8415 | 2025-03-62 | 66 | DIBBS |
| 4730-00-493-8415 | 2025-02-51 | 66 | DIBBS |
| 4730-00-493-8415 | 2024-05-140 | 18 | DIBBS |
| 4730-00-493-8415 | 2024-04-102 | 50 | DIBBS |
| MS2191416J | 2024-04-95 | 1 | United States |
| MS2191416J | 2024-04-95 | 1 | United States |
| 4730-00-493-8415 | 2023-07-208 | 39 | DIBBS |
| 4730-00-493-8415 | 2023-04-106 | 39 | DIBBS |
| 4730-00-493-8415 | 2022-08-241 | 15 | DIBBS |
| 4730-00-493-8415 | 2022-03-60 | 15 | DIBBS |
| 4730-00-493-8415 | 2021-10-278 | 2 | United States |
| BACC14AD16J | 2020-08-220 | 2 | CN |
| MS2191416J | 2017-02-59 | 10 | United States |
| MS2191416J | 2014-11-324 | 20 | US |
| AS18280 | 2014-10-280 | 1 | US |
| MS2191416J | 2014-06-154 | 1 | US |
| MS2191416J | 2014-06-154 | 1 | US |
| BACC14AD16J | 2014-03-62 | 2 | US |
| MS2191416J | 2011-03-62 | 1 | IE |
| 4730-00-493-8415 | 2009-09-246 | 6 | DIBBS |
| MS2191416J | 2007-06-163 | 5 | United States |
Cross Reference | NSN 4730-00-493-8415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AFP241J16 | 30974 | AEROFIT, LLC |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21914 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACC14AD16J | 81205 | THE BOEING COMPANY DBA BOEING |
| MS21914-16C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21914-16J | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21914-16J | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-493-8415
Related Products | NSN 4730-00-493-8415
Technical Data | NSN 4730-00-493-8415
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-P-35,TY 1 FED SPEC 2ND TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | A14 CAP, TUBE, FLARELESS |
| CONNECTION STYLE | G6 PRESSURE SEAL FLARELESS |
| THREAD SERIES DESIGNATOR | UNJ INTERNAL |
| NOMINAL THREAD SIZE | 1.312 INCHES INTERNAL |
| THREAD QUANTITY PER INCH | 12 INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT NOMINAL RADIUS | 0.020 INCHES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 96906-MS21914 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | 05F AIRCRAFT, STRATOLIFTER C-135 |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH WATER-OIL-GAS AND 3000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 270.0 DEG FAHRENHEIT WATER-OIL-GAS |
Restrictions/Controls & Freight Information | NSN 4730-00-493-8415
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-493-8415
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
