NSN 4730-00-502-9193 AS4327K04, KC143C4, KC143K4
Product Details | TUBE FITTING FLARED SLEEVE
4730-00-502-9193 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: AS4327K04, KC143C4, KC143K4, 4730-00-502-9193, 00-502-9193, 4730005029193, 005029193
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 JUL 1974 | 00-502-9193 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

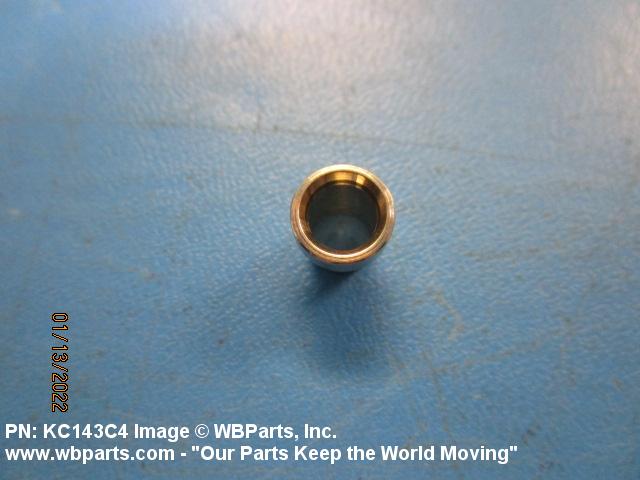

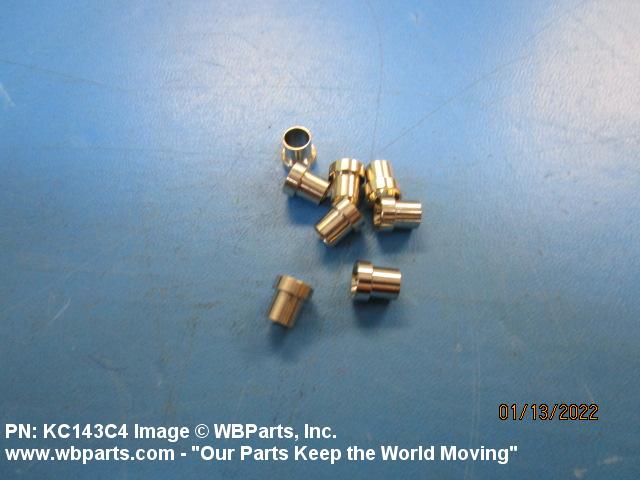

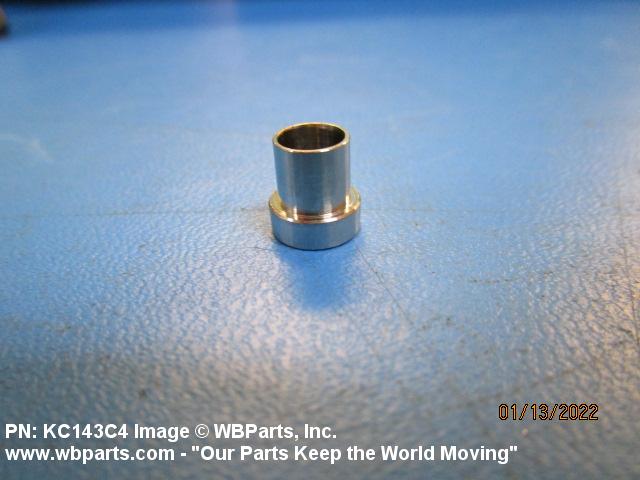

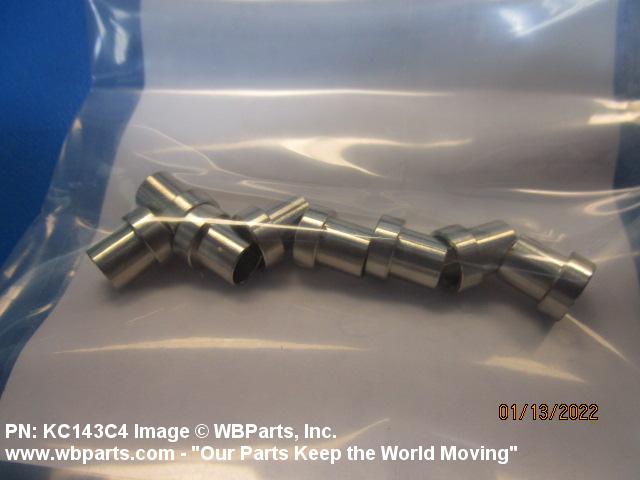

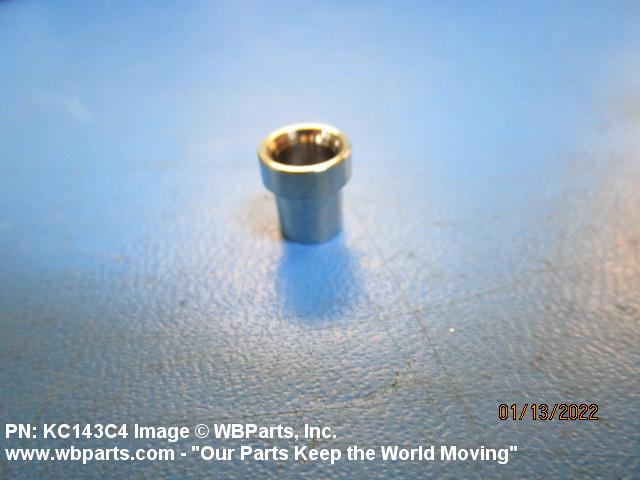

Drawings & Photos | NSN 4730-00-502-9193
Demand History | NSN 4730-00-502-9193
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-502-9193 | 2025-10-303 | 3 | US |
| AS4327K04 | 2024-12-344 | 40 | United States |
| AS4327K04 | 2024-10-298 | 2 | US |
| 4730-00-502-9193 | 2024-10-298 | 2 | US |
| AS4327K04 | 2024-05-129 | 140 | US |
| 4730-00-502-9193 | 2023-10-296 | 700 | US |
| AS4327K04 | 2022-03-87 | 10 | Canada |
| AS4327K04 | 2022-03-87 | 10 | Canada |
| 4730-00-502-9193 | 2021-12-355 | 8 | United States |
| KC143K4 | 2016-10-301 | 8 | United States |
| AS4327K04 | 2016-10-295 | 228 | United States |
| AS4327K04 | 2015-04-104 | 3 | US |
| AS4327K04 | 2015-03-90 | 30 | US |
| AS4327K04 | 2015-03-85 | 30 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-502-9193
Technical Data | NSN 4730-00-502-9193
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

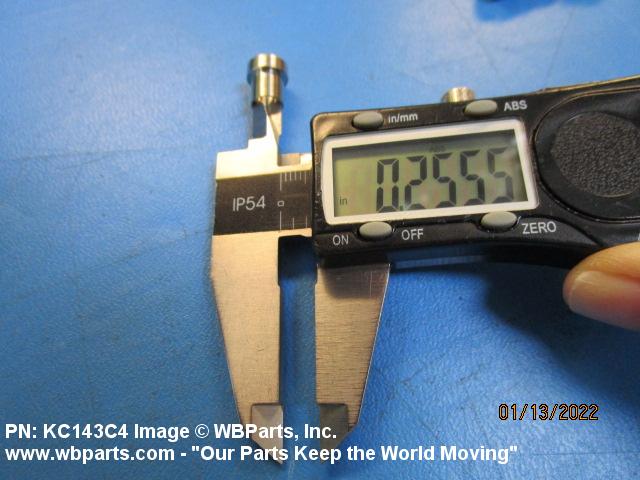

| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | M4 SLEEVE |

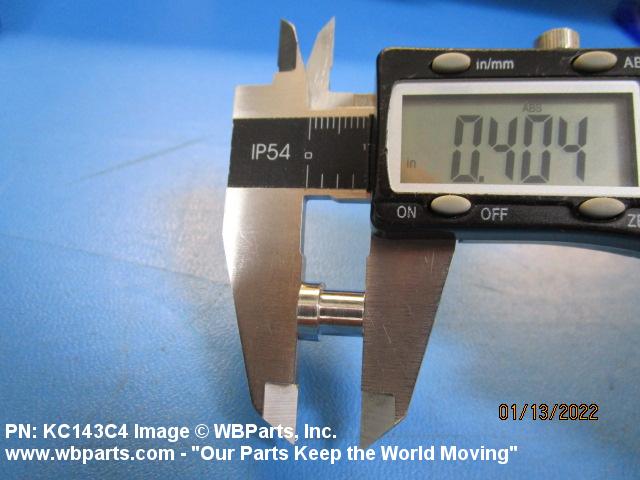

| OVERALL LENGTH | 0.406 INCHES NOMINAL |

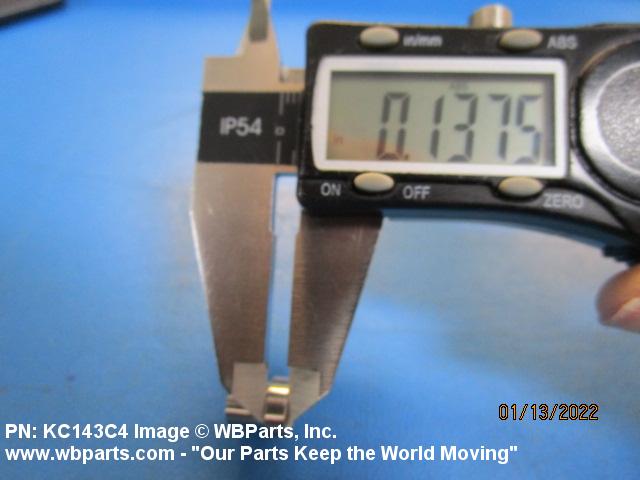

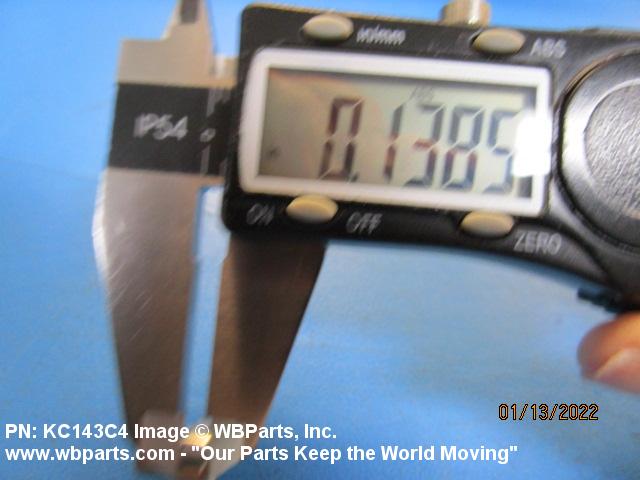

| FLANGE WIDTH | 0.141 INCHES NOMINAL |

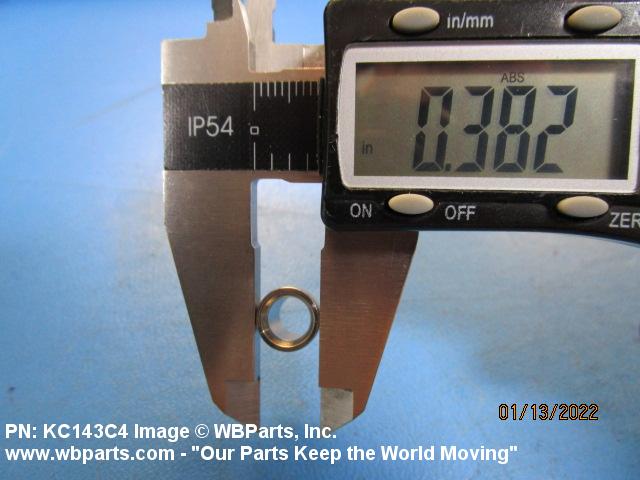

| FLANGE OUTSIDE DIAMETER | 0.383 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |

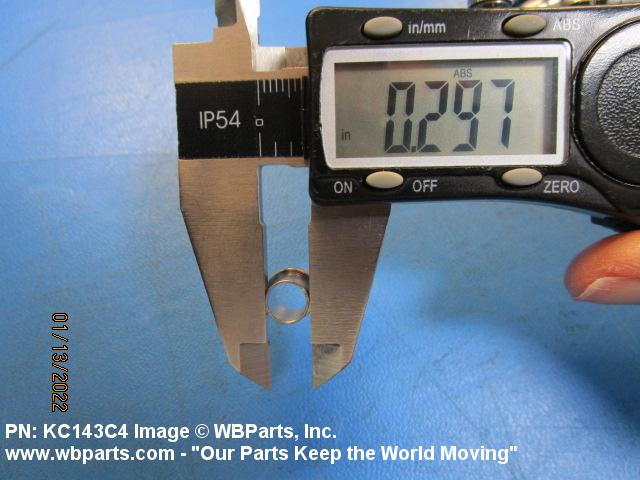

| SLEEVE OUTSIDE DIAMETER | 0.297 INCHES NOMINAL |
| UNIT PACKAGE QUANTITY | 1 |
| UNIT PACKAGE TYPE | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4730-00-502-9193
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
