NSN 4730-00-511-7988 MS51500A88S, MS51500A8-8S, MS51500B88S

Product Details | PIPE TO TUBE STRAIGHT ADAPTER

4730-00-511-7988 An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a pipe or pipe fitting to a tube or tube fitting in a straight line.

Part Alternates: MS51500A88S, MS51500A8-8S, MS51500B88S, MS51500B8-8S, AA6700688KA, AA67006-8-8KA, AC110088, AC1100-8-8, SK56546418, SK56546-418, TRW2911101, TRW291110-1, J514 1/2 IN SS AND NUT/SLEE, J51412INSSANDNUTSLEE, MILF18866, MIL-F-18866, J514, 202188C, 2021-8-8C, 2460167, 246016-7, 2730396003, 273-0396-003, 334616P01, 5217X8X8, 61B11752, 61B1175-2, 8486542, 8-8 070102S, 8-8 070102SA, 8-8-0103-316, 88070102S, 88070102SA, 88FBTXSS, 8-8FBTXSS, 8-8FBTX-SS, 4730-00-511-7988, 00-511-7988, 4730005117988, 880103316, 005117988

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-511-7988	03776 ( ADAPTER, STRAIGHT, PIPE TO TUBE )

Drawings & Photos | NSN 4730-00-511-7988

Part Number	Request Date	QTY	Origin
MS51500B88S	2024-08-218	20	United States
4730-00-511-7988	2024-01-18	2	AE
4730-00-511-7988	2023-12-362	356	DIBBS
4730-00-511-7988	2023-09-250	243	DIBBS
4730-00-511-7988	2023-06-159	167	DIBBS
4730-00-511-7988	2023-03-82	72	DIBBS
4730-00-511-7988	2022-12-349	2	United States
4730-00-511-7988	2021-06-172	308	DIBBS
4730-00-511-7988	2021-06-154	308	DIBBS
4730-00-511-7988	2020-11-314	2	Singapore
MS51500A88S	2020-11-307	2	US
MS51500A88S	2020-11-307	2	US
MS51500B88S	2019-04-115	1	United States
4730-00-511-7988	2017-03-61	674	DIBBS
4730-00-511-7988	2016-10-276	457	DIBBS
J514	2015-02-48	1	us
4730-00-511-7988	2013-12-353	343	DIBBS
4730-00-511-7988	2013-11-324	336	DIBBS
4730-00-511-7988	2011-10-284	266	DIBBS
88FBTXSS	2011-09-257	10	ET
4730-00-511-7988	2011-09-245	250	DIBBS
4730-00-511-7988	2010-08-214	278	DIBBS
J514	2010-02-47	20	us
AC110088	2008-02-55	1	US

Cross Reference | NSN 4730-00-511-7988

Part Number	Cage Code	Manufacturer
2021-8-8C	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
246016-7	05824	AEROJET ROCKETDYNE, INC.
273-0396-003	94756	BOEING COMPANY, THE DBA BOEING
334616P01	33654	HOWDEN FLUID SYSTEMS
334616P01	58163	MEGGITT (NORTH HOLLYWOOD), INC. DBA MEGGITT CONTROL SYSTEMS
5217X8X8	79470	DANA CORP WEATHERHEAD DIV
61B1175-2	07399	BEECH AIRCRAFT CORP SUB OF RAYTHEON CO
8-8-0103-316	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
8-8FBTX-SS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
8-8FBTX-SS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
8-8FBTXSS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
8486542	18876	U S ARMY AVIATION AND MISSILE COMMAND
AA67006-8-8KA	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AC1100-8-8	98660	LUBE DEVICES INC FLODAR FLUID POWER FITTINGS DIV
MIL-F-18866	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51500A8-8S	00624	EATON CORPORATION DBA AEROSPACE DIV
MS51500A8-8S	0FW39	BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
MS51500A8-8S	30327	IMPERIAL
MS51500A8-8S	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
MS51500A8-8S	93188	L AND L MFG CO
MS51500A8-8S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51500A8-8S	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
MS51500A8-8S	98660	LUBE DEVICES INC FLODAR FLUID POWER FITTINGS DIV
MS51500A8-8S	R1120	SATAIR A/S
MS51500B8-8S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SK56546-418	07703	ATK LAUNCH SYSTEMS INC. DBA ATK LAUNCH SYSTEMS-PROMONTORY
TRW291110-1	33654	HOWDEN FLUID SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-511-7988

Compare

Related Products | NSN 4730-00-511-7988

4730-00-511-7989, 4730-00-511-7991, 4730-00-511-7995, 4730-00-511-7997, 4730-00-511-7998

Technical Data | NSN 4730-00-511-7988

Characteristic	Specifications
MATERIAL	STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66,300 SERIES FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35,TYPE 1 OR 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	AIR 1ST RESPONSE HYDRAULIC FLUID 2ND RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	250.0 DEG FAHRENHEIT SINGLE RESPONSE
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END
CONNECTION STYLE	B64 FLARED 1ST END B67B PLAIN 2ND END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.500 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNF 1ST END NPTF 2ND END

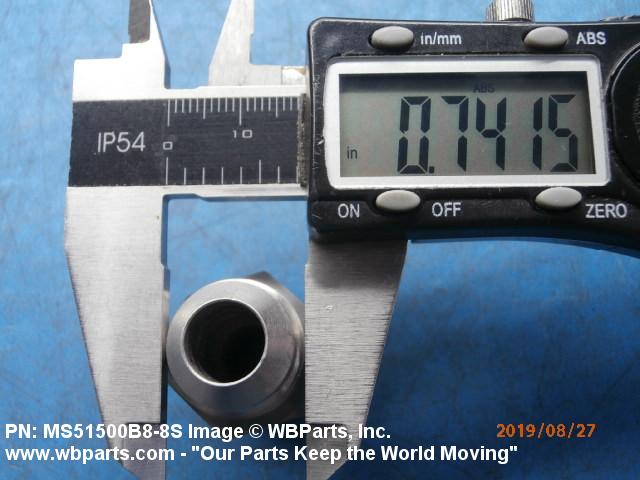

NOMINAL THREAD SIZE	0.750 INCHES 1ST END 0.500 INCHES 2ND END
THREAD CLASS	2A 1ST END

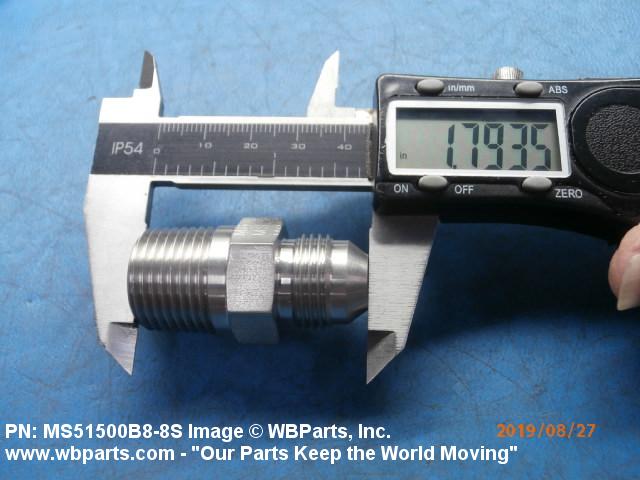

NOMINAL OVERALL LENGTH	1.790 INCHES
FURNISHED ITEMS AND QUANTITY	1 TUBE COUPLING NUT W/SLEEVE
SPECIFICATION/STANDARD DATA	81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD AND 96906-MS51500 GOVERNMENT STANDARD
NONDEFINITIVE SPEC/STD DATA	2A FIGURE
III END ITEM IDENTIFICATION	FBN SPRUANCE CLASS DD (963)
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-18866
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51500A8-8S

Restrictions/Controls & Freight Information | NSN 4730-00-511-7988

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-00-511-7988

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	D	Surface to Air Missiles
Weapons Systems/End Item or Homogeneous Group	DM	Air-to-Air Stinger (ATAS)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Inventory Account Codes	S	Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required
Inventory Account Codes	0	Item not controlled by serial number.
Special Material Content Codes	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	ZNC	Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000
Agency	GP	U.S. Coast Guard
Service Organization	C	U.S. Coast Guard
Reparability	C
Acquisition Advice Codes	L	LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
