NSN 4730-00-517-9663 RG12, 00-517-9663, 005179663
Product Details | PRIMING CUP
4730-00-517-9663 An item consisting of a plug or needle type valve having a cup mounted on top, specifically designed for the introduction of a priming fluid to, or the relief of pressure from, the cylinders of such machinery as internal combustion engines or pumps.20228050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components
Part Alternates: RG12, 4730-00-517-9663, 00-517-9663, 4730005179663, 005179663
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 00-517-9663 | 10233 ( CUP, PRIMING ) |

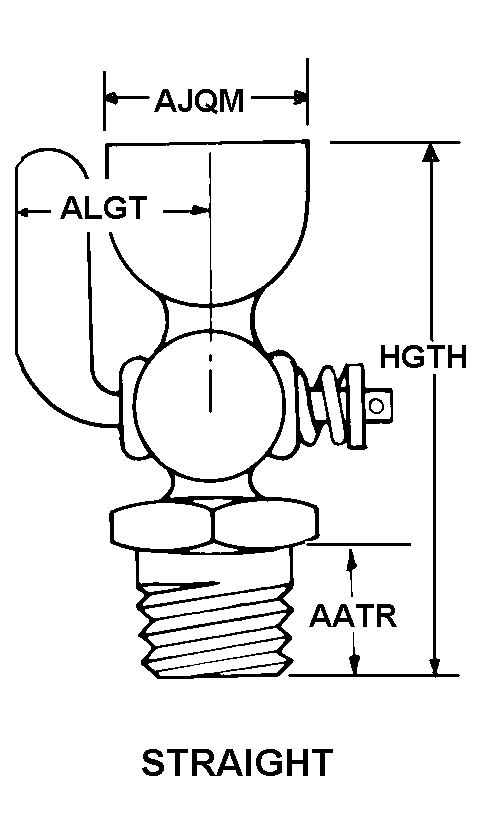

Drawings & Photos | NSN 4730-00-517-9663
Demand History | NSN 4730-00-517-9663
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RG12 | 2018-09-268 | 12 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-517-9663
Technical Data | NSN 4730-00-517-9663
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | F1 STRAIGHT |
| SHANK LENGTH | 1.000 INCHES NOMINAL |
| BOWL DIAMETER | 0.750 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| WIDTH ACROSS FLATS | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 66289 |
| DESIGN CONTROL REFERENCE | RG12 |
Restrictions/Controls & Freight Information | NSN 4730-00-517-9663
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
