NSN 4730-00-528-2743 F3353, FC3353K, 5282743

Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR

4730-00-528-2743 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).

Part Alternates: F3353, FC3353K, 5282743 , 55935, 705MF1, 74708310, 055935, 104661H1, 11201091, 112-01091, 1199S695, 200M1, 220M1, 4730-00-528-2743, 00-528-2743, 4730005282743, 005282743

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1963	00-528-2743	18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE )

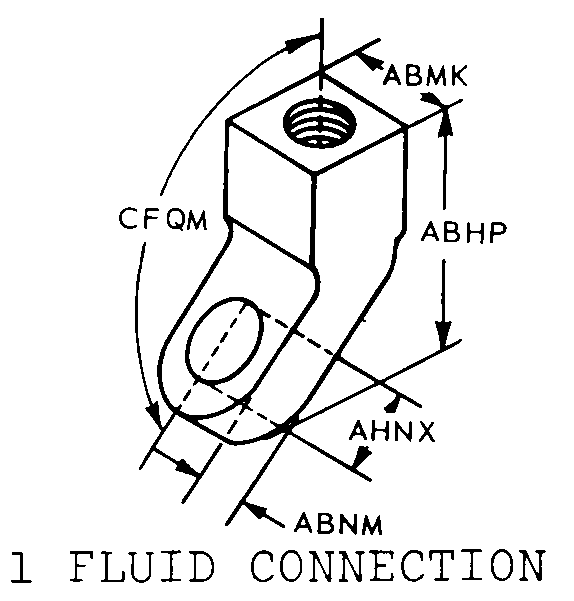

Drawings & Photos | NSN 4730-00-528-2743

Part Number	Request Date	QTY	Origin
4730-00-528-2743	2017-09-271	160	DIBBS
4730-00-528-2743	2017-08-220	128	DIBBS
4730-00-528-2743	2017-05-142	607	DIBBS
4730-00-528-2743	2017-05-130	607	DIBBS
4730-00-528-2743	2017-05-130	11	DIBBS
4730-00-528-2743	2010-09-270	1097	DIBBS
4730-00-528-2743	2010-08-242	574	DIBBS
4730-00-528-2743	2010-08-217	229	DIBBS
4730-00-528-2743	2010-07-209	321	DIBBS
4730-00-528-2743	2010-04-92	391	DIBBS
4730-00-528-2743	2010-02-36	364	DIBBS
4730-00-528-2743	2009-10-292	882	DIBBS
4730-00-528-2743	2009-09-251	309	DIBBS

Cross Reference | NSN 4730-00-528-2743

Part Number	Cage Code	Manufacturer
055935	23862	MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
104661H1	0SAT8	KOMATSU AMERICA CORP.
104661H1	29510	KOMATSU AMERICAN INTL CO
104661H1	31007	NAVISTAR INTL CORP
104661H1	92679	NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
112-01091	79470	DANA CORP WEATHERHEAD DIV
1199S695	3D6E9	AXLETECH INTERNATIONAL, LLC
1199S695	61361	REXWORKS INC
1199S695	78500	MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS,
200M1	56442	DIAMOND REO TRUCK CO
220M1	77640	TRW INC DBA COMMERCIAL STEERING DIVISION
4730005282743	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5282743	01276	EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
5282743	03776	ESCO INC
5282743	05415	LINDE LIFT TRUCK CORP.
5282743	0AHU0	KALMAR AC INC
5282743	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
5282743	556A6	LINDE MATERIAL HANDLING NORTH AMERICA CORP
5282743	56442	DIAMOND REO TRUCK CO
5282743	61361	REXWORKS INC
5282743	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
5282743	77060	GENERAL MOTORS CORP PACKARD ELECTRIC DIV
5282743	77640	TRW INC DBA COMMERCIAL STEERING DIVISION
5282743	78500	MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS,
5282743	79470	DANA CORP WEATHERHEAD DIV
55935	24617	GENERAL MOTORS CORP
705MF1	05415	LINDE LIFT TRUCK CORP.
74708310	0AHU0	KALMAR AC INC
F3353	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
FC3353K	63477	FEDERAL MOGUL CORP SUB WAGNER BRAKE
