NSN 4730-00-540-2233 MS21913D24, MS21913W24, AS18280
Product Details | THREADED TUBE FITTING PLUG
4730-00-540-2233 A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD.
Part Alternates: MS21913D24, MS21913W24, AS18280, AS21913, SAE AS18280 , SAE AS21913 , SAEAS18280, SAEAS21913, 4730-00-540-2233, 00-540-2233, 4730005402233, 005402233
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-540-2233 | 28613 ( PLUG, TUBE FITTING, THREADED ) |

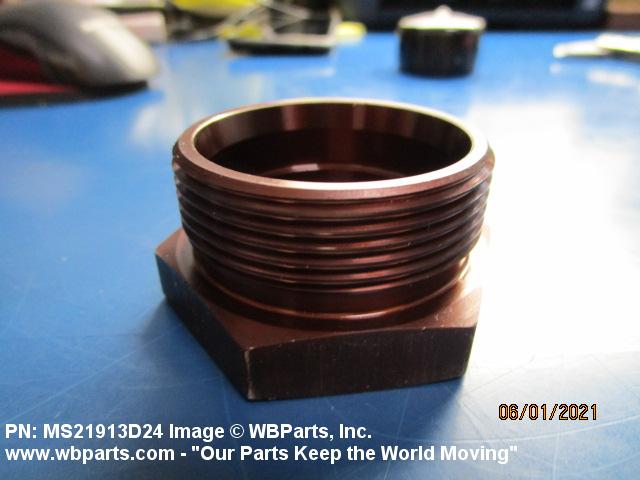

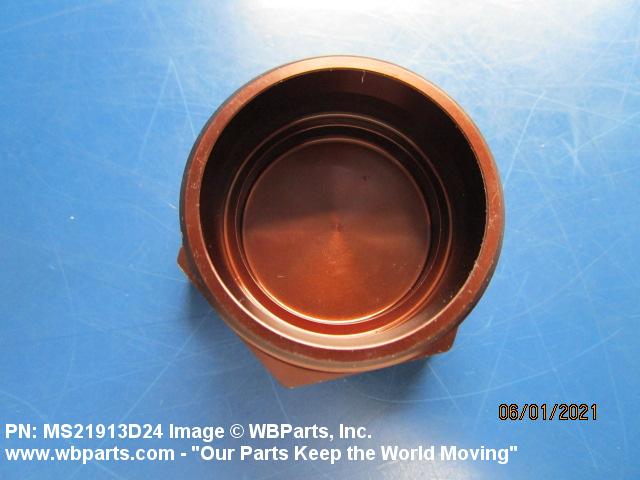

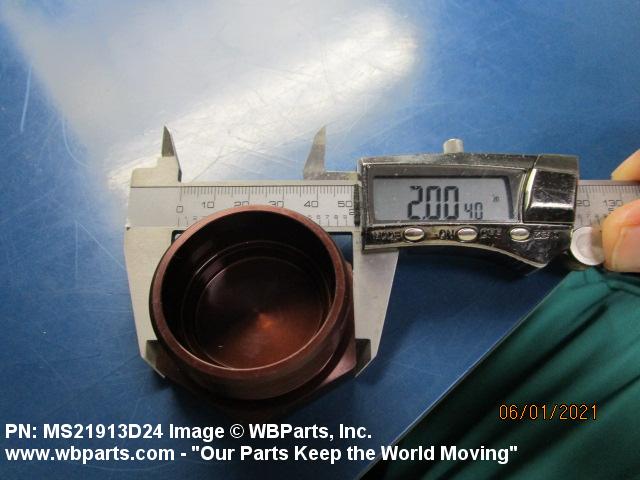

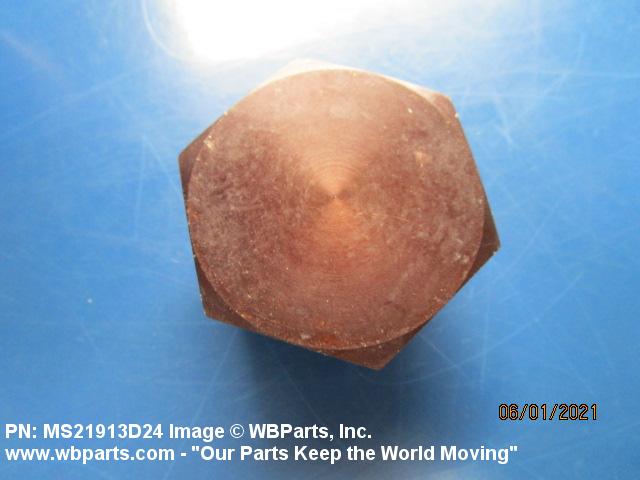

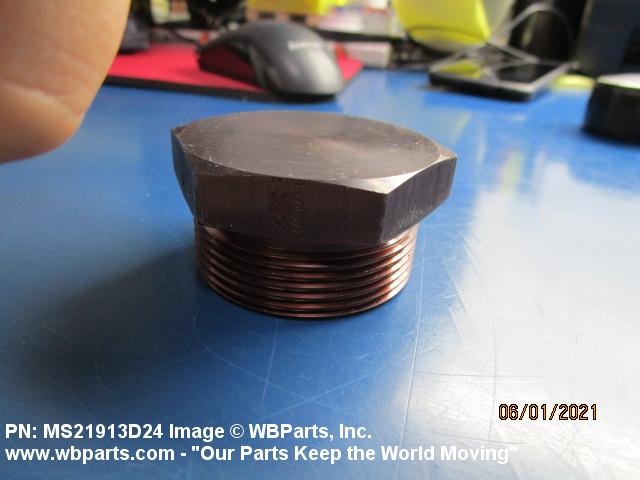

Drawings & Photos | NSN 4730-00-540-2233
Demand History | NSN 4730-00-540-2233
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21913W24 | 2024-06-159 | 6 | ES |
| 4730-00-540-2233 | 2023-11-334 | 20 | DIBBS |
| 4730-00-540-2233 | 2023-04-96 | 20 | DIBBS |
| 4730-00-540-2233 | 2023-03-73 | 2 | DIBBS |
| 4730-00-540-2233 | 2023-02-32 | 3 | DIBBS |
| 4730-00-540-2233 | 2022-09-258 | 3 | DIBBS |
| 4730-00-540-2233 | 2022-08-228 | 1 | DIBBS |
| 4730-00-540-2233 | 2022-08-226 | 3 | DIBBS |
| 4730-00-540-2233 | 2022-06-165 | 2 | DIBBS |
| MS21913D24 | 2021-07-203 | 10 | Germany |
| MS21913D24 | 2021-03-76 | 1 | Germany |
| 4730-00-540-2233 | 2020-12-350 | 1 | DIBBS |
| 4730-00-540-2233 | 2020-09-260 | 1 | DIBBS |
| 4730-00-540-2233 | 2018-06-172 | 1 | DIBBS |
| 4730-00-540-2233 | 2016-10-298 | 1 | DIBBS |
| 4730-00-540-2233 | 2016-03-81 | 9 | DIBBS |
| 4730-00-540-2233 | 2016-03-69 | 9 | DIBBS |
| AS18280 | 2014-10-280 | 1 | US |
| AS21913 | 2012-12-360 | 1 | CN |
| 4730-00-540-2233 | 2009-04-106 | 14 | DIBBS |
Cross Reference | NSN 4730-00-540-2233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21913D24 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21913D24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21913W24 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| SAE AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| SAE AS21913 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-540-2233
Related Products | NSN 4730-00-540-2233
Technical Data | NSN 4730-00-540-2233
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C43 PLUG, TUBE FITTING FLARELESS |

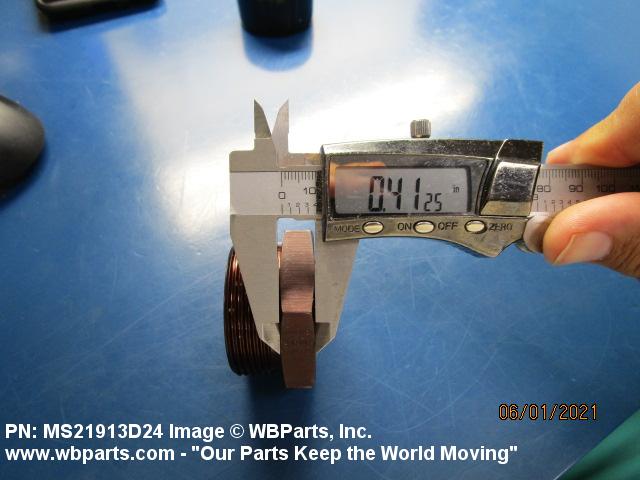

| HEAD HEIGHT | 0.396 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |

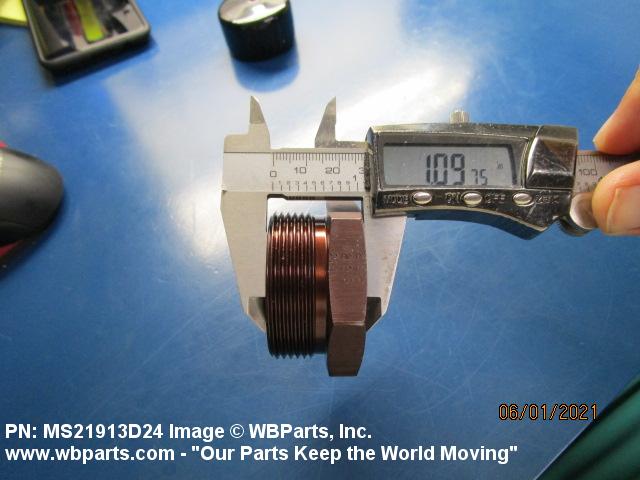

| OVERALL LENGTH | 1.094 INCHES NOMINAL |
| CONNECTION STYLE | J5 FLARELESS |
| THREAD SERIES DESIGNATOR | UNJ EXTERNAL |

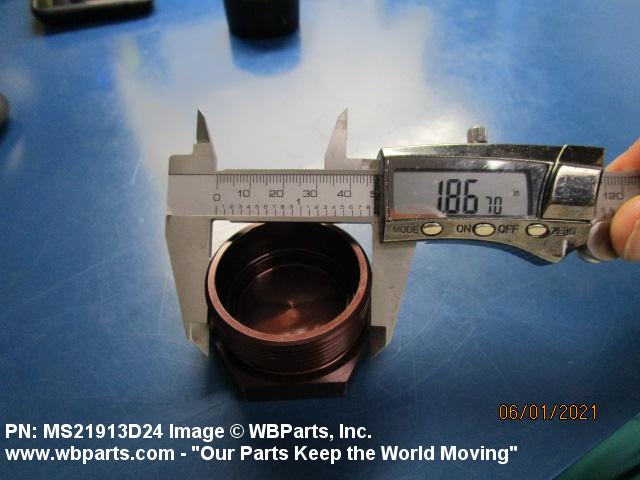

| NOMINAL THREAD SIZE | 1.875 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 12 EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SEAT ANGLE | 12.0 DEGREES |
| SPECIFICATION/STANDARD DATA | 96906-MS21913 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | 22F HELICOPTER, IROQUOIS HH/UH-1 |
Restrictions/Controls & Freight Information | NSN 4730-00-540-2233
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-540-2233
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
