NSN 4730-00-541-3611 AS1100K08, KC124C8, KC124K8
Product Details | TUBE NIPPLE
4730-00-541-3611 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: AS1100K08, KC124C8, KC124K8, 4730-00-541-3611, 00-541-3611, 4730005413611, 005413611
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 SEP 1974 | 00-541-3611 | 03783 ( NIPPLE, TUBE ) |

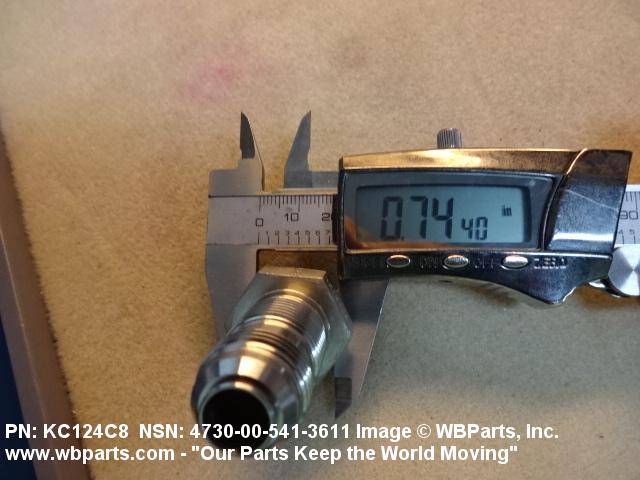

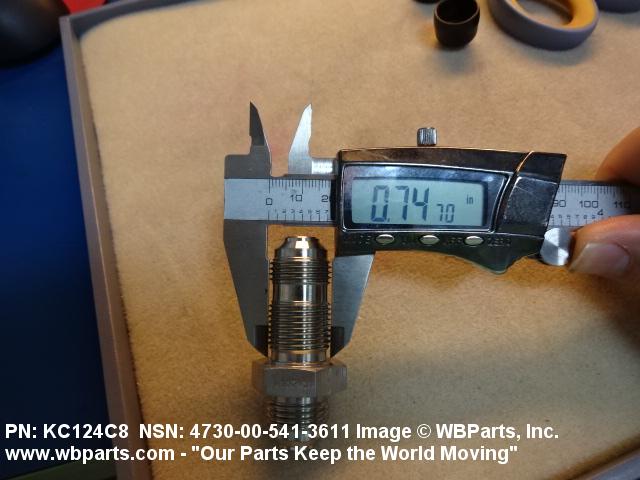

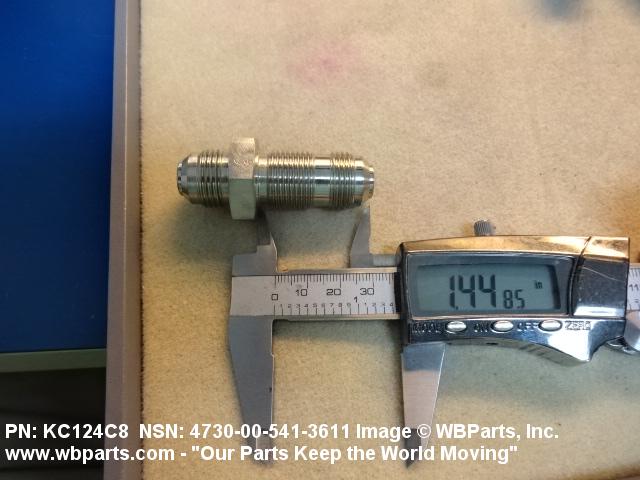

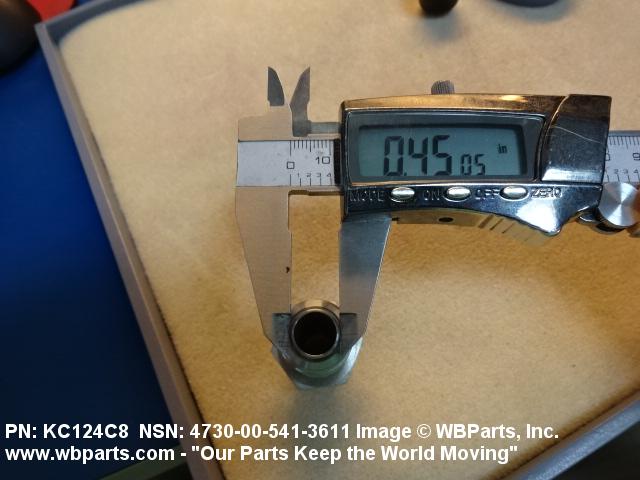

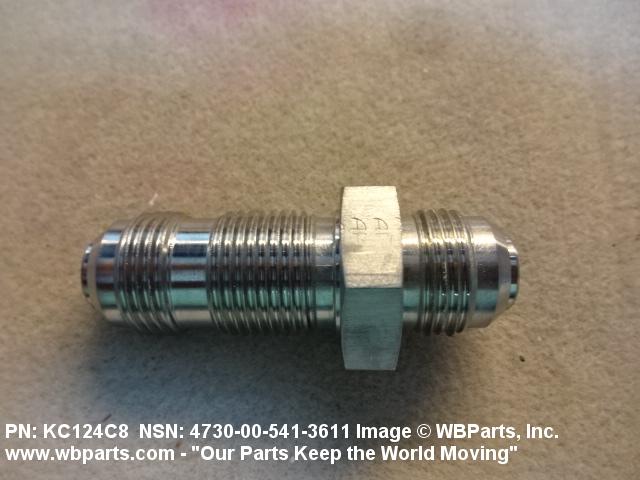

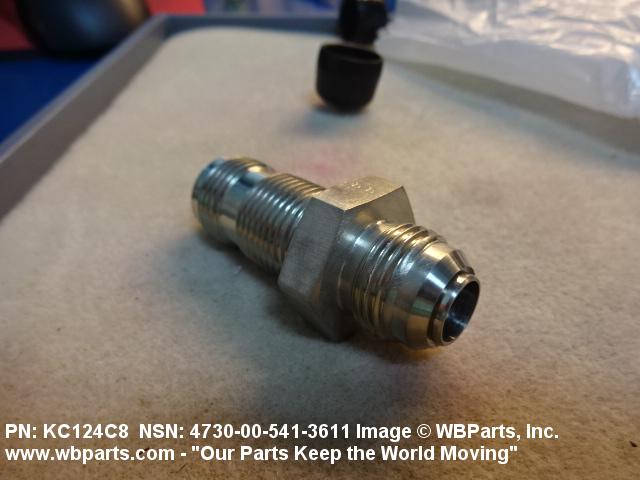

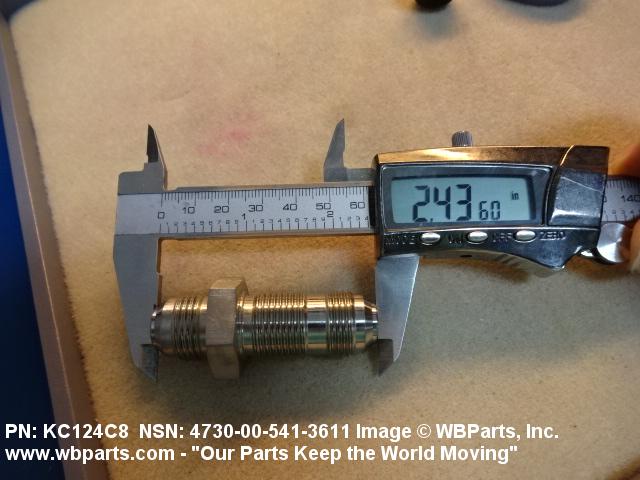

Drawings & Photos | NSN 4730-00-541-3611
Demand History | NSN 4730-00-541-3611
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS1100K08 | 2024-08-239 | 3 | us |
| AS1100K08 | 2022-12-335 | 50 | US |
| AS1100K08 | 2017-12-346 | 8 | United States |
| AS1100K08 | 2017-12-346 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-541-3611
Technical Data | NSN 4730-00-541-3611
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE INSIDE PASSIVATE OUTSIDE |
| STYLE DESIGNATOR | A64 FLARED W/BULKHEAD THREAD |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END 0.750 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| LEG LENGTH | 1.438 INCHES NOMINAL 1ST END 0.657 INCHES NOMINAL 2ND END |
| NOMINAL OVERALL LENGTH | 2.453 INCHES |
| SPECIAL FEATURES | MACHINED GROOVE IN FLARED ENDS TO ACCOMMODATE SEAL RINGS PER KC103 |
Restrictions/Controls & Freight Information | NSN 4730-00-541-3611
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
