NSN 4730-00-541-4319 MS21915D43, MS21915D4-3, MS21915W43
Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-00-541-4319 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: MS21915D43, MS21915D4-3, MS21915W43, MS21915W4-3 , AS18280, AS21915 , 13011215, 4730-00-541-4319, 00-541-4319, 4730005414319, 005414319
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-541-4319 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |

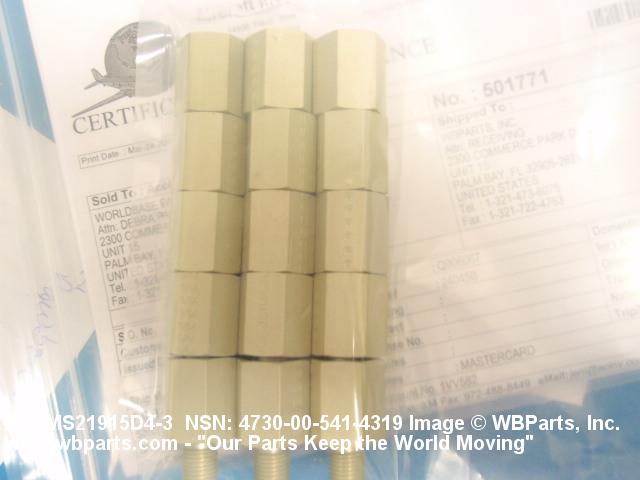

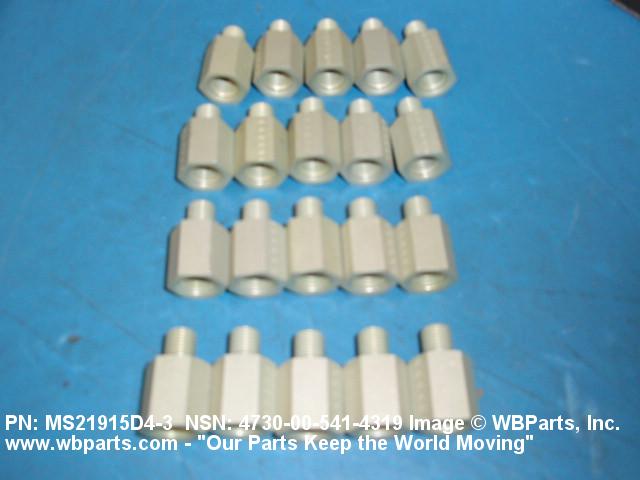

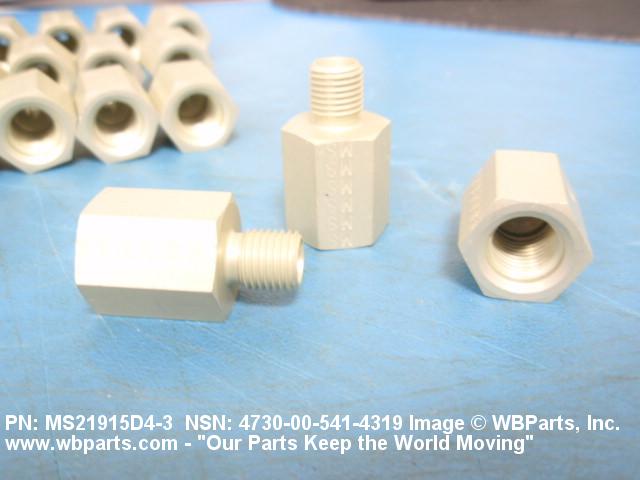

Drawings & Photos | NSN 4730-00-541-4319
Demand History | NSN 4730-00-541-4319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-541-4319 | 2024-03-66 | 4 | DIBBS |
| 4730-00-541-4319 | 2024-01-23 | 1 | DIBBS |
| 4730-00-541-4319 | 2023-12-356 | 5 | DIBBS |
| 4730-00-541-4319 | 2023-12-345 | 5 | DIBBS |
| 4730-00-541-4319 | 2021-07-203 | 3 | DIBBS |
| 4730-00-541-4319 | 2021-07-192 | 3 | DIBBS |
| 4730-00-541-4319 | 2021-07-188 | 1 | DIBBS |
| 4730-00-541-4319 | 2017-02-58 | 2 | DIBBS |
| 4730-00-541-4319 | 2016-05-143 | 7 | DIBBS |
| 4730-00-541-4319 | 2015-12-362 | 1 | DIBBS |
| 4730-00-541-4319 | 2015-12-348 | 1 | DIBBS |
| 4730-00-541-4319 | 2015-07-187 | 4 | DIBBS |
| 4730-00-541-4319 | 2015-05-121 | 7 | DIBBS |
| AS18280 | 2014-10-280 | 1 | US |
| 4730-00-541-4319 | 2013-09-268 | 15 | DIBBS |
| 4730-00-541-4319 | 2010-10-285 | 20 | us |
| 4730-00-541-4319 | 2010-02-54 | 15 | United States |
| MS21915D43 | 2010-02-54 | 12 | US |
Cross Reference | NSN 4730-00-541-4319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13011215 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS21915 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21915D4-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21915W4-3 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-541-4319
Related Products | NSN 4730-00-541-4319
Technical Data | NSN 4730-00-541-4319
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-268,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED INTERNAL BOSS 2ND END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B9 GASKET SEAL 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.188 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.375 INCHES 1ST END 0.438 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3B 2ND END |
| NOMINAL OVERALL LENGTH | 1.250 INCHES |
| SPECIFICATION/STANDARD DATA | 96906-MS21915 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | VLA MISSILE, GUIDED INTERCEPT (HAWK) |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21915D4-3 |
Restrictions/Controls & Freight Information | NSN 4730-00-541-4319
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-541-4319
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
