NSN 4730-00-541-8151 8, 8527854, 00-541-8151
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-541-8151 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 8, 8527854, 4730-00-541-8151, 00-541-8151, 4730005418151, 005418151
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-541-8151 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-541-8151
Demand History | NSN 4730-00-541-8151
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8 | 2024-11-318 | 1 | us |
| 4730-00-541-8151 | 2012-05-143 | 14 | MANUAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-541-8151
Related Products | NSN 4730-00-541-8151
Technical Data | NSN 4730-00-541-8151
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |

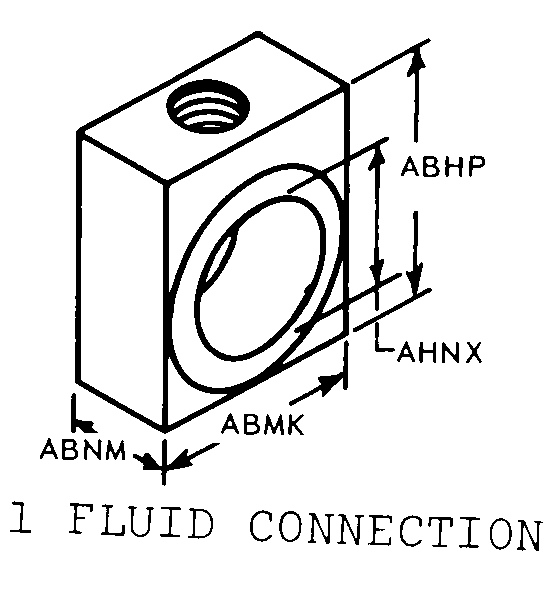

| STYLE DESIGNATOR | D36 1 FLUID CONNECTION |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| THICKNESS | 1.438 INCHES NOMINAL |
| SECOND BOLT HOLE DIAMETER | 1.496 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | E5 PLAIN |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/8 IN. OD TUBE |
| THREAD SIZE | 9/16 IN.-18 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
| SPECIAL FEATURES | A. FOUR MTG HOLES 0.390 IN. DIA LOCATED 1.630 IN. BY 1.750 IN. C TO C |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 8527854 |
