NSN 4730-00-543-8885 BACT16W, C20017AD, 00-543-8885
Product Details | TUBE COUPLING BODY
4730-00-543-8885 An incomplete fitting which, when installed is designed to join together in a straight line two tubes and/or tube fittings of the same size. The item may have a complete connection on one end; the other end always requires an additional nut, sleeve, ferrule or the like to make a complete end connection.
Part Alternates: BACT16W, C20017AD, 4730-00-543-8885, 00-543-8885, 4730005438885, 005438885
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 OCT 1974 | 00-543-8885 | 32835 ( COUPLING BODY, TUBE ) |
Drawings & Photos | NSN 4730-00-543-8885
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-543-8885
Technical Data | NSN 4730-00-543-8885
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T851 |
| SURFACE TREATMENT | ANODIZED AND DICHROMATE |

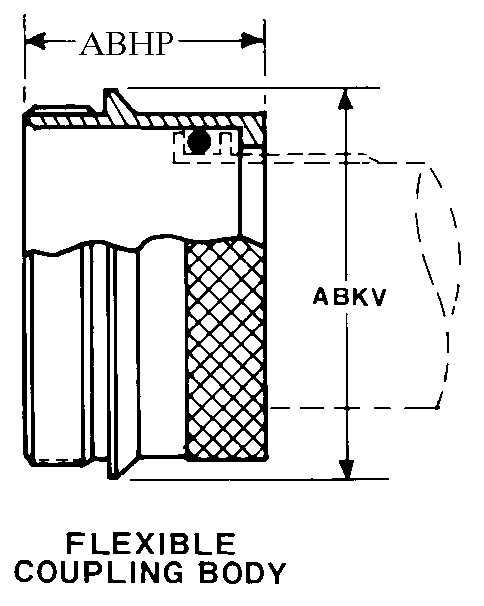

| STYLE DESIGNATOR | U4 FLEXIBLE COUPLING BODY |
| OVERALL LENGTH | 1.140 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.330 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.750 INCHES NOMINAL |
| THREAD SIZE | 2-1/4-16 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | DRY FILM LUBE PER MIL-L-8937 OR MIL-L-46010 |
Restrictions/Controls & Freight Information | NSN 4730-00-543-8885
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
