Product Details | PIPE FLANGE
4730-00-546-5609 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 134473, 4730-00-546-5609, 00-546-5609, 4730005465609, 005465609
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-546-5609 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-00-546-5609
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-00-546-5609
4730-00-546-5615, 4730-00-546-5618, 4730-00-546-5619, 4730-00-546-5631, 4730-00-546-5641
Technical Data | NSN 4730-00-546-5609
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66,AISI/SAE 1137 FED STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 7 SQUARE, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 2.890 INCHES NOMINAL |
| FLANGE WIDTH | 0.206 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.342 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 2 |
| OUTER BOLT CIRCLE HOLE QUANTITY | 2 |
| INNER BOLT CIRCLE HOLE QUANTITY | 2 |

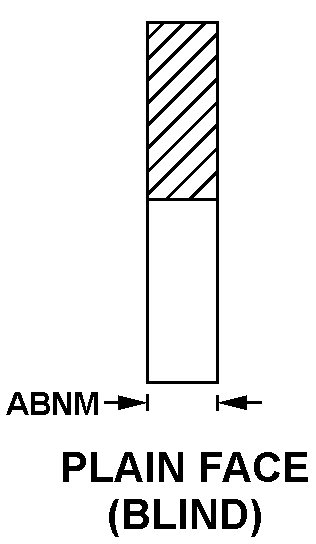

| FLANGE SECTION STYLE | 22 PLAIN FACE |
| THICKNESS | 0.180 INCHES NOMINAL |
| NECK DIAMETER | 1.682 INCHES NOMINAL |
| NECK HEIGHT | 0.380 INCHES NOMINAL |
| REDUCER FLANGE HOLE TYPE | CONCENTRIC |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.688 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.688 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| FACE SEATING SURFACE CONDITION | MACHINED |
