Product Details | UNION THREAD PIECE
4730-00-554-9871 A fitting used with a union nut and a tailpiece to form a union.
Part Alternates: A3162153, A316215-3, 4730-00-554-9871, 00-554-9871, 4730005549871, 005549871
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-554-9871 | 04141 ( THREAD PIECE, UNION ) |

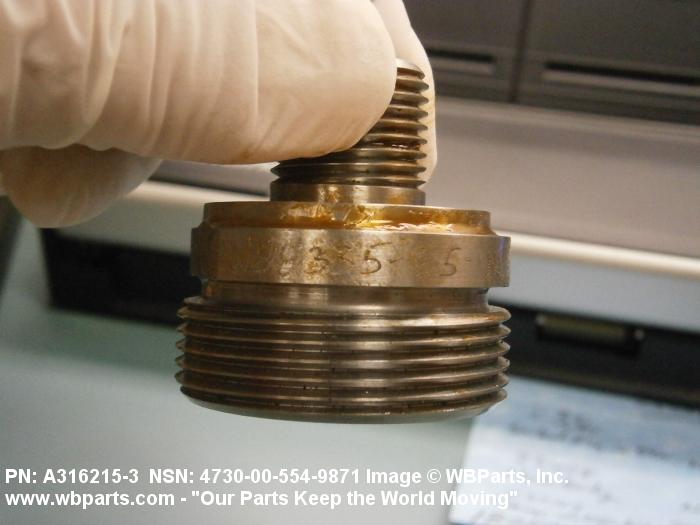

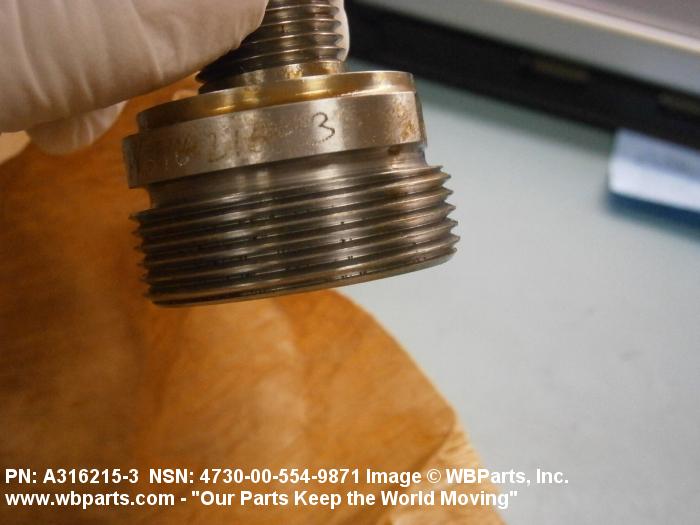

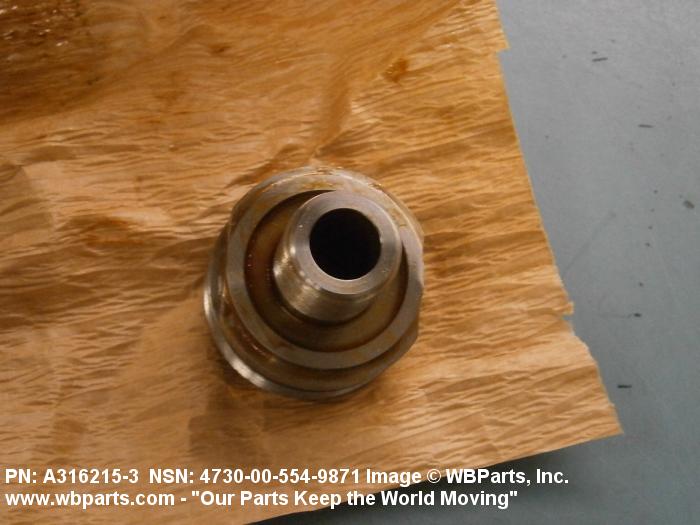

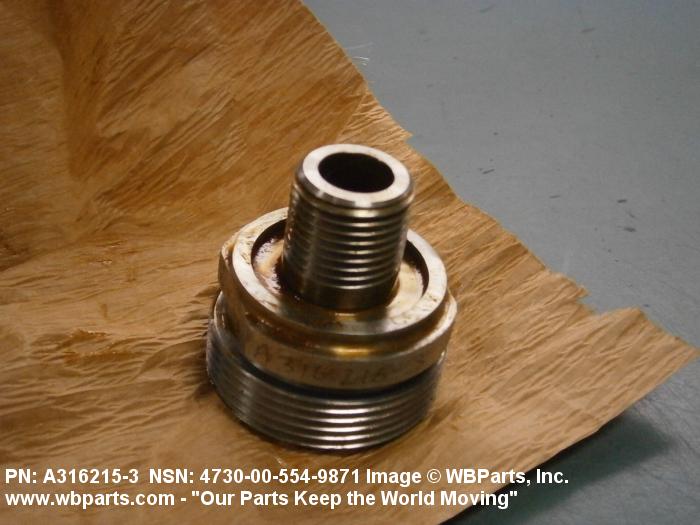

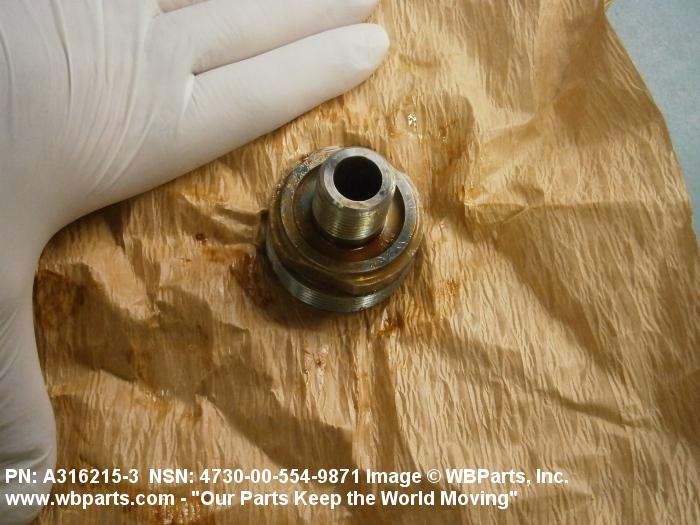

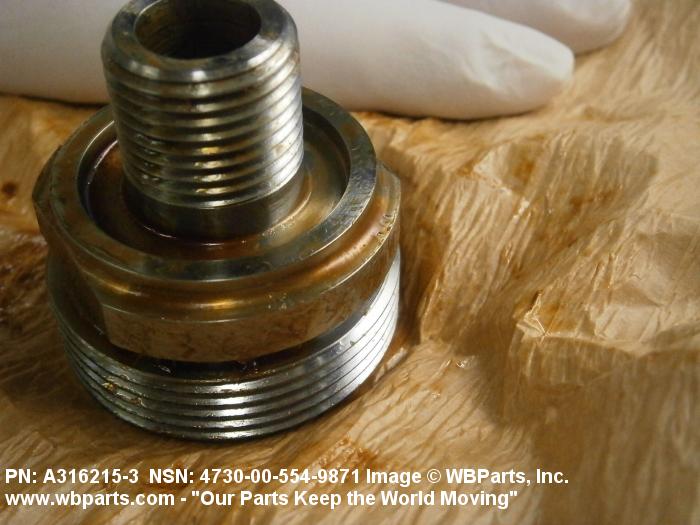

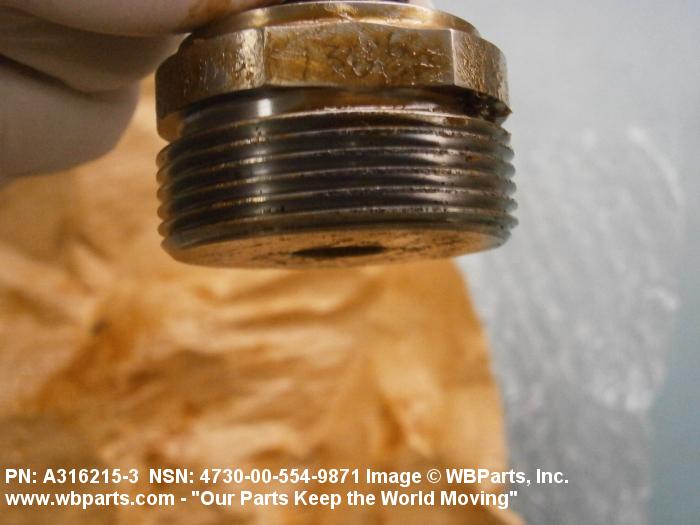

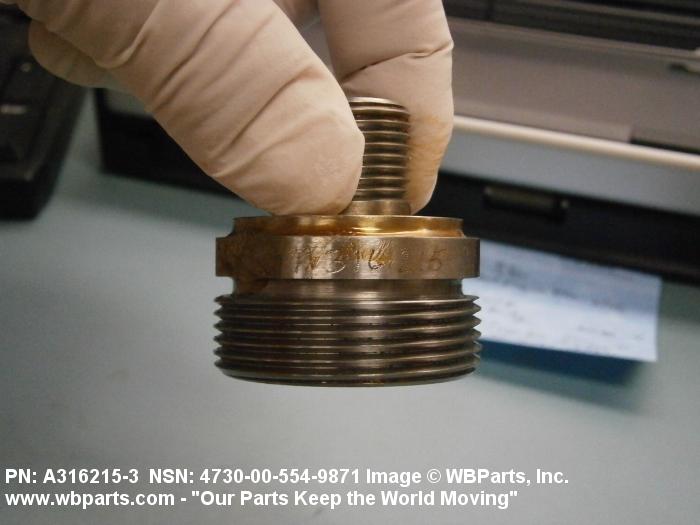

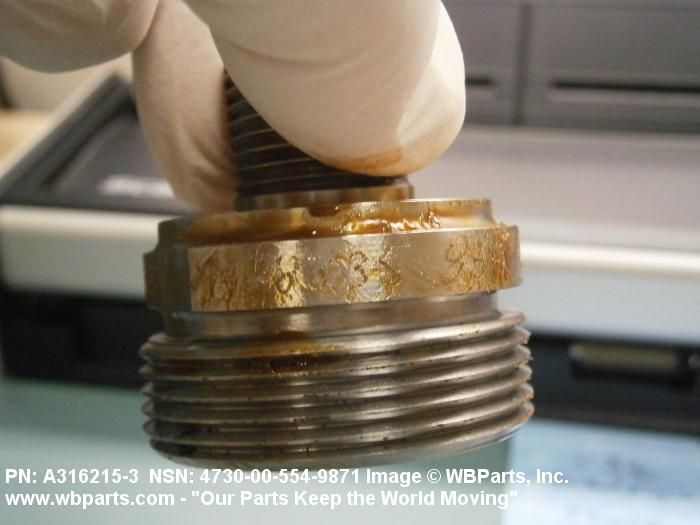

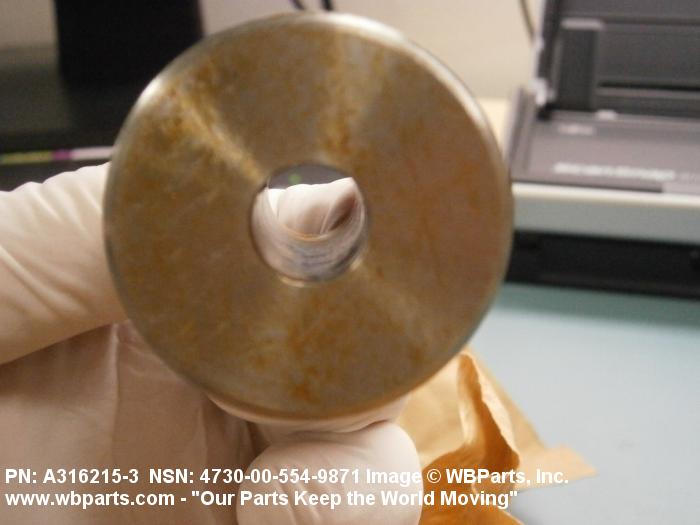

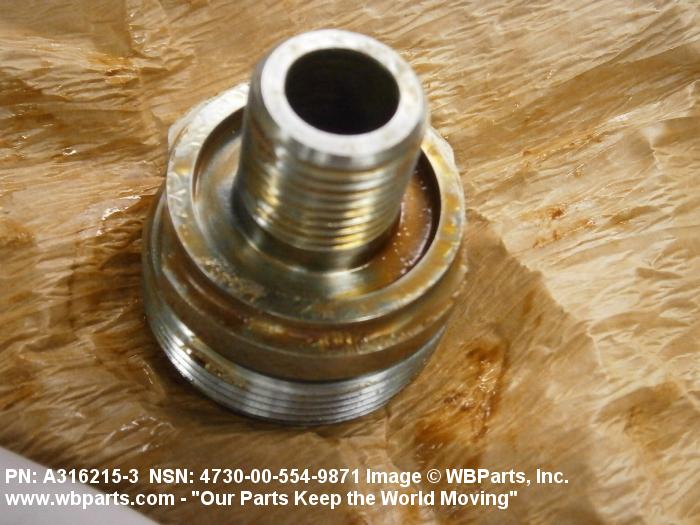

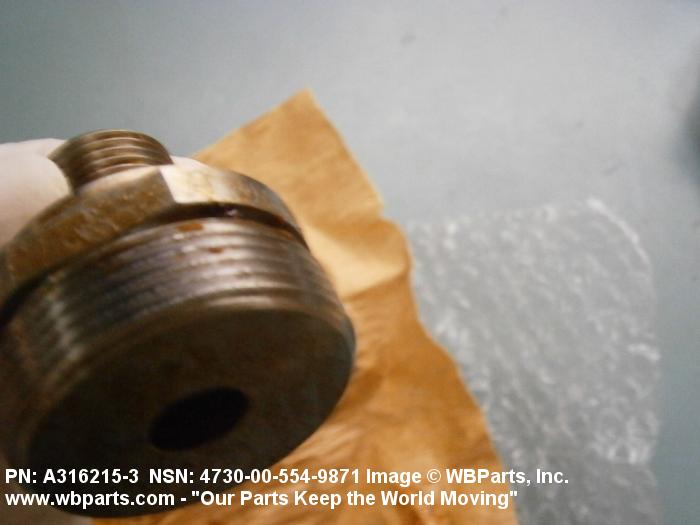

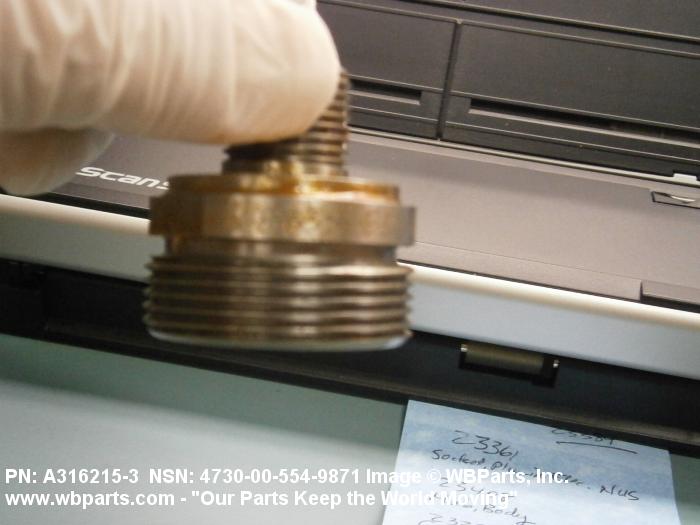

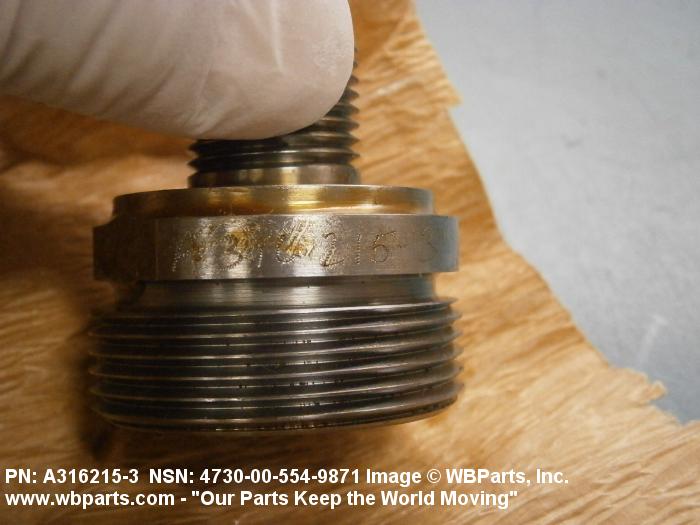

Drawings & Photos | NSN 4730-00-554-9871
Demand History | NSN 4730-00-554-9871
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A316215-3 | 2020-06-11 | 9 | DIBBS |
| A316215-3 | 2020-01-23 | 67 | DIBBS |
| 4730-00-554-9871 | 2017-05-30 | 45 | DIBBS |
| 4730-00-554-9871 | 2013-08-20 | 50 | DIBBS |
| 4730-00-554-9871 | 2013-08-15 | 3 | United States |
| 4730-00-554-9871 | 2013-01-18 | 37 | DIBBS |
| 4730-00-554-9871 | 2010-07-06 | 4 | DIBBS |
| 4730-00-554-9871 | 2010-06-09 | 4 | DIBBS |
| 4730-00-554-9871 | 2009-12-15 | 4 | DIBBS |
Cross Reference | NSN 4730-00-554-9871
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A316215-3 | 0JC12 | B E C SYSTEMS, INC. DBA BEC MACHINE PRODUCTS |
| A316215-3 | 17661 | HAMILL MANUFACTURING COMPANY DIV HAMILL MANUFACTURING |
| A316215-3 | 1V517 | DUHADAWAY TOOL AND DIE SHOP, INC. |
| A316215-3 | 2M490 | NASSAU TOOL WORKS, INC. |
| A316215-3 | 30828 | KROBACH MFG. CORP. |
| A316215-3 | 3BZG7 | NUFLO, INC. |
| A316215-3 | 58974 | PENN STATE TOOL & DIE CORPORATION |
| A316215-3 | 5S946 | PRE-MACH, INC. |
| A316215-3 | 6W889 | AMMCON CORP. |
| A316215-3 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| A316215-3 | 9G619 | HONEMATIC MACHINE CORPORATION |
| A316215-3 | 9U245 | MASTER RESEARCH & MANUFACTURING, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-554-9871
Related Products | NSN 4730-00-554-9871
4730-00-554-9872, 4730-00-554-9873, 4730-00-554-9874, 4730-00-554-9876, 4730-00-554-9877
Technical Data | NSN 4730-00-554-9871
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, MIL-S-6758, COMP 4130 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 92.0 ROCKWELL B MINIMUM AND 98.0 ROCKWELL B MAXIMUM |
| SEAT TYPE | STRAIGHT FACE |
| END CONNECTION TYPE | THREADED |
| THREAD SIZE | 1/2-14 |
| SCREW THREAD SERIES DESIGNATOR | NPSM |
| THREAD DIRECTION | RIGHT-HAND |
| SCREW THREAD LOCATION | EXTERNAL |
| UNION END THREAD SIZE | 1-3/4IN-12 |
| UNION END SCREW THREAD SERIES DESIGNATOR | UN |
| UNION END THREAD DIRECTION | RIGHT-HAND |
| BULKHEAD FEATURE | NOT PROVIDED |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| WORKING PRESSURE AND SERVICE TYPE | 4000.0 POUNDS PER SQUARE INCH NOMINAL WATER |
| MANUFACTURERS CODE | 80020 |
| DESIGN CONTROL REFERENCE | A316215-3 |
Restrictions/Controls & Freight Information | NSN 4730-00-554-9871
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-554-9871
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | EY | 4R/5R Cog items managed by BRASO |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
