NSN 4730-00-588-4798 CE2073D, CE-2073-D, 00-588-4798
Product Details | PACKING NUT
4730-00-588-4798 An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE.20210150024Guns, 75mm Through 125mm47300051Hose, Pipe, Tube, Lubrication, and Railing Fittings
Part Alternates: CE2073D, CE-2073-D, 4730-00-588-4798, 00-588-4798, 4730005884798, 005884798
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-588-4798 | 18028 ( PACKING NUT ) |
Drawings & Photos | NSN 4730-00-588-4798
Cross Reference | NSN 4730-00-588-4798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CE-2073-D | 09253 | BDP CO DIV OF CARRIER CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-588-4798
Technical Data | NSN 4730-00-588-4798
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

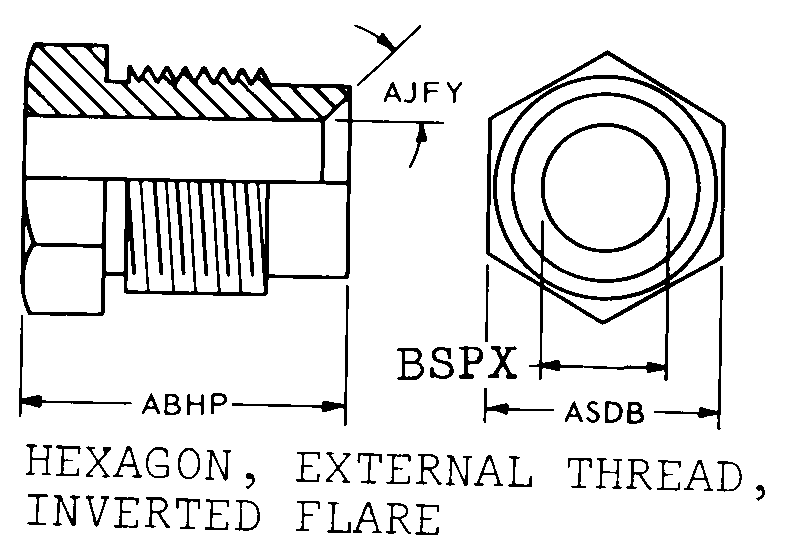

| STYLE DESIGNATOR | C1 HEXAGON, EXTERNAL THREAD, INVERTED FLARE |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | ANY ACCEPTABLE |
| SMALLEST INSIDE DIAMETER | 0.261 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 45.0 |
| THREAD SIZE | 7/16IN-14 |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| THREAD CLASS | 2A |
| THREAD LENGTH | 0.250 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| SCREW THREAD LOCATION | EXTERNAL |
Restrictions/Controls & Freight Information | NSN 4730-00-588-4798
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
