NSN 4730-00-626-9199 HO2102360, HO-210-2360 , 2102360
Product Details | TUBE SWING JOINT
4730-00-626-9199 A metallic connector designed to join two lengths of tube and/or tube fittings in a fluid line to permit swinging or turning at one or more joints. Each joint permits turning on its axis on one plane. It may incorporate bearing(s) to facilitate swinging action after installation.
Part Alternates: HO2102360, HO-210-2360 , 2102360, 210-2360, 4730-00-626-9199, 00-626-9199, 4730006269199, 006269199
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-626-9199 | 04197 ( SWING JOINT, TUBE ) |

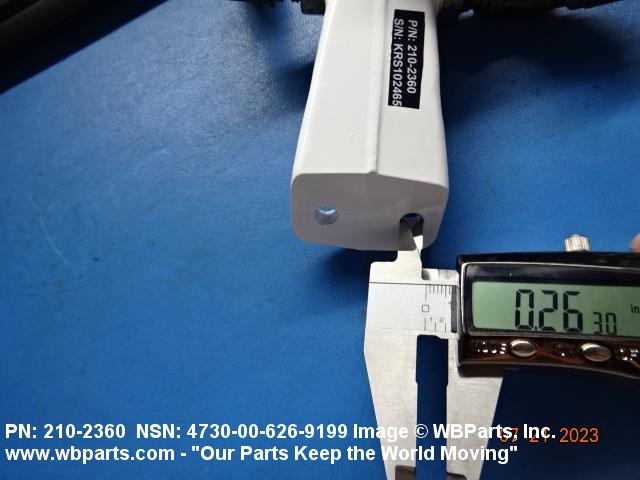

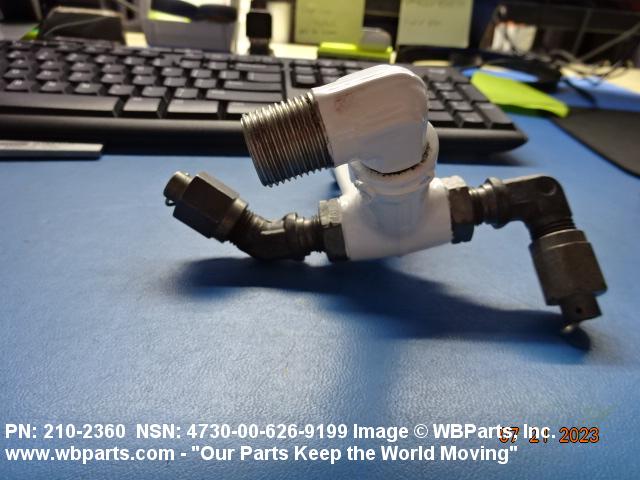

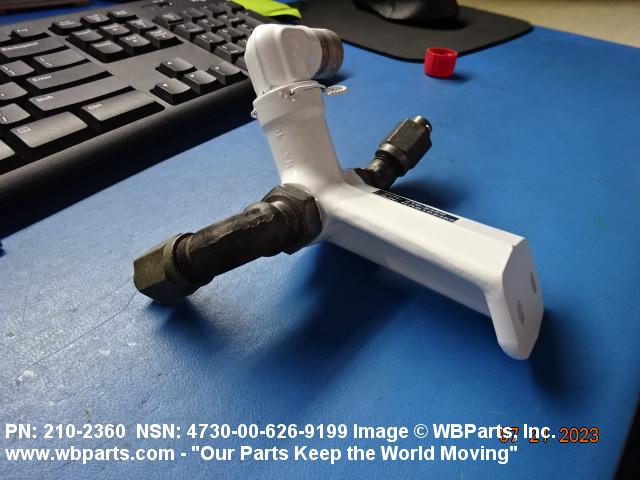

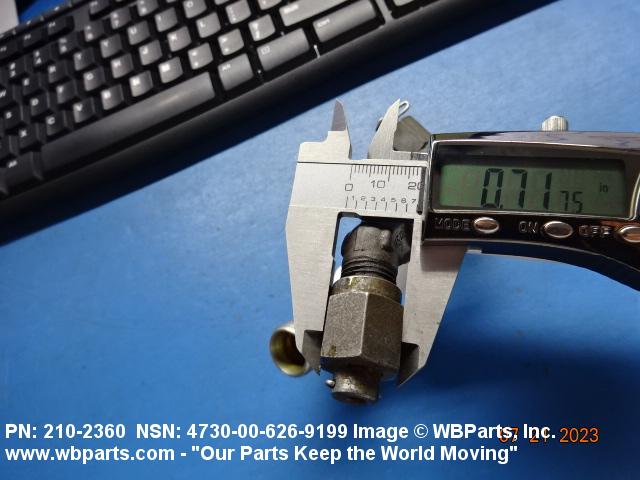

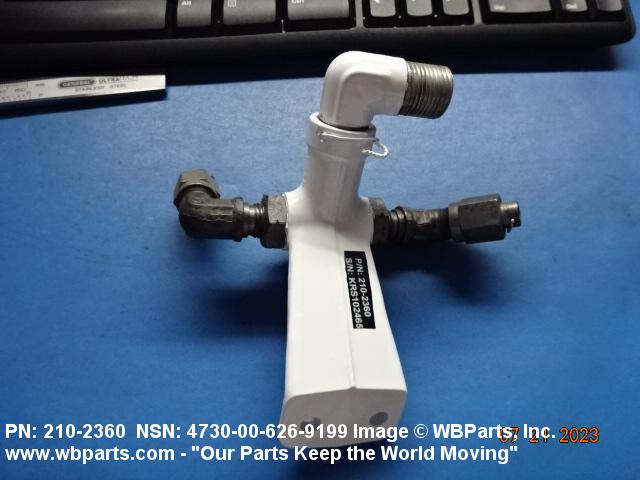

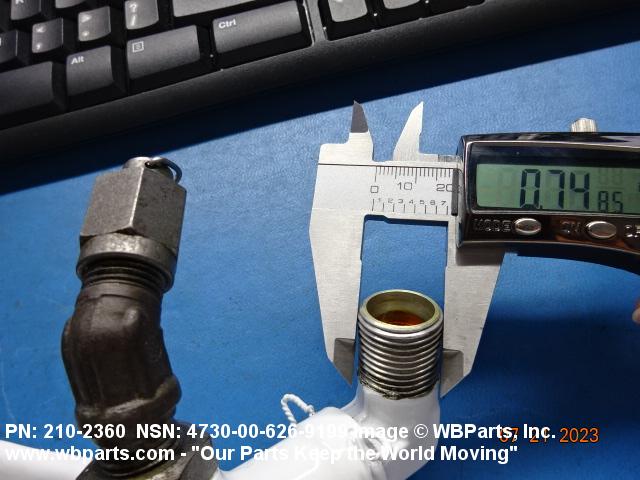

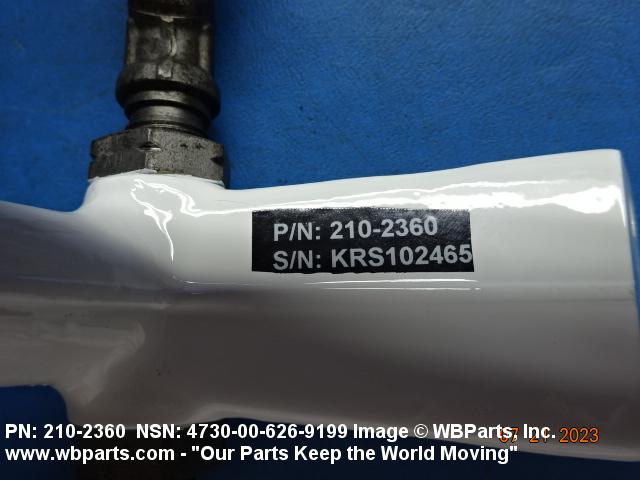

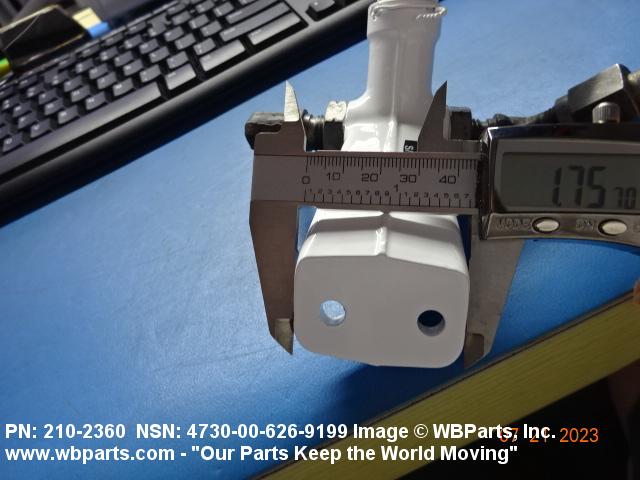

Drawings & Photos | NSN 4730-00-626-9199
Demand History | NSN 4730-00-626-9199
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 210-2360 | 2025-04-114 | 39 | DIBBS |
| HO-210-2360 | 2025-04-114 | 39 | DIBBS |
| 210-2360 | 2025-04-103 | 39 | DIBBS |
| HO-210-2360 | 2025-04-103 | 39 | DIBBS |
| 210-2360 | 2025-02-51 | 25 | DIBBS |
| HO-210-2360 | 2025-02-51 | 25 | DIBBS |
| 4730-00-626-9199 | 2024-09-254 | 10 | Malaysia |
| 210-2360 | 2023-04-96 | 41 | DIBBS |
| HO-210-2360 | 2023-04-96 | 41 | DIBBS |
| 210-2360 | 2022-11-331 | 47 | DIBBS |
| HO-210-2360 | 2022-11-331 | 47 | DIBBS |
| 210-2360 | 2022-11-317 | 47 | DIBBS |
| HO-210-2360 | 2022-11-317 | 47 | DIBBS |
| 210-2360 | 2022-01-18 | 51 | DIBBS |
| HO-210-2360 | 2022-01-18 | 51 | DIBBS |
| 210-2360 | 2022-01-04 | 51 | DIBBS |
| HO-210-2360 | 2022-01-04 | 51 | DIBBS |
| 2102360 | 2021-09-259 | 15 | ID |
| 210-2360 | 2020-10-294 | 51 | DIBBS |
| HO-210-2360 | 2020-10-294 | 51 | DIBBS |
| 2102360 | 2019-10-304 | 10 | ID |
| 4730-00-626-9199 | 2015-07-188 | 25 | DIBBS |
| 4730-00-626-9199 | 2015-04-110 | 33 | DIBBS |
| 4730-00-626-9199 | 2014-10-275 | 45 | DIBBS |
| 4730-00-626-9199 | 2014-05-132 | 20 | DIBBS |
| 4730-00-626-9199 | 2014-04-120 | 20 | DIBBS |
| 4730-00-626-9199 | 2014-03-80 | 42 | DIBBS |
| 4730-00-626-9199 | 2014-03-65 | 42 | DIBBS |
| 4730-00-626-9199 | 2013-07-183 | 1 | DIBBS-RFPs |
| 2102360 | 2013-06-156 | 12 | PH |
| 2102360 | 2013-06-155 | 12 | Philippines |
| 4730-00-626-9199 | 2013-03-69 | 20 | DIBBS |
| 4730-00-626-9199 | 2012-11-318 | 2 | us |
| 4730-00-626-9199 | 2012-08-244 | 42 | DIBBS |
| 4730-00-626-9199 | 2012-07-194 | 13 | DIBBS |
| 210-2360 | 2012-06-178 | 4 | PK |
| 4730-00-626-9199 | 2012-04-92 | 1 | Indonesia |
| 4730-00-626-9199 | 2011-08-231 | 9 | DIBBS |
| 4730-00-626-9199 | 2009-12-342 | 32 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-626-9199
Related Products | NSN 4730-00-626-9199
Technical Data | NSN 4730-00-626-9199
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 1800.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| STYLE DESIGNATOR | A138 DOUBLE JOINT, DOUBLE ELBOW DESIGN |
| CONNECTION TYPE | THREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B6A SWIVEL NUT, GASKET SEAL ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNS ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 18 ALL ENDS |
| THREAD PITCH DIAMETERS | 0.4050 TO 0.4104 INCHES ALL ENDS |
| LEG LENGTH | 0.680 INCHES MINIMUM AND 0.706 INCHES MAXIMUM ALL ENDS |
| UNION JOINT LOCATION | SECOND END |
| FURNISHED ITEMS AND QUANTITY | 1 MOUNTING BRACKET |
Restrictions/Controls & Freight Information | NSN 4730-00-626-9199
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-626-9199
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
