NSN 4730-00-629-0868 MS208194K, MS20819-4K, MS5153384S

Product Details | TUBE FITTING FLARED SLEEVE

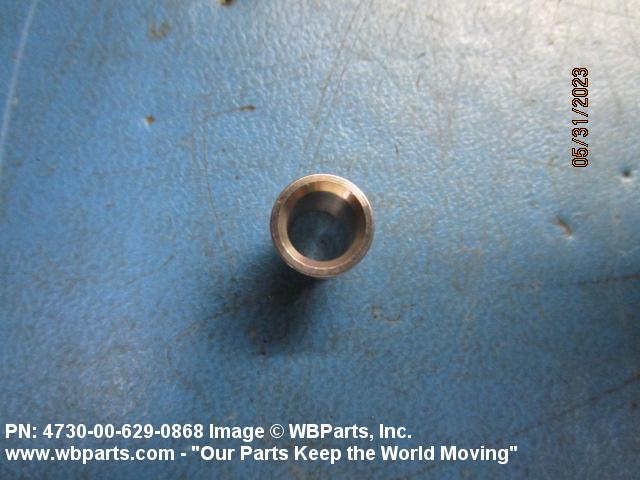

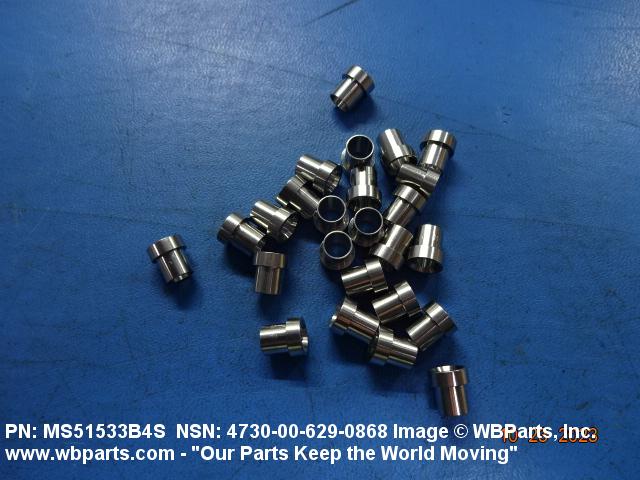

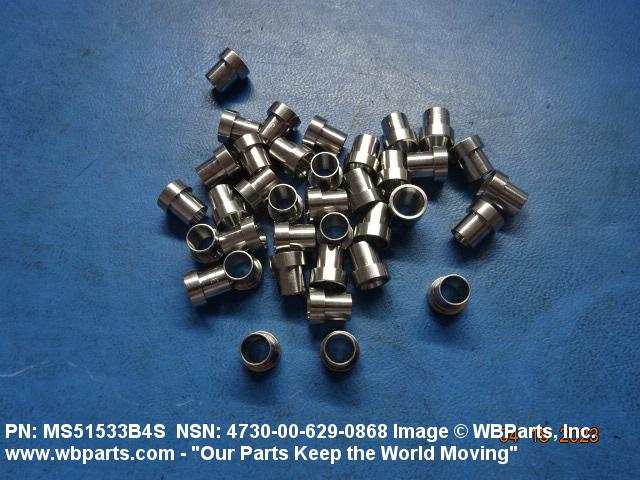

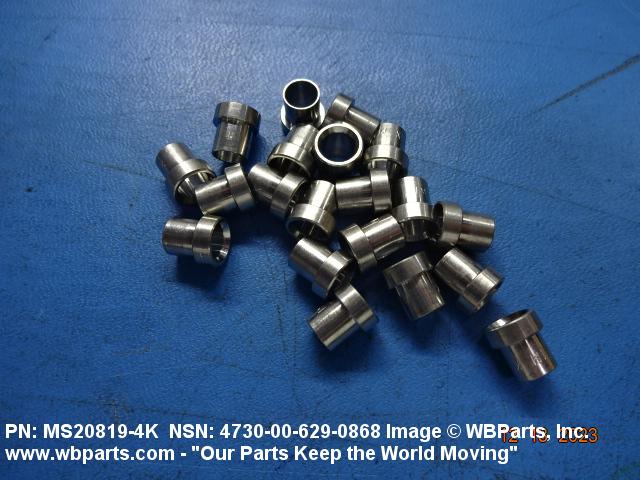

4730-00-629-0868 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.

Part Alternates: MS208194K, MS20819-4K, MS5153384S, MS51533B4S, MILF18866, MIL-F-18866, 4 070115S, 4070115S, 4TXSS, 4-TX-SS, 5177X4, 547823, 54782-3, 8194, 819-4, 8431421, J514, 4730-00-629-0868, 00-629-0868, 4730006290868, 006290868

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	15 MAR 1975	00-629-0868	18027 ( SLEEVE, FLARED, TUBE FITTING )

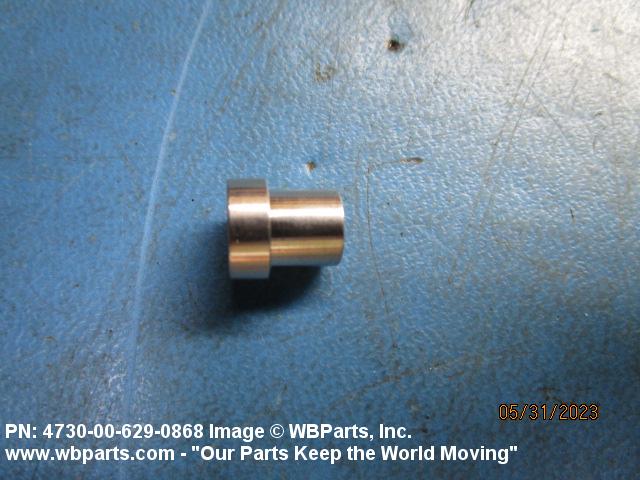

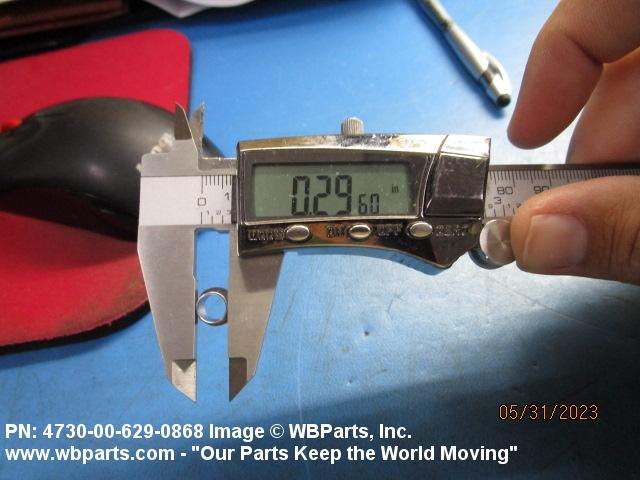

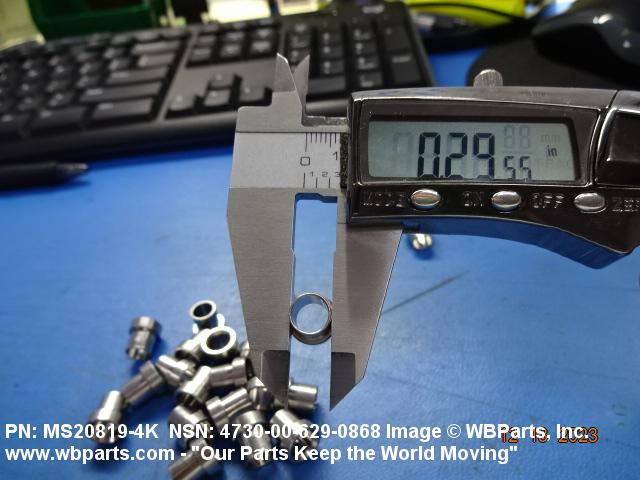

Drawings & Photos | NSN 4730-00-629-0868

Part Number	Request Date	QTY	Origin
4TXSS	2025-08-227	4	United States
4730-00-629-0868	2024-09-264	4	United States
MS51533B4S	2023-12-338	20	United States
MS51533B4S	2023-10-291	25	United States
MS51533B4S	2023-09-269	20	United States
MS51533B4S	2023-08-222	40	United States
4TXSS	2023-06-159	4	United States
MS51533B4S	2023-05-145	25	United States
MS51533B4S	2023-04-118	10	United States
MS51533B4S	2023-04-102	37	United States
MS51533B4S	2023-04-93	200	US
4730-00-629-0868	2023-02-33	2626	DIBBS
MS51533B4S	2023-01-25	2	United States
4730-00-629-0868	2022-11-332	8981	DIBBS
4730-00-629-0868	2022-11-320	8981	DIBBS
MS51533B4S	2022-08-217	1	United States
MS51533B4S	2022-02-46	5	United States
4TXSS	2021-10-279	30	United States
4TXSS	2021-07-190	4	United States
4730-00-629-0868	2021-01-12	28	United States
4TXSS	2020-11-329	2	US
4730-00-629-0868	2019-03-72	1300	DIBBS
MS51533B4S	2018-11-317	2	US
4730-00-629-0868	2015-08-235	5138	DIBBS
4730-00-629-0868	2015-06-152	3639	DIBBS
J514	2015-02-48	1	us
MS51533B4S	2014-05-125	2	United States
MS51533B4S	2012-08-240	44	US
MS208194K	2011-09-249	1	US
MS208194K	2011-05-145	82	US
4730-00-629-0868	2010-03-64	2	Canada
MS51533B4S	2010-03-62	12	US
J514	2010-02-47	20	us
MS51533B4S	2009-04-104	92	US
4730-00-629-0868	2009-04-93	100	Turkey
4730-00-629-0868	2009-04-93	100	Turkey
4730-00-629-0868	2009-04-93	100	Turkey
4730-00-629-0868	2008-03-81	10	United States
MS51533B4S	2007-09-257	625	US
4730-00-629-0868	2006-08-222	150	Taiwan

Cross Reference | NSN 4730-00-629-0868

Part Number	Cage Code	Manufacturer
4 070115S	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
4-TX-SS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
4-TX-SS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
4TXSS	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
5177X4	79470	DANA CORP WEATHERHEAD DIV
54782-3	94833	KECO INDUSTRIES INC.
819-4	54214	BOWES MFG INC
8431421	98752	WARNER ROBINS AIR LOGISTICS CENTER
J514	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-18866	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS20819-4K	00624	EATON CORPORATION DBA AEROSPACE DIV
MS20819-4K	14397	FABER ENTERPRISES, INC.
MS20819-4K	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
MS20819-4K	22995	CROWN FITTING CO INC
MS20819-4K	34724	ACRA AEROSPACE INC
MS20819-4K	71563	COLLINS ENGINEERING CORP
MS5153384S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51533B4S	16236	DLA LAND AND MARITIME
MS51533B4S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-629-0868

Compare

Related Products | NSN 4730-00-629-0868

4730-00-629-0922, 4730-00-629-1037, 4730-00-629-1076, 4730-00-629-1081, 4730-00-629-1103

Technical Data | NSN 4730-00-629-0868

Characteristic	Specifications
MATERIAL	STEEL, CORROSION RESISTING
SURFACE TREATMENT	PASSIVATED, QQ-P-35, TYPE 2
METALLIC HARDNESS RATING	70.0 MINIMUM ROCKWELL B AND 95.0 MAXIMUM ROCKWELL B
CASEHARDENING INDICATOR	CASEHARDENED

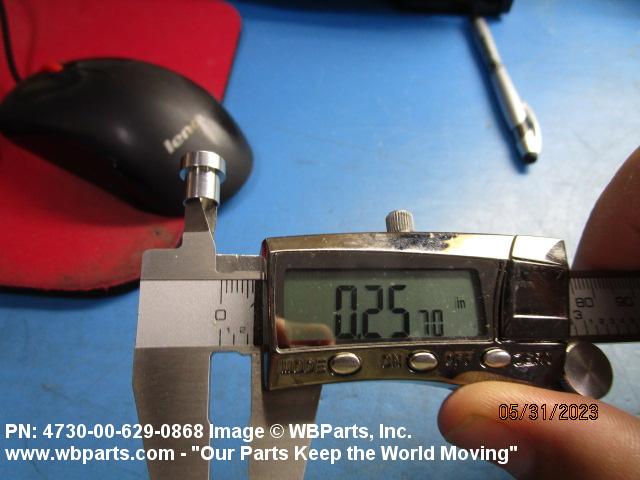

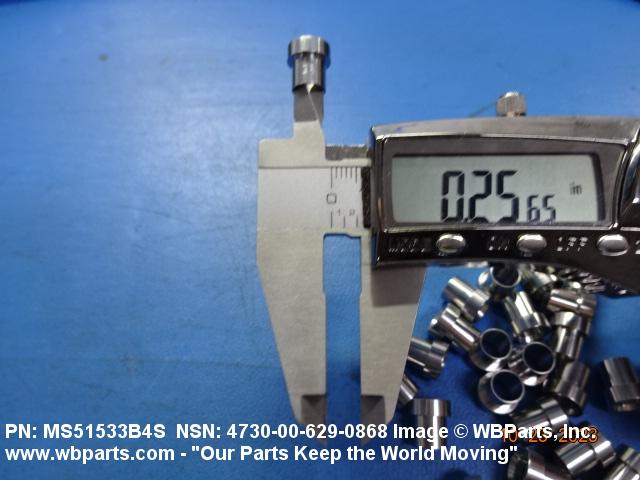

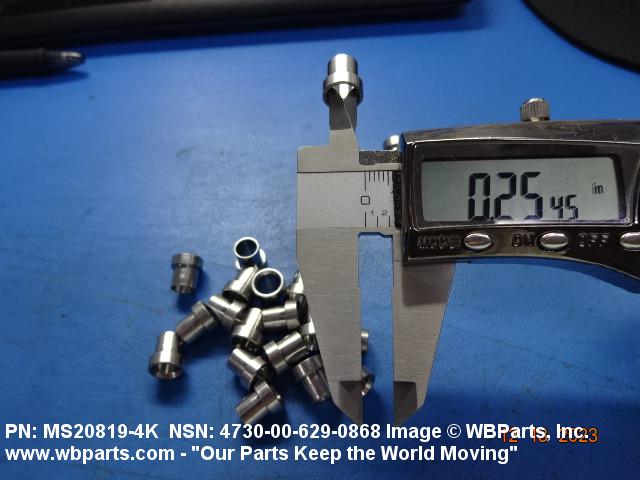

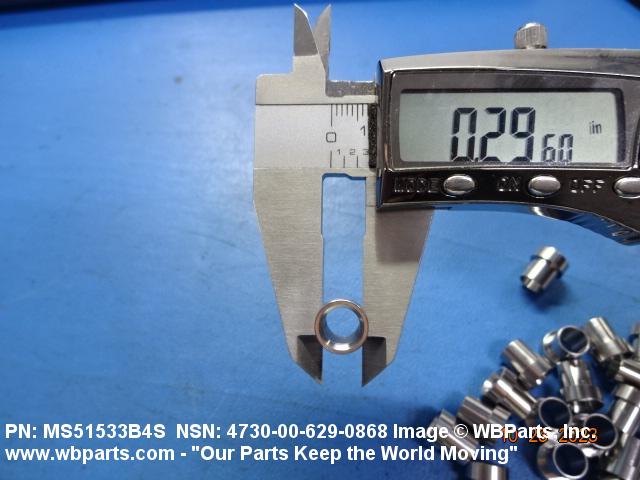

HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED	0.250 INCHES NOMINAL
STYLE DESIGNATOR	M1 SLEEVE

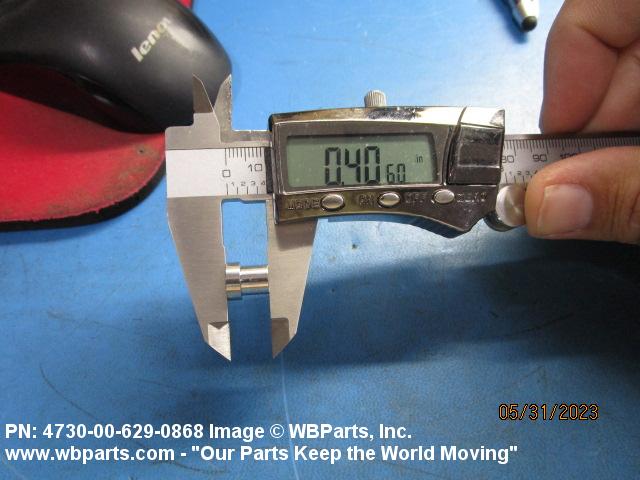

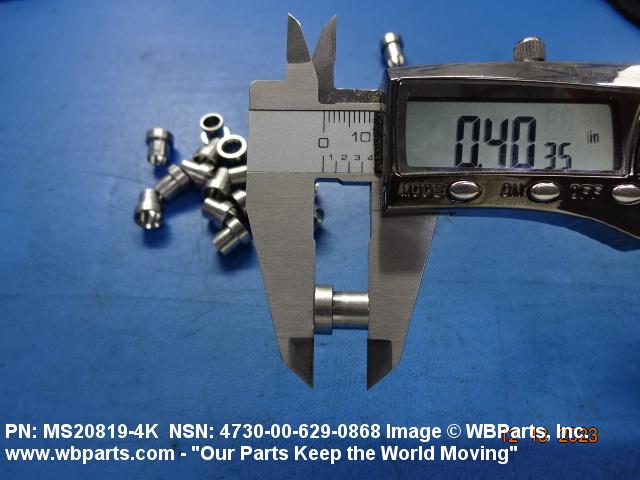

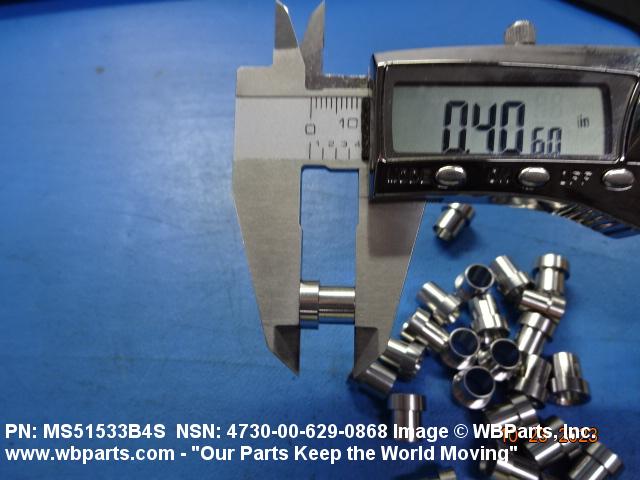

OVERALL LENGTH	0.410 INCHES NOMINAL

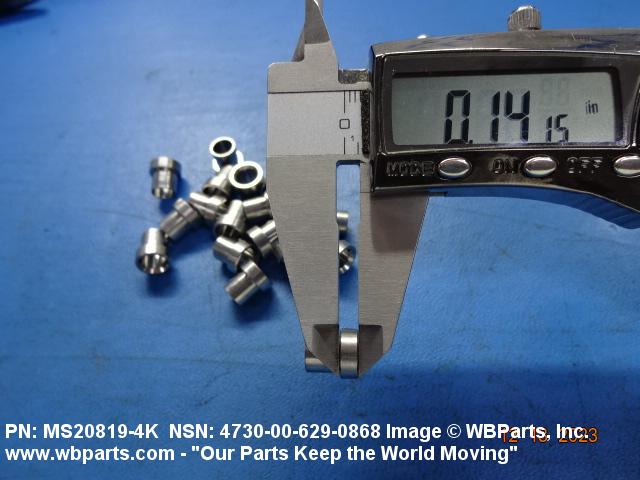

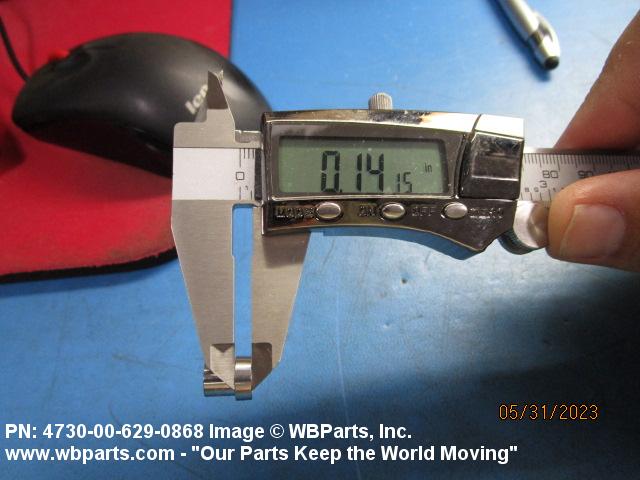

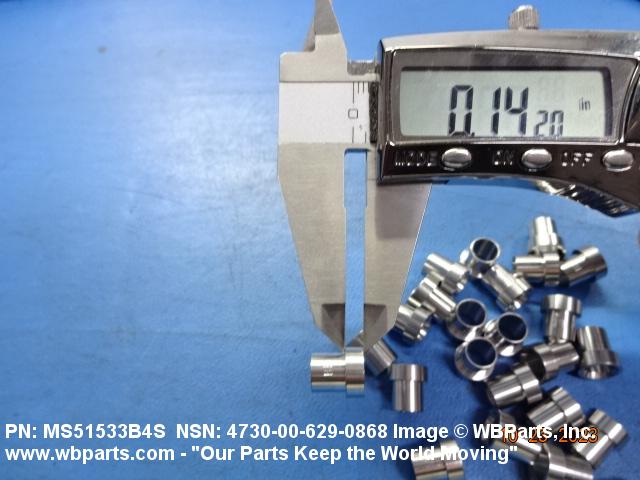

FLANGE WIDTH	0.140 INCHES NOMINAL

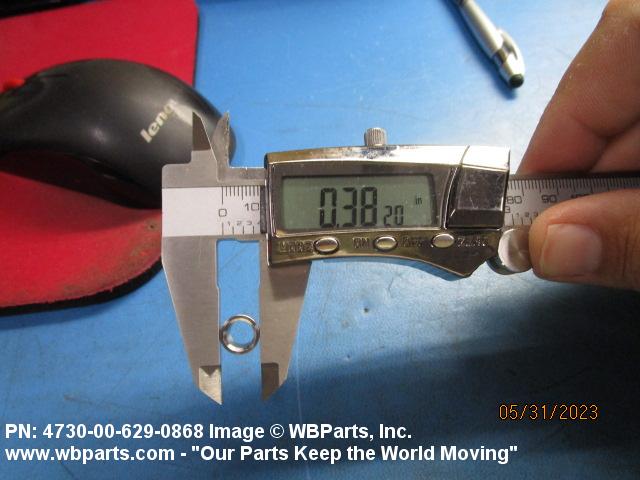

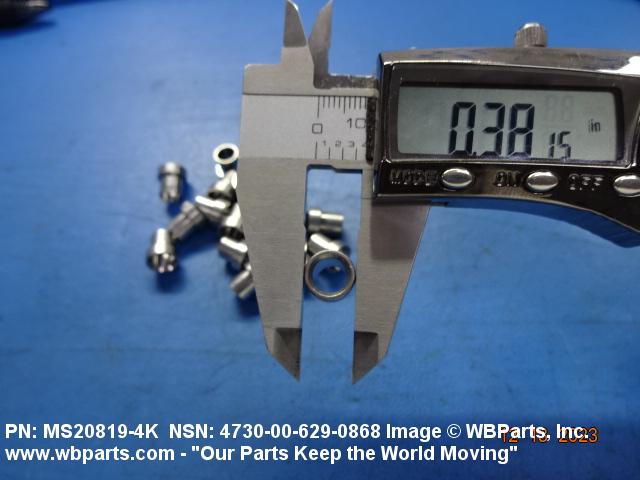

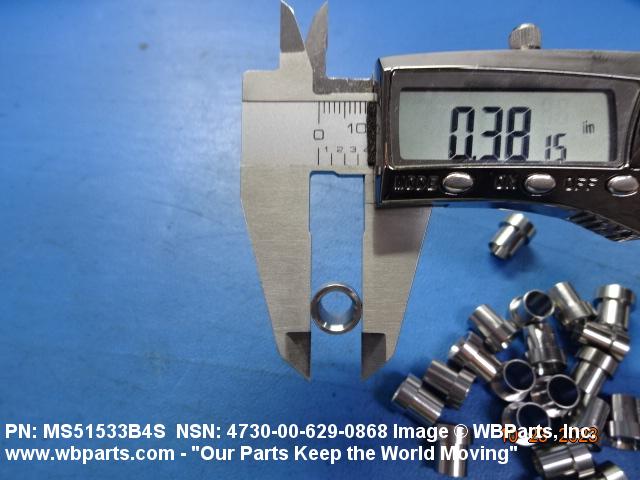

FLANGE OUTSIDE DIAMETER	0.383 INCHES NOMINAL
