NSN 4730-00-632-0797 1165-1-3532, 00-632-0797, 116513532
Product Details | FLUID FLOW RESTRICTOR UNIT
4730-00-632-0797 An assembly consisting of an orifice in a fixed plate, disk, or tube with screens or filters on one or both sides, depending on the direction of filtered flow. See RESTRICTOR, FLUID FLOW.
Part Alternates: 1165-1-3532, 4730-00-632-0797, 00-632-0797, 4730006320797, 116513532, 006320797
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-632-0797 | 20933 ( RESTRICTOR UNIT, FLUID FLOW ) |

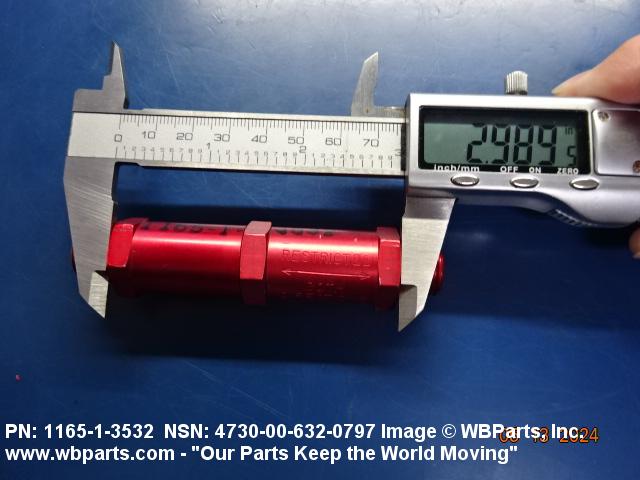

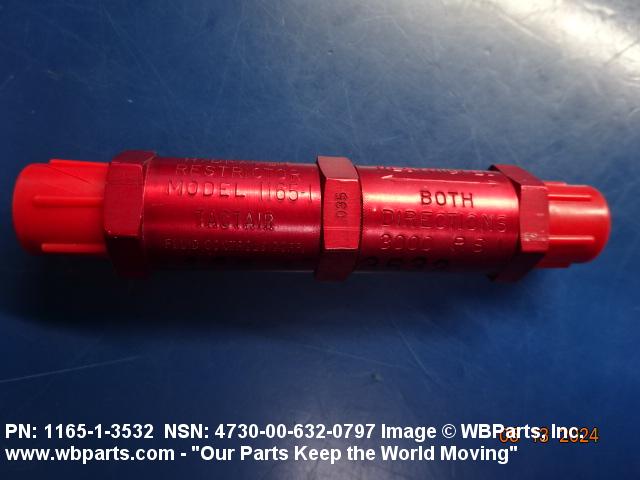

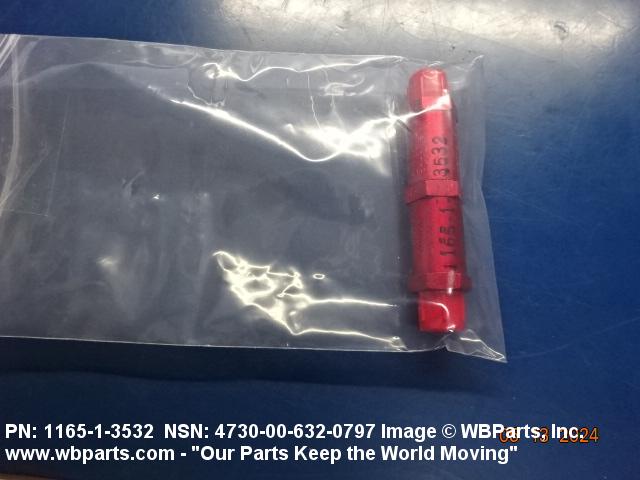

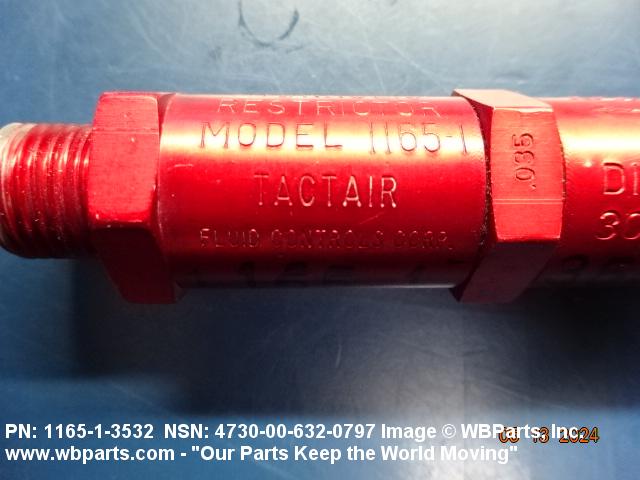

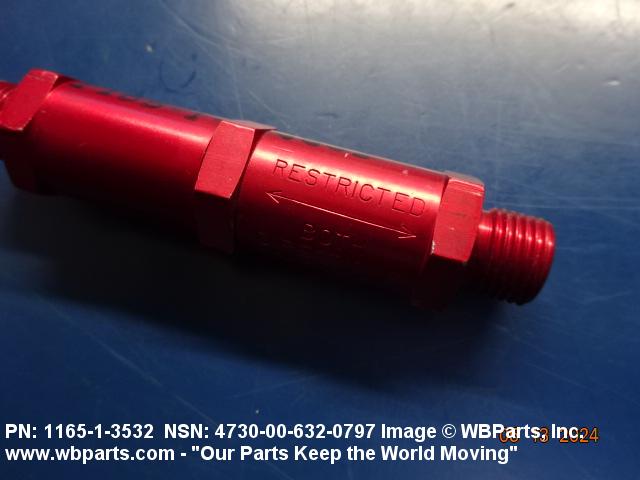

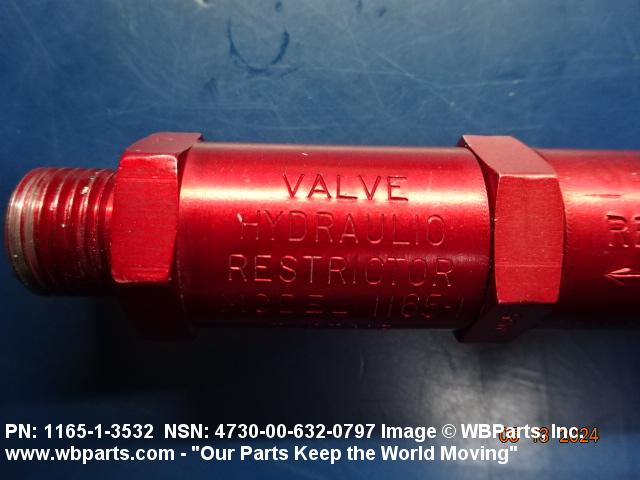

Drawings & Photos | NSN 4730-00-632-0797
Demand History | NSN 4730-00-632-0797
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1165-1-3532 | 2025-11-310 | 2 | DIBBS |
| 4730-00-632-0797 | 2024-05-129 | 1 | United States |
| 4730-00-632-0797 | 2024-05-129 | 1 | United States |
| 4730-00-632-0797 | 2024-02-38 | 1 | United States |
| 1165-1-3532 | 2022-03-90 | 5 | DIBBS |
| 1165-1-3532 | 2021-11-319 | 1 | DIBBS |
| 1165-1-3532 | 2020-10-294 | 1 | DIBBS |
| 4730-00-632-0797 | 2019-12-339 | 1 | US |
| 1165-1-3532 | 2019-10-290 | 1 | DIBBS |
| 1165-1-3532 | 2019-10-274 | 1 | DIBBS |
| 4730-00-632-0797 | 2019-03-65 | 1 | CL |
| 116513532 | 2019-03-64 | 1 | US |
| 4730-00-632-0797 | 2019-01-18 | 1 | US |
| 4730-00-632-0797 | 2017-06-159 | 3 | DIBBS |
| 4730-00-632-0797 | 2015-10-274 | 3 | DIBBS |
| 4730-00-632-0797 | 2015-09-263 | 3 | DIBBS |
| 4730-00-632-0797 | 2011-07-190 | 4 | DIBBS |
| 4730-00-632-0797 | 2011-04-111 | 11 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-632-0797
Technical Data | NSN 4730-00-632-0797
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | STRAIGHT |

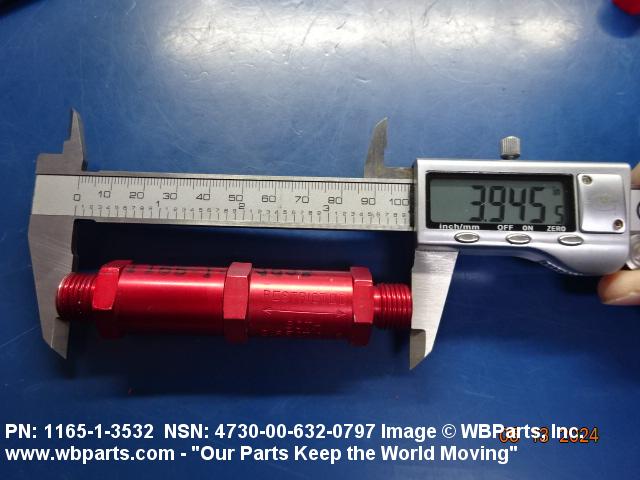

| OVERALL LENGTH | 3.931 INCHES NOMINAL |

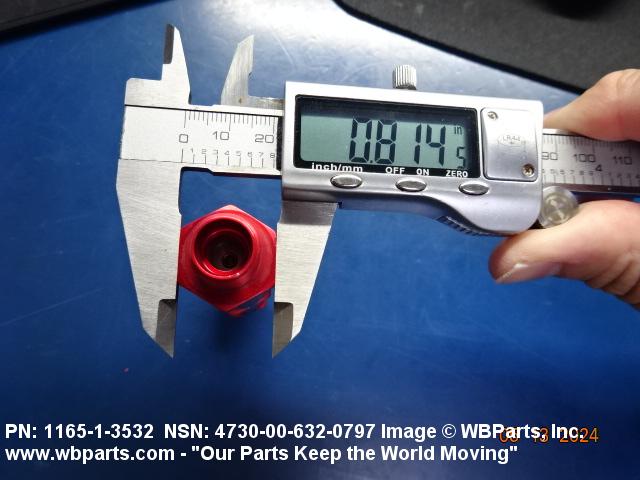

| DIAMETER | 0.812 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.813 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM ALLOY |
| PACKING MATERIAL | RUBBER, SYNTHETIC |
| STRAINER TYPE AND QUANTITY | 2 FILTER |
| FILTER MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | ANODIZED |
| VALVE SIZE | 0.375 INCHES |

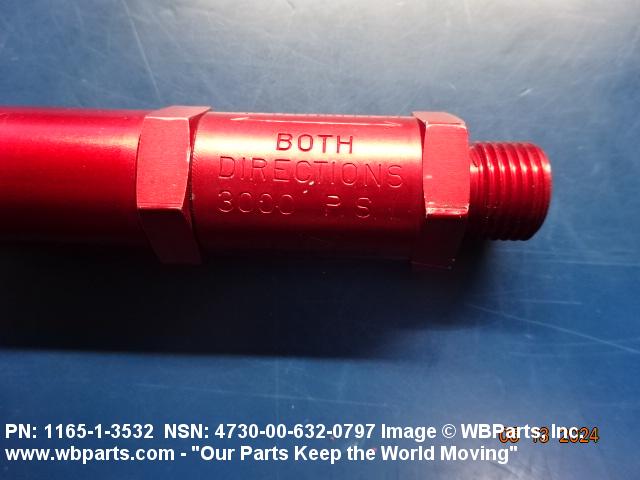

| PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH NOMINAL |
| OPERATING TEMP RANGE | -65.0 TO 275.0 DEG FAHRENHEIT |
| END CONNECTION SIMILARITY | IDENTICAL |
| END CONNECTION TYPE | THREADED MALE, COMPRESSION |
| COMPRESSION TYPE | ERMETO |
| THREAD SIZE DESIGNATOR | 9/16-20 |
| THREAD SERIES | UNF OR NF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| END CONNECTION COMPONENT TYPE AND SIZE FOR WHICH DESIGNED | 3/8 IN. OD TUBE |
Restrictions/Controls & Freight Information | NSN 4730-00-632-0797
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
