NSN 4730-00-632-9649 575C251P1, 00-632-9649, 006329649
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-632-9649 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 575C251P1, 4730-00-632-9649, 00-632-9649, 4730006329649, 006329649
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-632-9649 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-00-632-9649
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-632-9649
Technical Data | NSN 4730-00-632-9649
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED |

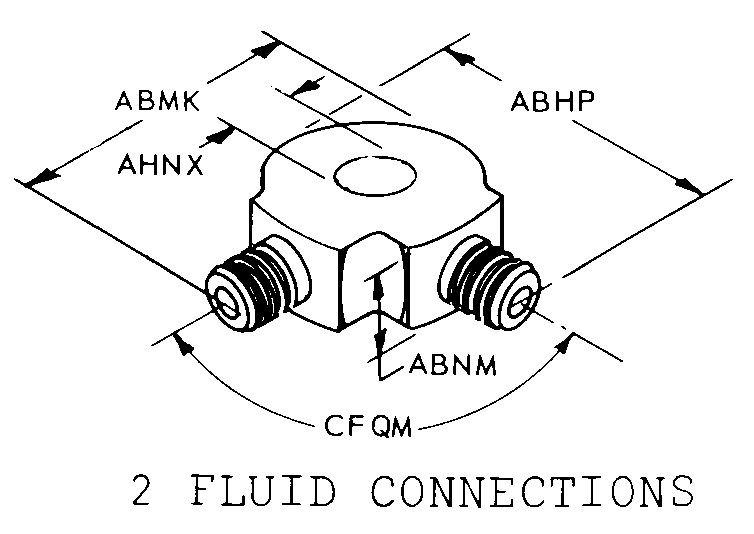

| STYLE DESIGNATOR | D41 2 FLUID CONNECTIONS |
| BOLT HOLE DIAMETER | 0.844 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 2 |
| CONNECTION STYLE | G19 FLARED |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 1/4 IN. OD TUBE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 7/16 IN.-20 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT RADIUS | 0.317 INCHES NOMINAL |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 575C251P1 |
Restrictions/Controls & Freight Information | NSN 4730-00-632-9649
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
