NSN 4730-00-649-9100 MS2702811, MS27028-11, MCD4124ITEM10
Product Details | QUICK DISCONNECT CAP
4730-00-649-9100 A fluid line fitting having an internal quick disconnect feature, designed to fit over a fitting with an external quick disconnect feature, to block the flow of fluid.
Part Alternates: MS2702811, MS27028-11, MCD4124ITEM10, MCD4124ITEM101114917, MCD4124ITEM10-11-14-9-17, A-A-59326/10, AA5932610, AA59326IX16, C12, 1711K2, 200DCAL, 200-DC-AL, 2DC, 51412912, 5-14-129-12, 634B2, 634B2INAL, 634B2IN-AL, 8611307147, 8611307-147, 4730-00-649-9100, 00-649-9100, 4730006499100, 006499100
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-649-9100 | 29760 ( CAP, QUICK DISCONNECT ) |

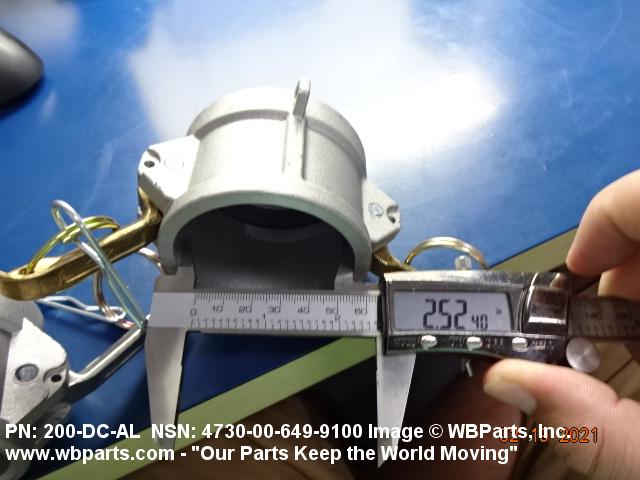

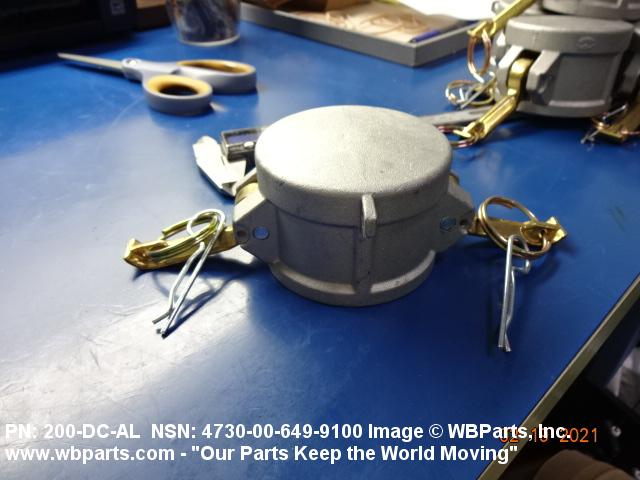

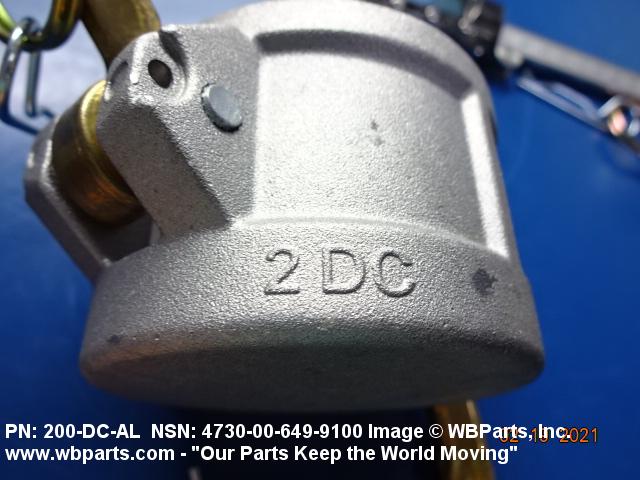

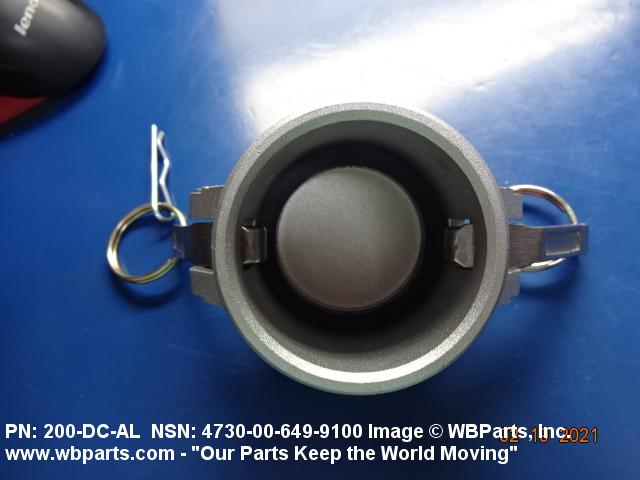

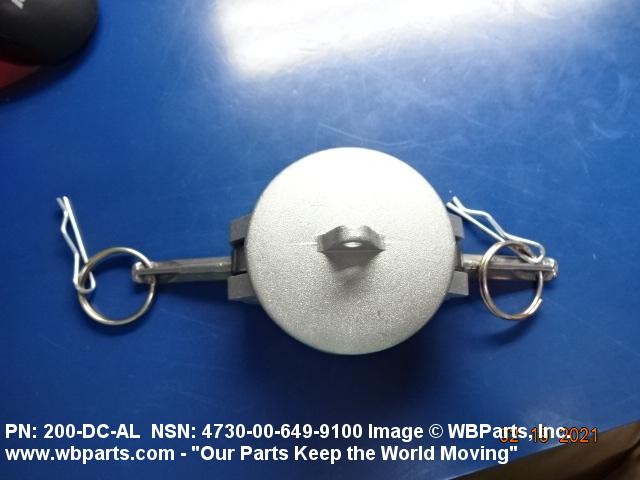

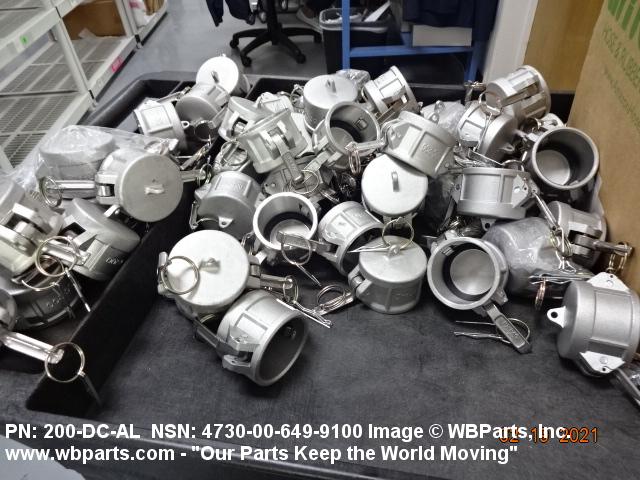

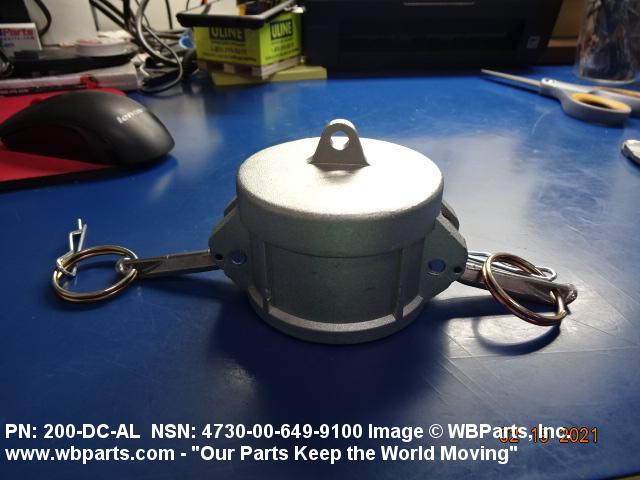

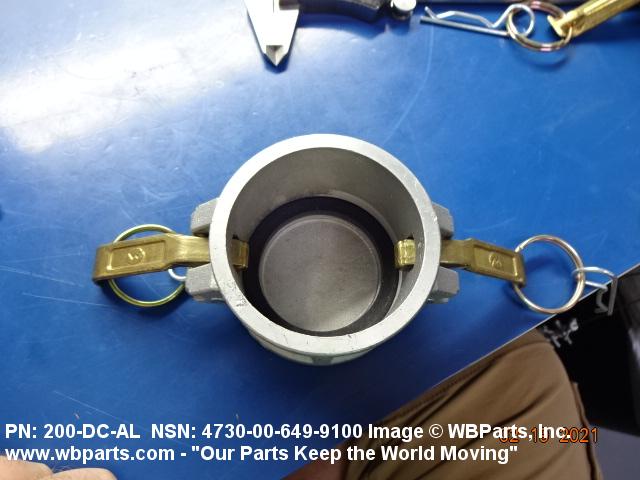

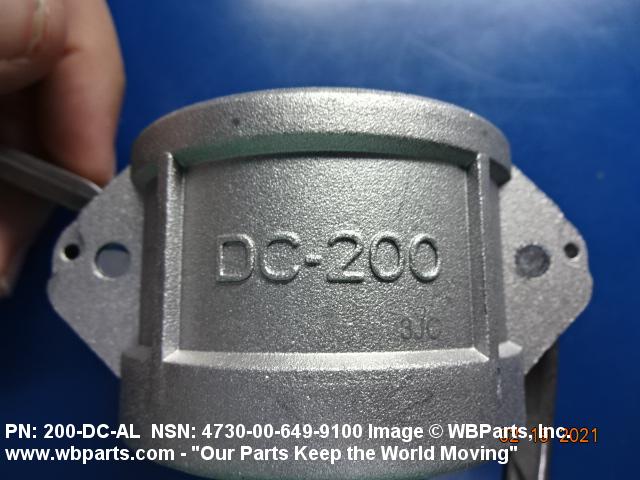

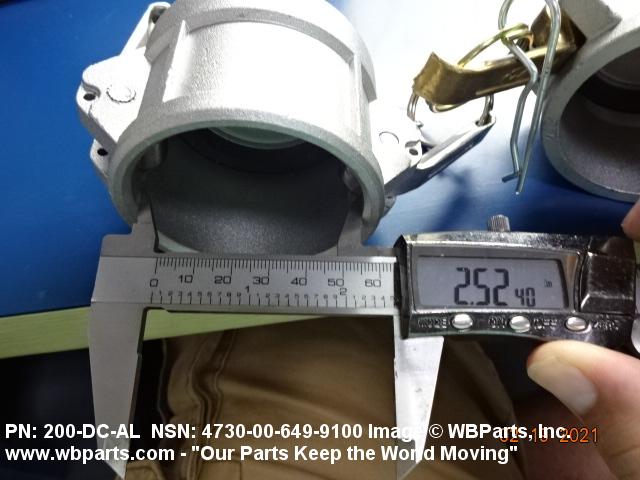

Drawings & Photos | NSN 4730-00-649-9100
Demand History | NSN 4730-00-649-9100
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-649-9100 | 2025-07-191 | 3 | US |
| C12 | 2025-07-183 | 10 | United States |
| C12 | 2025-07-183 | 10 | United States |
| 4730-00-649-9100 | 2023-10-274 | 1044 | DIBBS |
| 4730-00-649-9100 | 2021-01-07 | 74 | United States |
| 4730-00-649-9100 | 2020-12-357 | 202 | United States |
| 4730-00-649-9100 | 2020-03-62 | 1 | DIBBS-RFPs |
| 4730-00-649-9100 | 2017-07-199 | 2 | US |
| 4730-00-649-9100 | 2015-08-230 | 998 | DIBBS |
| 4730-00-649-9100 | 2013-02-32 | 1161 | DIBBS |
| 4730-00-649-9100 | 2012-12-355 | 0 | DIBBS |
| 4730-00-649-9100 | 2010-10-302 | 928 | DIBBS |
| 4730-00-649-9100 | 2009-09-261 | 123 | DIBBS |
| 4730-00-649-9100 | 2009-09-261 | 564 | DIBBS |
| 4730-00-649-9100 | 2009-03-86 | 1912 | DIBBS |
Cross Reference | NSN 4730-00-649-9100
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03619906 | ZD484 | J BLACKWOOD & SON LTD |
| 1711K2 | 81718 | OPW FUELING COMPONENTS INC. DIV OPW FUELING COMPONENTS |
| 200-DC-AL | 24869 | DVCC INC |
| 200-DC-AL | 72661 | DIXON VALVE & COUPLING COMPANY DIV DIXON POWHATAN |
| 2DC | 80691 | EVER TITE COUPLING CO INC |
| 5-14-129-12 | 82995 | RENOWN STOVE CO |
| 634B2 | 81718 | OPW FUELING COMPONENTS INC. DIV OPW FUELING COMPONENTS |
| 634B2 | 9H113 | DOVER RESOURCES INC DBA OPW ENGINEERED SYSTEMS |
| 634B2IN-AL | 81718 | OPW FUELING COMPONENTS INC. DIV OPW FUELING COMPONENTS |
| 8611307-147 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| A-A-59326/10 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59326IX16 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| C12 | 80691 | EVER TITE COUPLING CO INC |
| MCD4124ITEM10 | 87990 | QUARTERMASTER GENERAL |
| MCD4124ITEM10-11-14-9-17 | 87990 | QUARTERMASTER GENERAL |
| MS27028-11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-649-9100
Technical Data | NSN 4730-00-649-9100
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY 356 OR ALUMINUM ALLOY D712.0 |
| BODY MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-601,T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-601,T5 FED SPEC 2ND MATERIAL RESPONSE |
| BODY SURFACE TREATMENT | ANODIZE |
| BODY SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY2,CL1 MIL SPEC SINGLE TREATMENT RESPONSE |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 150.0 POUNDS PER SQUARE INCH WATER 150.0 POUNDS PER SQUARE INCH OIL 150.0 POUNDS PER SQUARE INCH GAS |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | NOT RATED |
| OVERALL LENGTH | 2.125 INCHES NOMINAL |
| QUICK DISCONNECT METHOD | CAM-LOCKING ALL ENDS |
| QUICK DISCONNECT NOMINAL SIZE | 2.000 INCHES ALL ENDS |
| SPECIFICATION/STANDARD DATA | 96906-MS27028 GOVERNMENT STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS |
| III END ITEM IDENTIFICATION | A/S32R-11 REFUELING TRUCK |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59326/10 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA59326IX16 |
Restrictions/Controls & Freight Information | NSN 4730-00-649-9100
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
